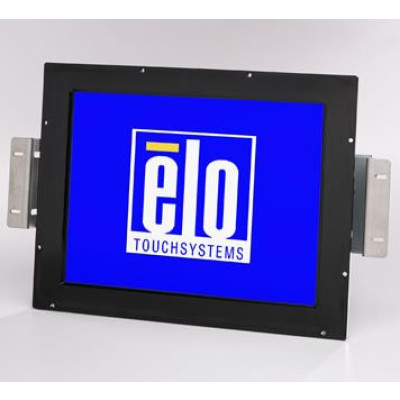

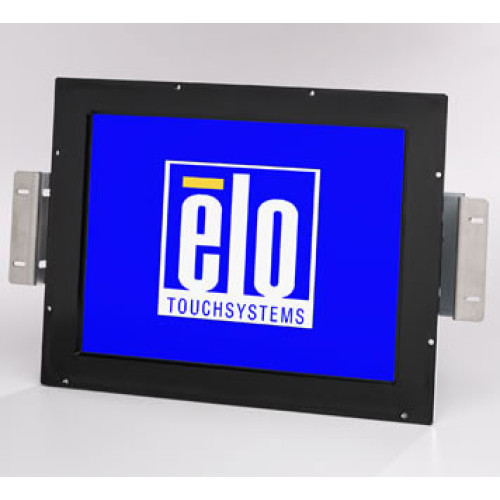

Photo of Elo 1547L
Elo logo

Elo 1547L Touch screen Monitor

The Elo 1547L has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

The Elo 1547L ThruTouch model is optimized to operate through customer supplied non-metallic materials, such as a store window or vandal-resistant materials up to 18 mm thick. This allows the 1547L to have unsurpassed resistance to impacts, scratches and vandalism commonly found in public-access applications. Oversized glass may also be used to create a true flat front surface, eliminating the recessed touch surface and bezel typically found in other systems, which can create a trap for dirt and liquids. This makes the Elo 1547L ideal for ticketing machines and other outdoor systems as well as tabletop and bartop applications. Furthermore, the sensing technology is unaffected by moisture, heat, rain, snow and ice, operates even with gloves, and is completely unaffected by spills and dirt or harsh cleaning fluids.
1547L Options
Part # DescriptionAvailabilityPriceOrder
F60749-000 Entuitive 1547L, 15" LCD Rear Mount Touchmonitor with Projected Capacitive Touch Technology, DirectTouch Touch Technology, Serial Touch Interface and Anti-glare Surface Treatment. Color: Black Check Availability Call for Details
F10657-000 Entuitive 1547L, 15" LCD Rear Mount, CarrollTouch Touch Technology, USB Interface and Anti-glare Surface Treatment. Color: Dark gray Check Availability Call for Details
E958504 This part is replaced by E431187.
Entuitive 1547L, 15" LCD rear mount touchmonitor, IntelliTouch (surface wave) touch technology, Dual Serial/USB touch interface, Anti-glare surface treatment
See Replacement Call for Details
E521480 Entuitive 1547L, 15" LCD Rear Mount Touchmonitor (AccuTouch (resistive) Touch Technology, Dual Serial/USB Touch Interface, and Anti-glare Surface Treatment) - Color: Dark gray Check Availability Call for Details
E331332 Entuitive 1547L, 1547L REARMOUNT, SECURETOUCH USB/SERIAL, Gray BEZEL Check Availability Call for Details
E073151 Entuitive 1547L, 15" LCD rear mount touchmonitor, CarrollTouch technology, Serial touch interface, Plastic, Anti-glare surface treatment, Color: Dark gray Check Availability Call for Details
C80308-000 This part is replaced by E331332.
Entuitive 1547L, 15" LCD Rear Mount Touchmonitor, SecureTouch Touch Technology, Serial Touch Interface and Anti-glare Surface Treatment. Color: Dark gray
See Replacement Call for Details
C32978-000 Entuitive 1547L, 15" LCD Rear Mount Touchmonitor, AccuTouch (resistive) Touch Technology, USB Interface and Anti-glare Surface Treatment. Color: Dark gray Check Availability Call for Details
A71384-000 Entuitive 1547L, 15" LCD Rear Mount Touchmonitor with Projected Capacitive Touch Technology, ThruTouch Touch Technology, Serial Touch Interface and Anti-glare Surface Treatment Check Availability Call for Details
A65349-000 Entuitive 1547L, 15" LCD rear mount touchmonitor, SecureTouch 0.25 - 6 mm touch technology, USB touch interface, Anti-glare surface treatment, Color: Dark gray Check Availability Call for Details
A65349 Entuitive 1547L, 15" LCD Rear Mount Touchmonitor with SecureTouch 0.25 (6 mm) Touch Technology, Dual Serial/USB Interface and Anti-glare Surface Treatment Check Availability Call for Details
823428-000 Entuitive 1547L, 15" LCD Rear Mount Touchmonitor, Modular Kiosk, IntelliTouch (surface wave) Touch Technology, Serial Interface and Anti-glare Surface Treatment Check Availability Call for Details
576426-USB Entuitive 1547L, 15" LCD Rear-Mount Touchmonitor, IntelliTouch, USB interface, Color: Black Check Availability Call for Details
576426-000 Entuitive 1547L, 15" LCD Rear Mount Touchmonitor, IntelliTouch (surface wave) Touch Technology, USB Interface and Anti-glare Surface Treatment. Color: Dark gray Check Availability Call for Details
516452-000 Entuitive 1547L, 15" LCD Rear Mount, Modular Kiosk, AccuTouch (resistive) Touch Technology, Serial Interface and Anti-glare Surface Treatment. Color: Dark gray Check Availability Call for Details
387888-000 Entuitive 1547L, 15" LCD Rear Mount, Modular Kiosk, CarrollTouch, Serial Interface, Color: Dark gray Check Availability Call for Details

Elo 1547L Details

1547L 15" LCD Rear-Mount Touchmonitor (3000 Series)

Features

  • Long lasting product cycle—enclosure controlled by Elo specifications
  • Panel upgrades possible to the model in the future without external changes
  • Integrated precision minibezel with watertight 0.5 mm seal
  • Multiple mounting options including rear-mount, VESA mount, and front/panel-mount bezels or 19" rack-mount bezel
  • Choice of touch technologies: AccuTouch Five-Wire Resistive, CarrollTouch Infrared Technology, IntelliTouch Surface Wave, Projected Capacitive, impact resistant SecureTouch Surface Wave, or Surface Capacitive.
  • Serial or USB touch interface
  • Multilingual remote on-screen display (OSD)
  • Internal power supply
  • Worldwide agency approvals
  • 3-D electronic design files available

Specifications

Model 1547L
Series 3000
Availability Worldwide
Case/Bezel color Black
Display Size: 15" diagonal
Type: Active matrix TFT LCD
Aspect ratio: 4 x 3
Useful screen area Horizontal: 11.9" (304 mm)
Vertical: 8.9" (228 mm)
Monitor dimensions
(dimensions shown are with horizontal mounting bracket)

Projected Capacitive/ThruTouch Width: 18.1" (460 mm)
Projected Capacitive/ThruTouch Height: 11.5" (293 mm)
Projected Capacitive/ThruTouch Depth: 2.52" (64 mm)

Other monitors width: 18.1" (460 mm)
Other monitors height: 11.6" (296 mm)
Other monitors depth: 2.83" (72 mm)
Optimal (native) resolution 1024 x 768 at 60, 70, or 75 Hz
Other supported resolutions 1024 x 768 at 65 Hz (Sun)
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72, or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 (Mac), 72 or 75 Hz
Colors 16 million
Brightness
LCD panel
350 cd/m2 (typical)
Brightness
LCD panel with touchscreen
AccuTouch: 287 cd/m2 (typical)
CarrollTouch: 322 cd/m2 (typical)
IntelliTouch: 322 cd/m2 (typical)
Projected Capacitive/DirectTouch: 298 cd/m2 (typical)
Projected Capacitive/ThruTouch: 315 cd/m2 (typical) (brightness will vary with different materials/thickness that are used to cover the touchscreen)
SecureTouch: 315 cd/m2 (typical)
Surface capacitive: 276 cd/m2 (typical)
Response time 25 msec (typical)
Viewing angle
(typical, from center)
Horizontal (left/right): ±75° or 150° total
Vertical (up/down): 75/50° or 125° total
Contrast ratio 500:1
Input video format Analog (no proprietary video card needed)
Input video signal connector Mini D-Sub 15-Pin VGA type
Input frequency Horizontal: 31.5–60 kHz
Vertical: 56–75 Hz
Power supply Type: Internal power supply
Input (line) voltage: 100–240 VAC, 50–60 Hz
Power dissipation 22 W (typical)
Temperature Operating: 0°C to 50°C
Storage: -30°C to 60°C
Humidity Operating: 20%–80%
Storage: 5%–95%
noncondensing
Weight with all options
(approx.)

Projected Capacitive/DirectTouch Actual: 12.1 lb (5.5 kg)
Projected Capacitive/DirectTouch Shipping: 18.7 lb (8.5 kg)

Projected Capacitive/ThruTouch Actual: 11.6 lb (5.3 kg)
Projected Capacitive/ThruTouch Shipping
: 18.2 lb (8.3 kg)

Other monitors actual: 10.85 lb (4.92 kg)
Other monitors shipping: 16.90 lb (7.66 kg)
Warranty Projected Capacitive monitors: 1 year
Other monitors: 3 years
Backlight lamp life: min 40,000 hours to half brightness
Agency approvals UL/cUL, TÜV-Bauart, CE, FCC/IC/VCCI/C-Tick Class B
On-screen display (OSD) Remote OSD with 1.8m cable
User's controls Remote OSD: Auto/Sel, up, down, menu
OSD: contrast, brightness, H/V position, color, temperature, clock, phase, recall, OSD time, language (English, German, Spanish, Japanese, French)
OSD disable/enable: power, volume, and/or OSD menu
Mounting options 75 mm VESA mount
Panel cut-out
Mounting brackets included
19" rack-mount option (not available for Projected Capacitive/ThruTouch)
Panel-mount option (not available for Projected Capacitive)
The Elo 1547L is also known as the Elo Touch Systems 1547L .
