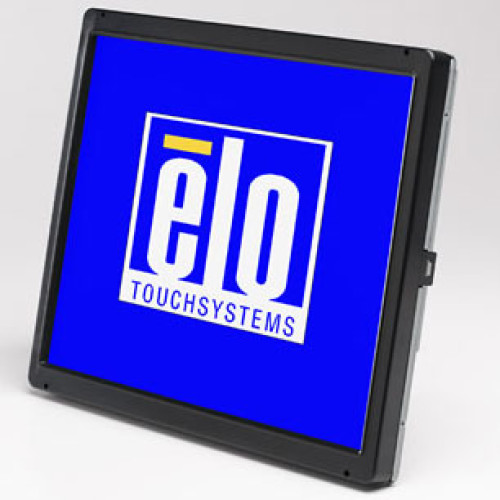

Photo of Elo 1746L
Elo logo

Elo 1746L Touch screen Monitor

The Elo 1746L has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

The Elo 1746L features an integrated precision minibezel with a watertight 0.5 mm seal. Elo 1746L uses IntelliTouch Surface Wave touch technology with both serial and USB touch interface, and features a multilingual remote on-screen display (OSD). Mounting options include rear-mount and VESA mount.
Questions?
1-888-875-7170
We respond to every email
1746L Options
Part # DescriptionAvailabilityPriceOrder
A36843-000 1746L, 17" IntelliTouch (surface wave), LCD Rear-Mount Touchmonitor, Dual Serial/USB Interface, Anti-glare Surface Treatment, Color: Black Check Availability Call for Details

Accessories

Part # DescriptionAvailabilityPriceOrder
E005277 Accessories, Power brick (12V, 4.16A, 50W, US) for the 1517L, 1739L, 1729L, 1939L, and 2244L. Ships Free Today $28.93
E177037 Magnetic Strip Reader for 1515L touchsystems, Gray, Field Installable Ships Free Today $59.42
D82064-000 Black, soft tip stylus pen for Intellitouch monitors Ships Free Today $22.62
E245090 Accessories, Replacement Stand For 1515L, Dark gray Ships Free Today $47.85
E860319 Front Mount Bezel (Converts Rear to Front Mount) for the 1739L Ships Free Today $82.56
E163604 Front Mount Bezel, Converts Rear Mount to Front Mount, for the 1939L Ships Free Today $93.53
E252977 1529L Accessories, Short stand for 1529L Ships Free Today $46.80
E147211 "L" brackets for 1739L and 1939L Ships Free Today $16.90
E579652 Rack Mount Bracket, 19 inch Ships Free Today $82.56
E042259 Cable, AC Power, 6 feet, Compatible with ELO Power Brick Ships Free Today $21.50
E604766 Black Power Cable for 1529L And 1000 Series Ships Free Today $15.75
E939253 Rack mount bracket for 1739L Ships Free Today $72.04
E622897 Accessories, Remote on-screen display Ships Free Today $26.05
ELO-1529LMSR MSR FOR 1529L AND 1529L TOUCHCOMPUTER, Dark gray
Ships Free in 3-5 Days
$85.00
See Price in Cart
E931018 Service Contract - 2 year, Extended Warranty for 42" to 46" LCD Touchmonitor.
Ships Free in 3-5 Days
$192.08
E912553 Service Contract - 1 year, Extended Warranty for EMC-1 CPU Module.
Ships Free in 3-5 Days
$51.73
E900527 IDS ON-SITE EXCHANGE 3200L (CONTIGUOUS US ONLY)
Ships Free in 3-5 Days
$192.08
E887099 EXTERNAL POWER BRICK AND CABLE LVL 5 ARGENTINA
Ships Free in 3-5 Days
$28.19
E845500 Service Contract - 1 year, Extended Warranty for 32" IDS LCD.
Ships Free in 3-5 Days
$113.05
See Price in Cart
E826525 KIT, 2ND 320GB HDD KIT ESYXX B/C SERIES REV-B
Ships Free in 3-5 Days
$68.85
E809156 Service Contract - 2 year, Extended Warranty for EMC-2 CPU Module.
Ships Free in 3-5 Days
$76.06
E808755 Service Contract - 2 year, Extended Warranty for EMC-1 CPU Module.
Ships Free in 3-5 Days
$76.06
E794114 Service Contracts - 2 year, Extended Warranty for Touchcomputers, must have one year of warranty left on the original warranty in order to be eligible for warranty plan.
Ships Free in 3-5 Days
$159.86
E779043 Service Contract - 1 year, Extended Warranty for EMC-2 CPU Module.
Ships Free in 3-5 Days
$63.17
E755062 Service Contract - 1 year, Extended Warranty for 42" and 46" IDS.
Ships Free in 3-5 Days
$151.30
See Price in Cart
E739803 Service Contracts - 2 year, Extended Warranty for Touchcomputers, must have one year of warranty left on the original warranty in order to be eligible for warranty plan.
Ships Free in 3-5 Days
$157.25
See Price in Cart
E691354 Service Contract - 1 year, Advanced Unit Replacement Warranty for Touch Computers. Must have one year of warranty left on the original warranty in order to be eligible for warranty plan.
Ships Free in 3-5 Days
$125.80
See Price in Cart
E595376 3239L BRACKET KIT
Ships Free in 3-5 Days
$13.21
E521635 Accessories, Power supply (for the 1725L, 1727L, 1747 and 1767L)
Ships Free in 3-5 Days
$76.50
See Price in Cart
E512729 Service Contract - 2 year, Extended Warranty for 32" LCD Touchmonitor.
Ships Free in 3-5 Days
$153.41
E484257 1938L Accessories, Mounting Bracket Kit (for the 1938L)
Ships Free in 3-5 Days
$16.90
E480320 Accessories, Power Brick (12V DC) for 1900L and 2200L
Ships Free in 3-5 Days
$27.12
E450339 1928L, Power cable for 1928L power brick
Ships Free in 3-5 Days
$20.52
E448370 Touch screen Accessories, External Power Brick, Medical Grade for 1528L and 1928L. Requires Power Cable: (Part# E450339). Ships Free Today $57.70
E445655 Service Contract - 1 year, Extended Warranty for 32" LCD Touchmonitor.
Ships Free in 3-5 Days
$114.73
E335194 1928L, Gray stand for 1915L and 1928L
Ships Free in 3-5 Days
$42.60
E330676 Service Contract - 1 year, Extended Warranty for IDS 2.2GHz Computer.
Ships Free in 3-5 Days
$51.01
E323425 Front mount bezel for 1537L
Ships Free in 3-5 Days
$72.04
E319500 Service Contracts - 1 year, Extended Warranty for Touchcomputers, must have one year of warranty left on the original warranty in order to be eligible for warranty plan.
Ships Free in 3-5 Days
$87.55
See Price in Cart
E295293 Vesa check stand mount for the 1529L
Ships Free in 3-5 Days
$16.90
E295006 Vesa Check Stand Mount for the 1529L Ships Free Today $61.52
E264383 STAND, 1517L. GRAY
Ships Free in 3-5 Days
$47.85
E233227 MSR for 1517L/1717L, White
Ships Free in 3-5 Days
$59.54
E220928 Service Contract - 1 year, Advanced Unit Replacement Warranty for Touch Computers. Must have one year of warranty left on the original warranty in order to be eligible for warranty plan.
Ships Free in 3-5 Days
$125.80
See Price in Cart
E214976 Panel mount brackets for 17" Mount LCD
Ships Free in 3-5 Days
$93.50
See Price in Cart
E203787 "L" (Side-Mount) Bracket Kit for 1590L and 1537L
Ships Free in 3-5 Days
$16.90
E191105 Accessory, Universal Accessories, Stand, Gray, For the 1715L Gray
Ships Free in 3-5 Days
$59.42
E184020 Service Contract - 2 year, Extended Warranty for 55"to 65" LCD Touchmonitor.
Ships Free in 3-5 Days
$230.76
E145919 15D2, Magnetic stripe reader (3-track) for the 15D1 and 17D2 Touchcomputers
Ships Free in 3-5 Days
$57.32
E126594 Service Contract - 1 year, Extended Warranty for IDS 3.0 GHz Computer.
Ships Free in 3-5 Days
$62.07
E063587 Service Contract - 1 year, Extended Warranty for 55"to 65" LCD Touchmonitor.
Ships Free in 3-5 Days
$192.08
E028025 2 GB DDR, MEMORY LOW PROFILE, D SERIES REV C TOUCH COMPUTERS Ships Free Today $47.45
D84822-000 Rack Mount Bracket for 15" Touchmonitors
Ships Free in 3-5 Days
$161.50
See Price in Cart

Elo 1746L Details

1746L 17" LCD Rear-Mount Touchmonitor (1000 Series)

Features

  • Long lasting product cycle—enclosure controlled by Elo specifications
  • Panel upgrades possible to the model in the future without external changes
  • Integrated precision minibezel with watertight 0.5 mm seal
  • Mounting options including rear-mount and VESA mount
  • IntelliTouch Surface Wave touch technology with dual serial/USB touch interface
  • Multilingual remote on-screen display (OSD)
  • Worldwide agency approvals
  • 3-D electronic design files available

Specifications

Model 1746L
Series 1000
Availability Worldwide
Case/Bezel color Steel/black
Display Size: 17.0" diagonal
Type: Active matrix TFT LCD
Useful screen area Horizontal: 13.3" (338 mm)
Vertical: 10.6" (270 mm)
Monitor dimensions Width: 15.4" (371 mm)
Width with brackets: 15.4" (391 mm)
Height: 12.4" (315 mm)
Height with brackets: 13.2" (335 mm)
Depth: 2.1" (53 mm)
Optimal (native) resolution 1280 x 1024
Other supported resolutions 1280 x 960 at 60 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65 (Sun), 70, or 75 Hz
832 x 624 at 75 Hz (Mac)
800 x 600 at 56, 60, 72, or 75 Hz
720 x 400 at 70 Hz
720 x 350 at 70 Hz
640 x 480 at 60, 66 Hz (Mac), 72, or 75 Hz
Colors 16.2 million with dithering, 6 bit per color data
Brightness
LCD panel
260 cd/m2 (typical)
Brightness
LCD panel with touchscreen
IntelliTouch: 239 cd/m2 (typical)
Response time 25 msec (typical)
Viewing angle
(typical, from center)
Horizontal (left/right): ±70° or 140° total
Vertical (up/down): ±70° or 140° total
Contrast ratio 450:1 (typical)
Input video format Analog (no proprietary video card needed)
Input sync format Separate horizontal and vertical sync, composite sync and sync-on-green
Input video signal connector Mini D-Sub 15-Pin
Input frequency Horizontal: 31.5E0 kHz
Vertical: 56.3E5 Hz
Power supply Type: External power supply, 100E40 VAC, 50E0 Hz
Monitor input voltage: 12 VDC
Current: 4.16A max.
Power dissipation 50 W max.
Temperature Operating: 0°C to 40°C
Storage: -20°C to 60°C
Humidity Operating: 20%E0%
Storage: 10%E0%
noncondensing
Weight
(approx.)
Actual: 11 lb (5.0 kg)
Shipping: 19 lb (8.6 kg)
Warranty Monitor: 1 year
Backlight lamp life: typical 40,000 hours to half brightness
Agency approvals UL, cUL, FCC, IC, CE, TÃœV-GS, VCCI, C-Tick
On-screen display (OSD) Remote OSD with 1.8m cable
User's controls Remote OSD: Auto/Sel, down, up, menu
OSD: contrast, brightness, H/V position, color temperature, clock, phase, recall,  language (English, German, Spanish, Japanese, French)
OSD disable/enable: power
Mounting options 100 mm or 75 mm VESA mount
Rear mount from top/bottom or left/right
Brackets included
The Elo 1746L is also known as the Elo Touch Systems 1746L .
