INTELLITOUCH PLUS, USB, VGA, DVI, LED BACKLGHT

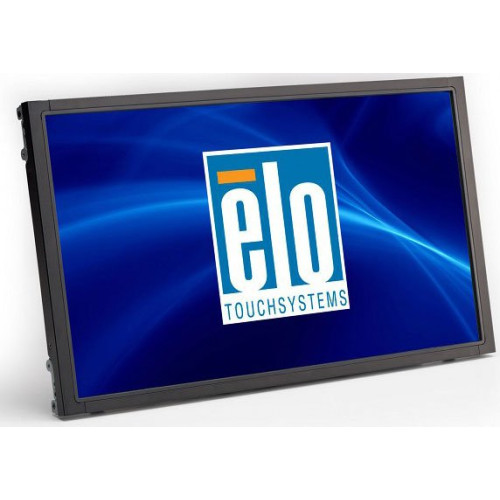

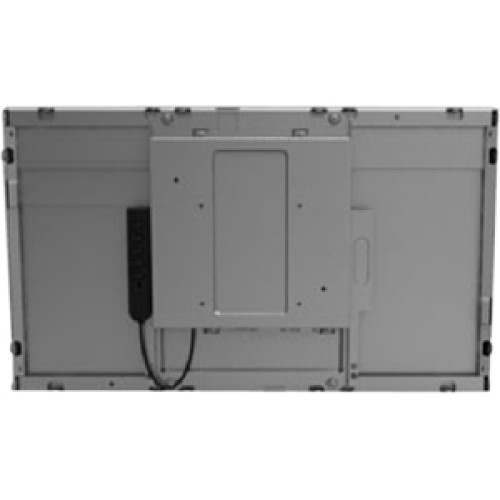

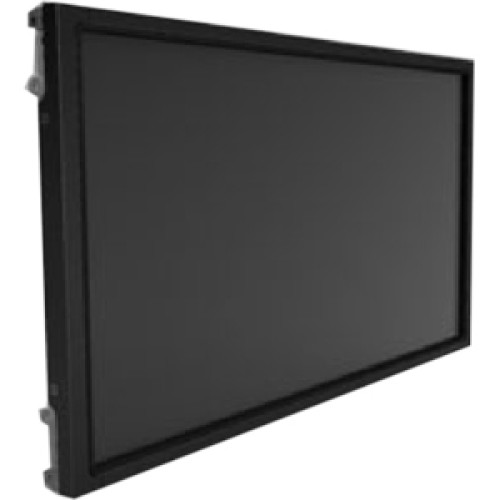

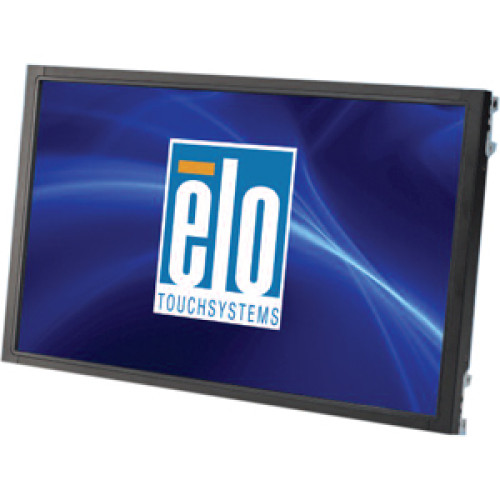

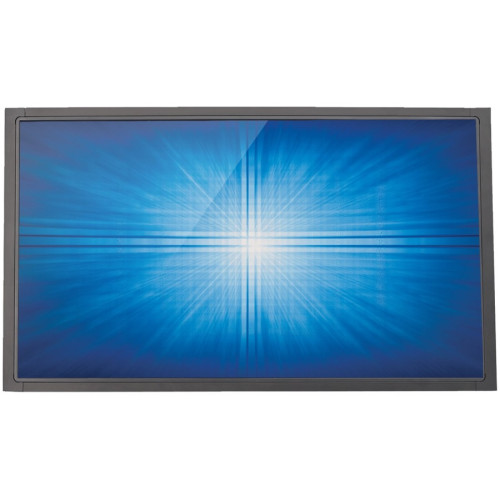

2244L Intellitouch Plus
Touch screen Monitor
The slim design, narrow outside dimensions and wide viewing angle panel gives kiosk integrators an edge in developing the most aesthetically pleasing products. Wide-aspect displays like the ELO 2244L Intellitouch Plus are easier to use and incorporate than traditional open-frame touchmonitors. Wide-screen format displays allow extra content on the screen and are quickly becoming preferred in casino gaming, amusement and entertainment settings and are increasingly popular in public venue environments due to the high-definition cinematic-like experience. Typical applications for the 2244L Intellitouch Plus include: gaming and amusement, information kiosks and self-service, as well as interactive digital signage applications.
Full specifications (PDF)
Manufacturer part number: E056050
- Horizontal Viewing Angle: 178°
- Vertical Viewing Angle: 178°
- Backlight Technology: LED
- Display Orientation: Landscape/Portrait
- Screen Mode: Full HD
- Features: Scratch Resistant
- Screen Size: 22"
- Aspect Ratio: 16:9
- Response Time: 14 ms
- Product Type: Open-frame LCD Touchscreen Monitor
- Brand Name: Elo
- Manufacturer: Elo Touch Solutions, Inc
- Product Model: 2244L
- Product Name: 2244L 22-inch Open-Frame Touchmonitor
- VESA Mount Compatible: Yes
- VESA Mount Standard: 100 x 100
- Height: 11.7"
- Width: 20.2"
- Depth: 1.7"
- Color: Black
- Weight (Approximate): 10.58 lb
- USB: Yes
- DVI: Yes
- VGA: Yes
- Brightness: 250 Nit
- Color Supported: 16.7 Million Colors
- Maximum Resolution: 1920 x 1080
- Contrast Ratio: 1,000:1
- Operating Power Consumption: 39 W
- Standby Power Consumption: 1.50 W
- Off-Mode Power Consumption: 500 mW
- Touchscreen: Yes
- Touchscreen Type: Surface Acoustic Wave
for Elo 2244L Intellitouch Plus
