Photo of Elo E091985 Elo logo

Elo 2239L

22" LCD Open-Frame Touchmonitor (Acoustic Pulse Recognition Touch Technology, USB Touch Interface and Anti-glare Surface Treatment)

Touch screen Monitor
This part is replaced by E654071.
Call for Details

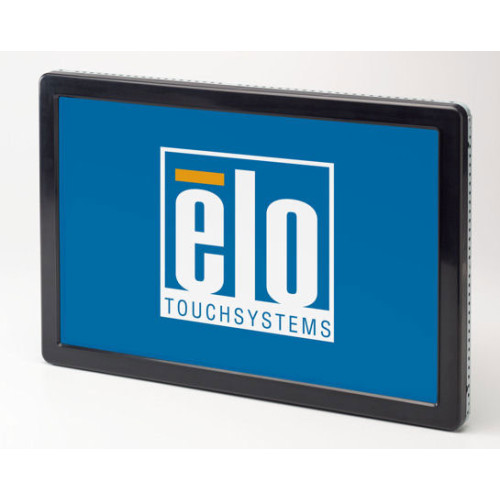

Elo 2239L Touch screen Monitor

The ELO 2239L open-frame touchmonitor delivers a cost-effective touch solution for OEMs and systems integrators, and complements Elo's expanded family of touch solutions for gaming and amusement, retail self-service and kiosk applications. This compact 3000-series touchmonitor is "designed for touch, " with Elo's proven expertise and reliability built-in, not added as an afterthought by altering an existing monitor.

Full specifications (PDF)

Manufacturer part number: E091985

Technical Information

  • Horizontal Viewing Angle: 170
  • Vertical Viewing Angle: 160
  • Screen Mode: WSXGA+
  • Screen Size: 22"
  • Aspect Ratio: 16:10
  • Response Time: 5 ms

General Information

  • Product Type: Open-frame LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 2239L
  • Product Name: 2239L Open-frame Touchscreen LCD Monitor

Physical Characteristics

  • Height: 20.9"
  • Width: 13.9"
  • Depth: 3.1"
  • Color: Black
  • Weight (Approximate): 18.70 lb

Interfaces/Ports

  • USB: Yes
  • DVI: Yes
  • VGA: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • WEEE
    • RoHS

Video

  • Brightness: 270 Nit
  • Color Supported: 16.7 Million Colors (24-bit)
  • Maximum Resolution: 1680 x 1050
  • Contrast Ratio: 1,000:1

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Surface Acoustic Wave

Warranty

  • Limited Warranty: 3 Year
