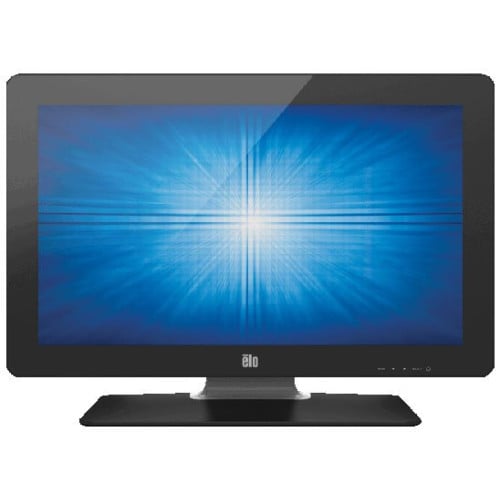

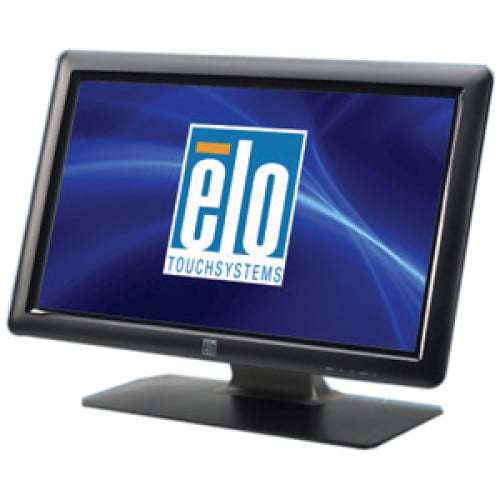

Elo 2201L

22" 1920x1080 16: 9 Widescreen HD, Intellitouch Plus (milti-touch), USB. Color: Gray

Touch screen Monitor

Add to cart to view shipping costs

Ships Today


Elo 2201L Touch screen Monitor

The 2201L offers a flexible, space-saving design, HD wide-aspect ratio 22-inch LCD touchmonitor with Windows 7 multi-touch interactivity. Well-suited to meet durability as well as aesthetic requirements for front-of-store, back office, kiosk and even out-of-store applications, the ELO 2201L offers real versatility for a variety of retail and hospitality interactive solutions. Wide-aspect displays like the 2201L are easier to use and incorporate into the workplace than traditional desktop touchmonitors. Wide-screen format displays allow extra content on the screen and are quickly becoming preferred in corporate environments for publishing and dual window applications, and are popular in public venue environments due to a high-definition cinematic-like experience.

Full specifications (PDF)

Manufacturer part number: E107766

Technical Information

  • Horizontal Viewing Angle: 170°
  • Vertical Viewing Angle: 160°
  • Backlight Technology: LED
  • Adjustable Display Angle: Yes
  • Screen Mode: Full HD
  • Screen Size: 22"
  • Aspect Ratio: 16:9
  • Response Time: 5 ms

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 2201L
  • Product Name: 2201L Touchscreen LCD Monitor

Physical Characteristics

  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 200 x 100
  • Height with Stand: 15.40"
  • Width with Stand: 21.70"
  • Depth with Stand: 7.60"
  • Color: Black
  • Weight (Approximate): 16.50 lb


  • USB: Yes
  • DVI: Yes
  • VGA: Yes
  • USB Standard: USB 1.1


  • Brightness: 250 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1920 x 1080
  • Contrast Ratio: 1,000:1

Touchscreen Information

  • Touchscreen: Yes
  • Multi-touch Screen: Yes
  • Touchscreen Type: Surface Acoustic Wave

Built-in Devices

  • Built-in Devices: Speaker

Power Description

  • Operating Power Consumption: 29 W


  • Speakers: Yes


  • Platform Supported: PC
