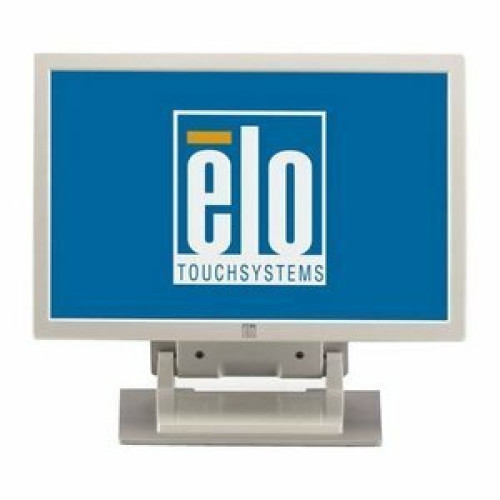

E123233 - Elo 2200L Touch screen Monitor

The ELO 2200L touchmonitor senses touch on the display by recognizing the unique pattern of sounds. Consisting only of a glass overlay mounted in front of the LCD panel, the 2200L zero-bezel Acoustic Pulse Recognition (APR) delivers benefits that combine the ultimate in optical qualities with a stylish, easy to clean, seamless front face. Wide-aspect displays like the 2200L are easier to use and incorporate into the workplace than traditional desktop touchmonitors. Wide-screen format displays allow extra content on screen and are ideal in corporate environments for spreadsheets, publishing, and dual-window applications.

We respond to every email
Part # Description Availability Price Order
E123233 2200L, 22 inch LCD Desktop Touchmonitor (IntelliTouch Touch Technology, dual USB/serial touch Interface and Anti-glare Surface Treatment) - Color: Beige
Ships in 3-5 Days
Call for Details
Information:   |  Specifications  |  Elo's 2200L page  |
Accessories:   |  Accessories/Options  |

E123233 Details

Technical Information

  • Horizontal Viewing Angle: 160°
  • Vertical Viewing Angle: 160°
  • Screen Mode: WSXGA+
  • Mount Type:
    • Wall Mountable
    • Arm-mountable
  • Screen Size: 22"
  • Aspect Ratio: 16:10
  • Response Time: 5 ms

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 2200L
  • Product Name: 2200L Desktop Touchscreen LCD Monitor

Physical Characteristics

  • Weight with Stand (Approximate): 22.20 lb
  • Height with Stand: 15.79"
  • Width with Stand: 20.31"
  • Depth with Stand: 13.48"
  • Color: Beige
  • Weight (Approximate): 15 lb


  • USB: Yes
  • DVI: Yes
  • VGA: Yes
  • Headphone: Yes


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
    • China RoHS
  • Package Contents:
    • 2200L Desktop Touchscreen LCD Monitor
    • North American AC power cable
    • Detachable touch, audio, power and video cables
    • 2200L Desktop Touchscreen LCD Monitor
    • North American AC power cable
    • Detachable touch, audio, power and video cables


  • Standard Refresh Rate: 60 Hz
  • Brightness: 300 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1680 x 1050
  • Contrast Ratio: 1,000:1

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Surface Acoustic Wave


  • Speakers: Yes


  • Limited Warranty: 3 Year

The Elo E123233 is also known as Elo Touch Systems ELO-E123233 .
