Photo of Elo E178661 Elo logo



POS Touch Computer
This part is replaced by E000140.
Ships in 24-48 hours

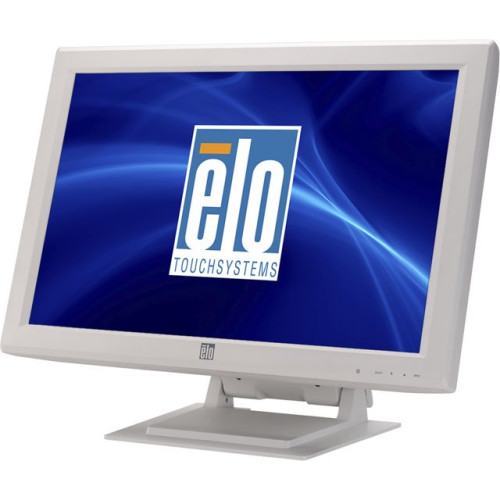

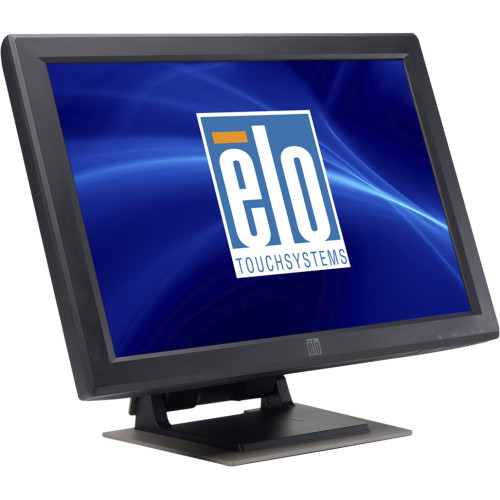

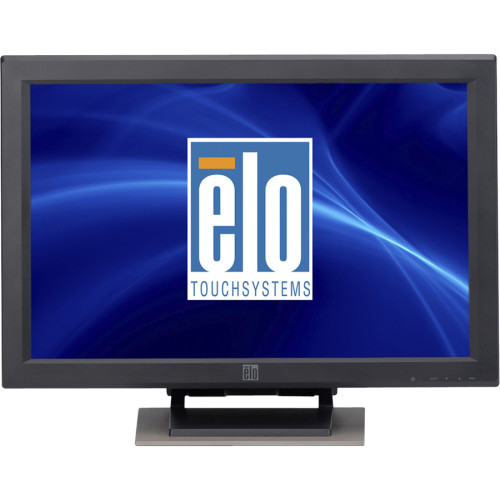

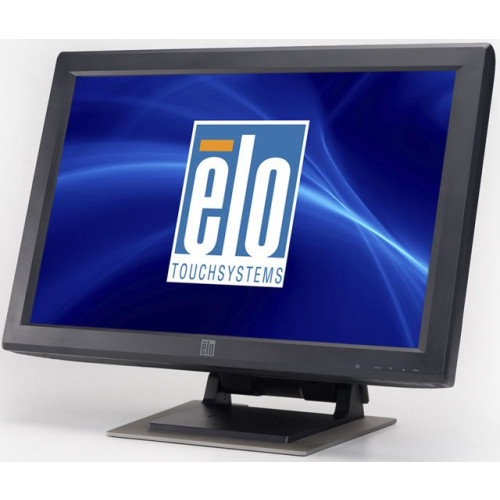

Elo 2400 LM POS Touch Computer

The ELO 2400 LM 24" touchscreen is compliant with multiple safety and electrical certifications including EN 60950-1 and EN60601-1 for safety and EN 60950-1, EN55022, EN55024, and EN 60601-1-2 for EMC. In addition, the 2400 LM is RoHS compliant, and includes an enclosure design that is resistant to dripping water with an IPX1 rating, protecting the unit from liquid drops and spills. As a result the 2400 LM is an excellent fit for a wide variety of settings, including healthcare.

Full specifications (PDF)

Manufacturer part number: E178661

Technical Information

  • Horizontal Viewing Angle: 160°
  • Vertical Viewing Angle: 160°
  • Display Orientation: Landscape
  • Screen Mode: WUXGA
  • Features: Security Lock
  • Screen Size: 24"
  • Aspect Ratio: 16:10
  • Response Time: 5 ms
  • Screen Surface: Anti-glare

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 2400LM
  • Product Name: 2400LM 24-inch Desktop Touchmonitor for Medical and Healthcare Settings

Physical Characteristics

  • Weight with Stand (Approximate): 27.78 lb
  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 100 x 100
  • Color: Dark Gray
  • Weight (Approximate): 21.61 lb


  • USB: Yes
  • DVI: Yes
  • VGA: Yes
  • Serial Port: Yes


  • Brightness: 250 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1920 x 1200
  • Contrast Ratio: 1,000:1

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Surface Acoustic Wave


  • Speakers: Yes

Power Description

  • Operating Power Consumption: 50 W

Built-in Devices

  • Built-in Devices: Speaker
