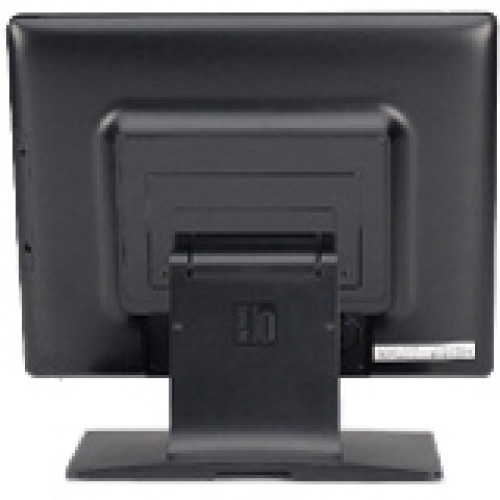

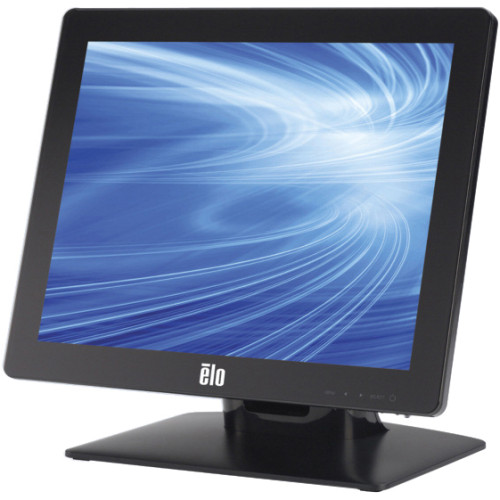

E179069 - Elo 1717L Touch screen Monitor

The 1717L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems systems are found.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
E179069 1717L, ITouch, USB/RS-232, No-Bezel, VGA, LED, Black Ships Today $610.30
Why don't we show the price?
Information:   |  Specifications  |  Elo's 1717L page  |
Accessories:   |  Accessories/Options  |

E179069 Details

Technical Information

  • Horizontal Viewing Angle: 170°
  • Vertical Viewing Angle: 160°
  • Backlight Technology: LED
  • Adjustable Display Angle: Yes
  • Screen Mode: SXGA
  • Features: Security Lock
  • Mount Type: Desk Mountable
  • Screen Size: 17"
  • Aspect Ratio: 5:4
  • Response Time: 30 ms
  • Screen Surface: Anti-glare

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1717L
  • Product Name: 1717L Rev A Multifunction 17-inch Desktop Touchmonitor

Physical Characteristics

  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 75 x 75
  • Height with Stand: 14.17"
  • Width with Stand: 15.43"
  • Depth with Stand: 7.52"
  • Color: Black
  • Weight (Approximate): 12.10 lb

Interfaces/Ports

  • USB: Yes
  • VGA: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
    • China RoHS
  • Certifications & Standards:
    • C-Tick
    • cUL
    • IC
    • CCC
    • CE
    • VCCI
    • KCC
    • e-Standby
    • CoC
    • BSMI
    • UL
    • FCC
    • CB
    • IMERC
    • C-Tick
    • cUL
    • IC
    • CCC
    • CE
    • VCCI
    • KCC
    • e-Standby
    • CoC
    • BSMI
    • UL
    • FCC
    • CB
    • IMERC
  • Package Contents:
    • 1717L Rev A Multifunction 17-inch Desktop Touchmonitor
    • Power Cable
    • Touch/Video Cables
    • 1717L Rev A Multifunction 17-inch Desktop Touchmonitor
    • Power Cable
    • Touch/Video Cables

Video

  • Standard Refresh Rate: 75 Hz
  • Brightness: 250 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1280 x 1024
  • Contrast Ratio: 800:1

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Surface Acoustic Wave

Power Description

  • Operating Power Consumption: 36 W

Warranty

  • Limited Warranty: 3 Year

The Elo E179069 is also known as Elo Touch Systems ELO-E179069 .
