Photo of Elo E180392 Elo logo

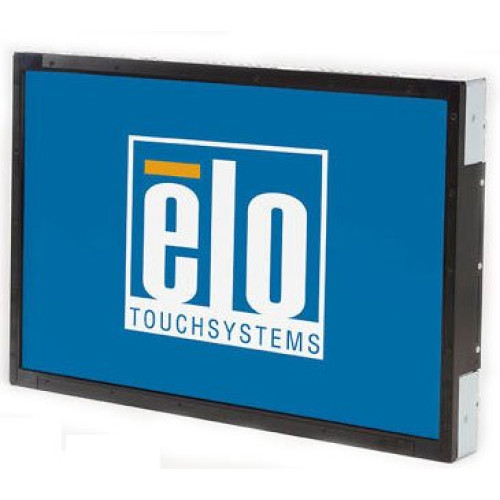

Elo 2240L

22" Widescreen, open-frame, IntelliTouch, with serial and USB controller and DVI and VGA inputs, clear surface treatment, black.

Touch screen Monitor
Call for Details
Availability: Check Availability



Elo 2240L Touch screen Monitor

The ELO 2240L is specifically suited for use in high-traffic casino gaming, video-game entertainment and self-service kiosk environments. The 2240L complements Elo's expanded family of touch solutions for casino gaming, amusement and digital signage. The 2240L features a high quality LCD panel with an ultra-wide viewing angle of 178 x 178 degrees horizontal and vertical, which is wider than most other 22" touchmonitors available today. Colors remain sharp, vivid and true, and graphics retain their integrity due to the 300 nits panel brightness.

Full specifications (PDF)

Manufacturer part number: E180392

Technical Information

  • Horizontal Viewing Angle: 178
  • Vertical Viewing Angle: 178
  • Screen Mode: WSXGA+
  • Screen Size: 22"
  • Aspect Ratio: 16:10
  • Response Time: 16 ms

General Information

  • Product Type: Open-frame LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 2240L
  • Product Name: 2240L Open Frame Touchscreen LCD Monitor

Physical Characteristics

  • Height: 13.1"
  • Width: 19.7"
  • Depth: 3.2"
  • Color: Black
  • Weight (Approximate): 16.60 lb

Interfaces/Ports

  • DVI: Yes
  • VGA: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • China RoHS
    • WEEE
    • RoHS
  • Package Contents:
    • 2240L Open Frame Touchscreen LCD Monitor
    • Mounting Brackets
    • 2240L Open Frame Touchscreen LCD Monitor
    • Mounting Brackets

Video

  • Standard Refresh Rate: 60 Hz
  • Brightness: 300 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1680 x 1050
  • Contrast Ratio: 1,000:1

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Surface Acoustic Wave

Warranty

  • Limited Warranty: 3 Year
