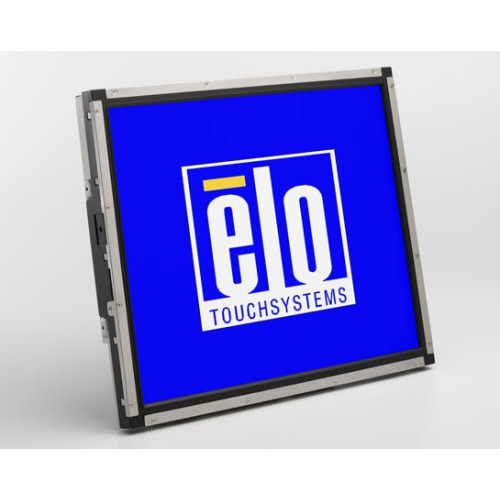

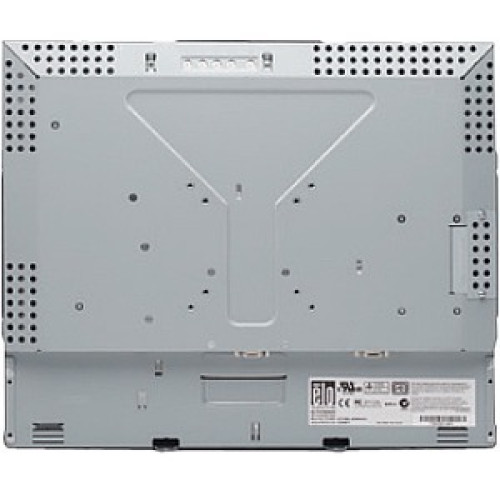

E215546 - Elo 1939L Touch screen Monitor

The Elo 1939L features a brilliant 19" wide viewing angle panel to instantly grab and hold the users' attention, whether they are checking out retail goods with a self-service kiosk or playing games in a casino or arcade. The 1939L uses clear glass IntelliTouch surface wave technology for excellent viewing quality, durability, and drift-free stability. It also features a unique, injectionmolded minibezel with virtually invisible watertight seal, making it ideal for the rigors of public use.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
E215546 1939L, 19 inch LCD Rear-Mount Touchmonitor (IntelliTouch Touch Technology, Dual Serial/USB Touch Interface and Anti-glare Surface Treatment - Requires (Part# E348315) Power supply) Ships Today $600.53
Retail $767
Save 21%
Information:   |  Specifications  |  Elo's 1939L page  |
Accessories:   |  Accessories/Options  |

E215546 Details

Technical Information

  • Horizontal Viewing Angle: 178°
  • Vertical Viewing Angle: 178°
  • Screen Mode: SXGA
  • Screen Size: 19"
  • Aspect Ratio: 5:4
  • Response Time: 25 ms

General Information

  • Product Type: Open-frame LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1939L
  • Product Name: 1939L Open-frame Touchscreen LCD Monitor

Physical Characteristics

  • VESA Mount Compatible: Yes
  • Height: 13.5"
  • Width: 16.3"
  • Depth: 2"
  • Color:
    • Steel
    • Black
  • Weight (Approximate): 11.50 lb

Interfaces/Ports

  • USB: Yes
  • VGA: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • 1939L Open-frame Touchscreen LCD Monitor
    • Touch Cable
    • Video Cable
    • 2 x Standard ("L") Mounting Brackets
    • 1939L Open-frame Touchscreen LCD Monitor
    • Touch Cable
    • Video Cable
    • 2 x Standard ("L") Mounting Brackets

Video

  • Standard Refresh Rate: 75 Hz
  • Brightness: 250 Nit
  • Color Supported: 16.7 Million Colors (24-bit)
  • Maximum Resolution: 1280 x 1024
  • Contrast Ratio: 1,000:1

Power Description

  • Operating Power Consumption: 38 W
  • Input Voltage:
    • 12 V DC
    • 110 V AC
    • 220 V AC

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Surface Acoustic Wave

Warranty

  • Limited Warranty: 3 Year
Part # Description Availability Price Order
E939253 Elo Rack mount bracket for 1739L Ships Free Today $75.86
E939253 Elo Rack mount bracket for 1739L Ships Free Today $75.86
E622897 Elo Accessories, Remote on-screen display
Ships Free in 24-48 Hours
$25.77
E622897 Elo Accessories, Remote on-screen display
Ships Free in 24-48 Hours
$25.77
E147211 Elo "L" brackets for 1739L and 1939L
Ships Free in 24-48 Hours
$16.95
E147211 Elo "L" brackets for 1739L and 1939L
Ships Free in 24-48 Hours
$16.95
D82064-000 Elo Black, soft tip stylus pen for Intellitouch monitors Ships Free Today $22.62
D82064-000 Elo Black, soft tip stylus pen for Intellitouch monitors Ships Free Today $22.62

The Elo E215546 is also known as Elo Touch Systems ELO-E215546 .
