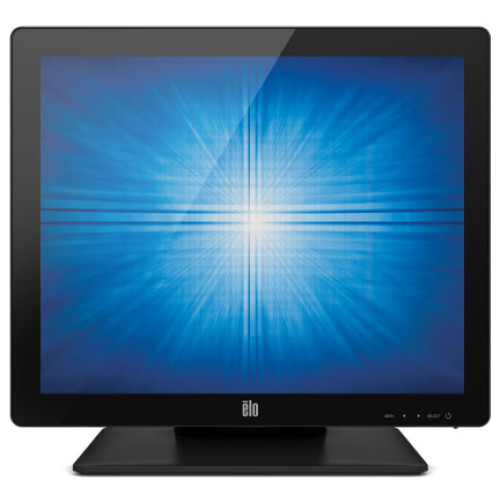

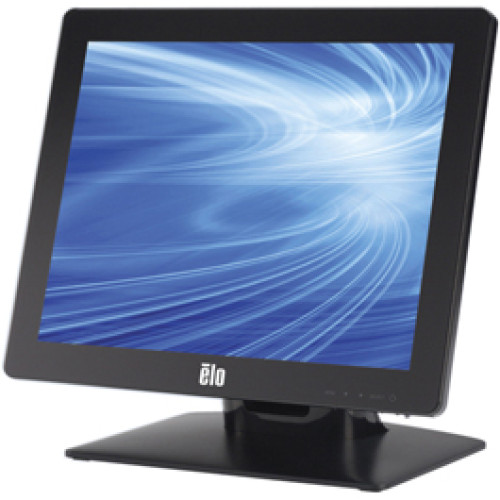

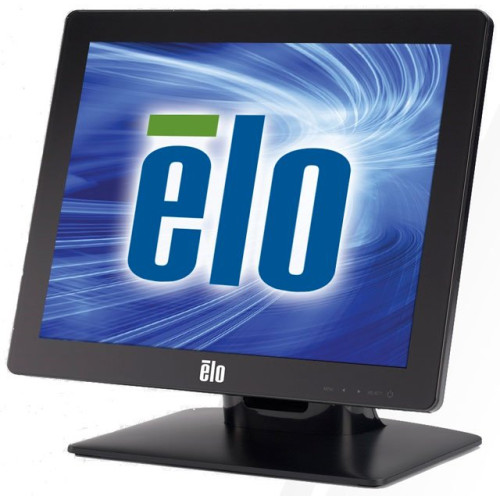

E273226 - Elo 1517L Touch screen Monitor

The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
E273226 1517L, 15 INCH LCD, ITOUCH, ANTI GLARE, ZERO BEZEL, BLACK Ships Today $502.35
Why don't we show the price?
Information:   |  Specifications  |  Elo's 1517L page  |
Accessories:   |  Accessories/Options  |

E273226 Details

Technical Information

  • Horizontal Viewing Angle: 160°
  • Vertical Viewing Angle: 140°
  • Backlight Technology: LED
  • Adjustable Display Angle: Yes
  • Screen Mode: XGA-2
  • Features: Security Lock
  • Mount Type:
    • Desk Mountable
    • Wall Mountable
    • Pole Mount
  • Screen Size: 15"
  • Aspect Ratio: 4:3
  • Response Time: 16 ms
  • Screen Surface: Anti-glare

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1517L
  • Product Name: 1517L Rev B 15-inch Multifunction Desktop

Physical Characteristics

  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 75 x 75
  • Height with Stand: 12.50"
  • Width with Stand: 14.10"
  • Depth with Stand: 7.80"
  • Color: Black
  • Weight (Approximate): 9.48 lb

Interfaces/Ports

  • USB: Yes
  • VGA: Yes
  • Serial Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
    • China RoHS
  • Certifications & Standards:
    • C-Tick
    • cUL
    • IC
    • CCC
    • CE
    • VCCI
    • KCC
    • e-Standby
    • CoC
    • BSMI
    • UL
    • FCC
    • CB
    • IMERC
    • IEC 60320 C6
    • C-Tick
    • cUL
    • IC
    • CCC
    • CE
    • VCCI
    • KCC
    • e-Standby
    • CoC
    • BSMI
    • UL
    • FCC
    • CB
    • IMERC
    • IEC 60320 C6
  • Package Contents:
    • 1517L Rev B 15-inch Multifunction Desktop
    • Detachable Touch and Video Cables
    • Power Cable
    • 1517L Rev B 15-inch Multifunction Desktop
    • Detachable Touch and Video Cables
    • Power Cable

Power Description

  • Operating Power Consumption: 12 W
  • Standby Power Consumption: 1.70 W
  • Off-Mode Power Consumption: 1.30 W
  • Input Voltage:
    • 110 V AC
    • 220 V AC
    • 12 V DC

Video

  • Standard Refresh Rate: 75 Hz
  • Brightness: 250 Nit
  • Color Supported: 16.2 Million Colors
  • Maximum Resolution: 1024 x 768
  • Contrast Ratio: 700:1

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Surface Acoustic Wave

Warranty

  • Limited Warranty: 3 Year

The Elo E273226 is also known as Elo Touch Systems ELO-E273226 .
