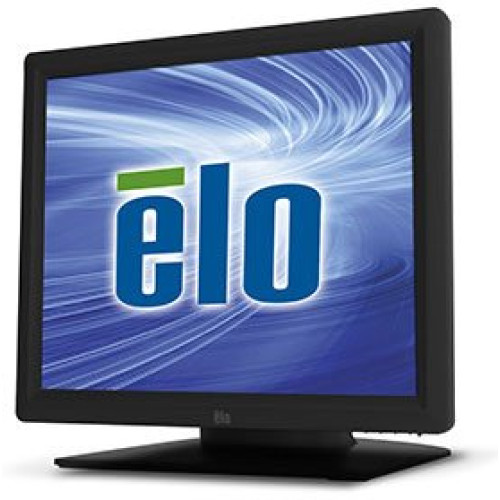

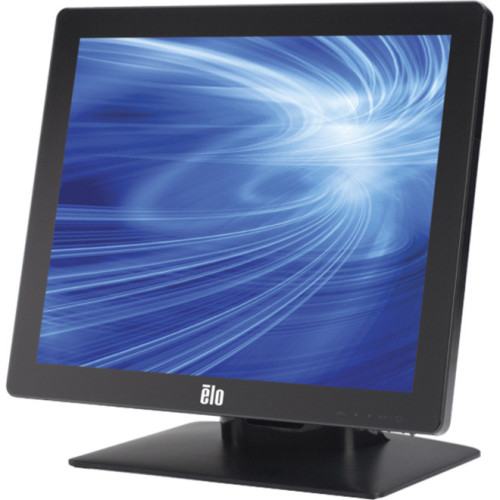

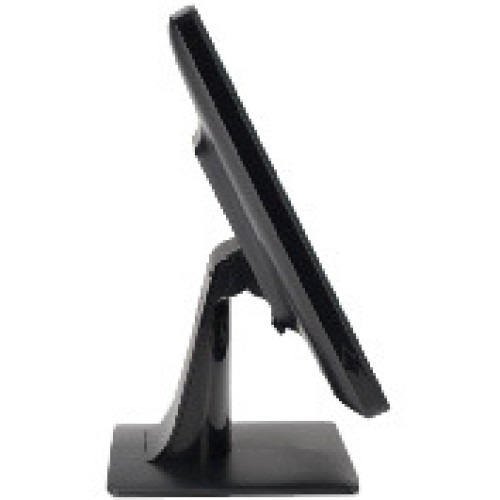

E433551 - Elo 1717L Touch screen Monitor

The 1717L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems systems are found.

Part # Description Availability Price Order
E433551 1717L AccuTouch, USB, NO-BEZEL VGA VIDEO, BLK, LED BACKLIGHT
Information:   |  Specifications  |  Elo's 1717L page  |
Accessories:   |  Accessories/Options  |

E433551 Details

Technical Information

  • Horizontal Viewing Angle: 170°
  • Vertical Viewing Angle: 160°
  • Backlight Technology: LED
  • Screen Mode: SXGA
  • Mount Type:
    • Wall Mountable
    • Arm-mountable
  • Screen Size: 17"
  • Aspect Ratio: 5:4
  • Response Time: 8 ms

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1717L
  • Product Name: 1717L 17" LCD Desktop Touchmonitor

Physical Characteristics

  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 75 x 75
  • Color: Gray
  • Weight (Approximate): 8.53 lb

Interfaces/Ports

  • USB: Yes
  • VGA: Yes
  • Serial Port: Yes

Video

  • Brightness: 200 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1280 x 1024
  • Contrast Ratio: 800:1

Power Description

  • Operating Power Consumption: 21 W
  • Standby Power Consumption: 1 W
  • Off-Mode Power Consumption: 1.10 W

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: 5-wire Resistive

The Elo E433551 is also known as Elo Touch Systems ELO-E433551 .
