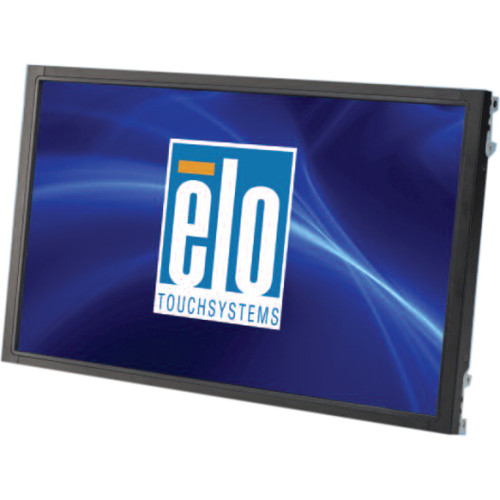

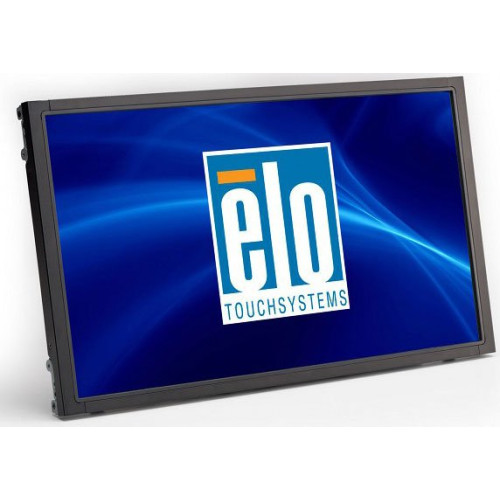

E469590 - Elo 2244L Intellitouch Plus Touch screen Monitor

Available with IntelliTouch or IntelliTouch Plus surface acoustic wave touchscreen technology or Acoustic Pulse Recognition (APR), the 2244L Intellitouch Plus provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission for an accurate touch response and vivid images. APR is the recent ELO Touch Solutions innovation that supports touch activation by any stylus pen, glove, bare finger and fingernail, while IntelliTouch is the optical standard of touch and widely used in kiosk and gaming applications. Both are pure glass construction to deliver a clear, bright and long lasting performance and it also makes the touchscreens scratch resistant. It is nearly impossible to physically "wear out" these touchscreens.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
E469590 2244L Intellitouch, USB, DVI, Clean Glass, Wide Screen Ships Today $569.50
Why don't we show the price?
Information:   |  Specifications  |  Elo's 2244L Intellitouch Plus page  |
Accessories:   |  Accessories/Options  |

E469590 Details

Technical Information

  • Horizontal Viewing Angle: 178°
  • Vertical Viewing Angle: 178°
  • Backlight Technology: LED
  • Screen Mode: Full HD
  • Mount Type: Rack-mountable
  • Screen Size: 22"
  • Aspect Ratio: 16:9
  • Response Time: 14 ms

General Information

  • Product Type: Open-frame LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 2244L
  • Product Name: 2244L Open-frame Touchscreen LCD Monitor

Physical Characteristics

  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 100 x 100
  • Height: 11.7"
  • Width: 20.2"
  • Depth: 1.7"
  • Color: Black
  • Weight (Approximate): 10.60 lb

Interfaces/Ports

  • USB: Yes
  • DVI: Yes
  • VGA: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • China RoHS
    • WEEE
  • Certifications & Standards:
    • S-Mark
    • C-Tick
    • cUL
    • IC
    • CCC
    • CE
    • VCCI
    • KCC
    • Mexico CoC
    • BSMI
    • UL
    • FCC
    • International CB
    • IMERC
    • S-Mark
    • C-Tick
    • cUL
    • IC
    • CCC
    • CE
    • VCCI
    • KCC
    • Mexico CoC
    • BSMI
    • UL
    • FCC
    • International CB
    • IMERC

Video

  • Standard Refresh Rate: 60 Hz
  • Brightness: 250 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1920 x 1080
  • Contrast Ratio: 1,000:1

Power Description

  • Operating Power Consumption: 39 W
  • Standby Power Consumption: 1.50 W
  • Off-Mode Power Consumption: 1 W

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Surface Acoustic Wave

Warranty

  • Limited Warranty: 3 Year

The Elo E469590 is also known as Elo Touch Systems ELO-E469590 .
