Elo Entuitive 1529L

15" LCD, TouchMonitor, AccuTouch (resistive) Touch Technology, dual Serial/USB Interface (no USB hub), Tall stand. Color: Gray

Touch screen Monitor
This part is replaced by E394454.
Call for Details

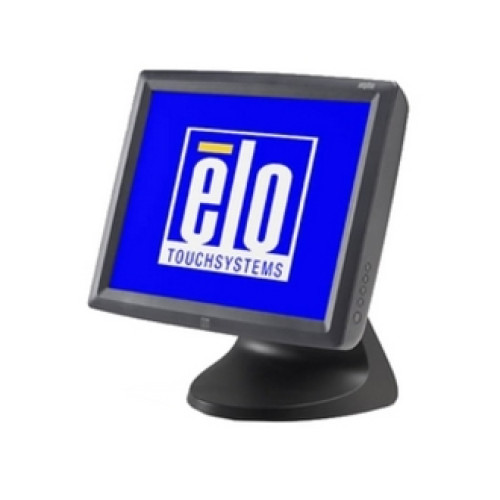

Elo 1529L Touch screen Monitor

The Elo 1529L touchmonitor expands the company's family of reliable, easily integrated, multifunction touch solutions. The retail-rugged 1529L includes options for a magnetic stripe reader (MSR), biometric fingerprint reader, and a choice of either a 2 x 20 vacuum fluorescent rear-facing customer display (VFD) or the first consumer-touchable 12.1" rear-facing customer display. The 1529L has been designed for touch from the ground up, with such features as spill-resistant sealing, a short or tall stable tilt base that is removable or reversible for wall mounting, connectivity incorporated within the monitor, and a choice of Elo touch technology as well as color. Also available is the 1529L TouchComputer, a silent, fanless integrated all-in-one touchcomputer within the footprint of a 15" LCD monitor.

Full specifications (PDF)

Manufacturer part number: E582772

General Information

  • Product Type: LCD Touchscreen Monitor
  • Product Series: 3000
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1529L
  • Product Name: 3000 Series 1529L Touch Screen Monitor

Technical Information

  • Screen Mode: XGA
  • Mount Type: Desk Mountable
  • Screen Size: 15"
  • Aspect Ratio: 4:3
  • Response Time: 12 ms
  • Screen Surface: Anti-glare

Physical Characteristics

  • Height with Stand: 11.27"
  • Width with Stand: 13.99"
  • Depth with Stand: 10.44"
  • Color: Dark Gray
  • Weight (Approximate): 14.44 lb


  • USB: Yes
  • DVI: Yes


  • Platform Supported:
    • PC
    • Mac
  • Additional Information:
    • Speaker: Two watt/channel speakers located in display head
    • MTBF: 50,000 hours minimum demonstrated
    • Security lock receptacle
    • Tall stand


  • Brightness: 280 Nit
  • Color Supported: 16.2 Million Colors
  • Maximum Resolution: 1024 x 768
  • Contrast Ratio: 400:1

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: 5-wire Resistive
