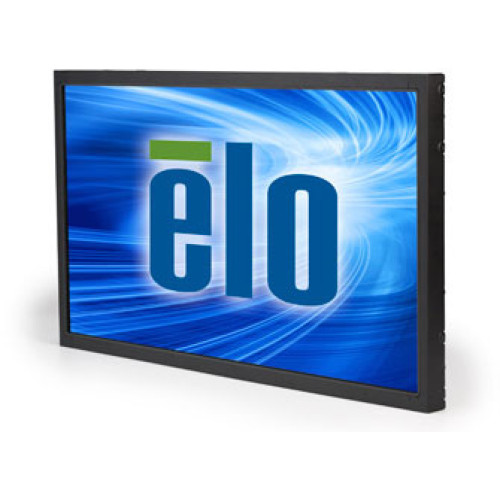

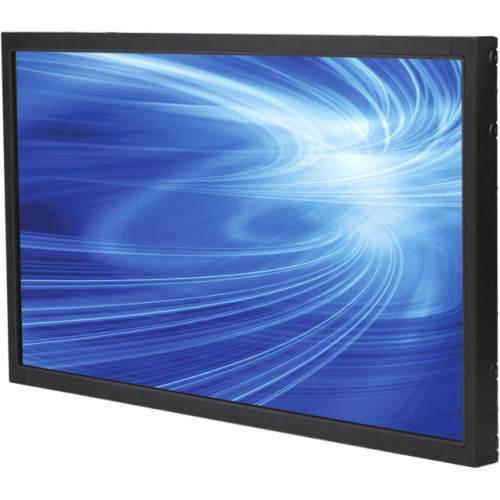

E589724 - Elo 3243L Touch screen Monitor

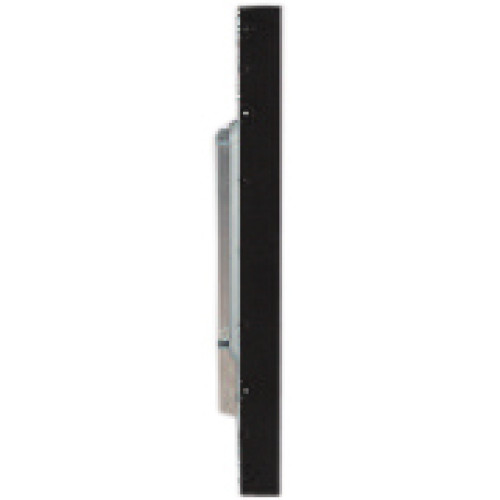

The Elo Touch Solutions 3243L 32-inch full HD open-frame touchmonitor provides smooth dual-touch performance with IntelliTouch Plus surface acoustic wave technology. The 3243L touchmonitor is 2.3-inches in total thickness and less than 1-inch in border width. The new sleek mechanical design enables thinner and smaller kiosk design for various applications like retail, hotels, gaming, transportation and other commercial uses. Applications in demanding public access environments are enabled with UL60950 ball drop glass compliance. The 3243L features a unique, injection-molded bezel with a virtually invisible water-resistant seal, making it a good choice for the rigors of public use. Narrow borders, multiple mounting options, and a USB touch interface add to the versatility of the 3243L.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
E589724 3243L, Intellitouch Plus, USB VGA/HDMI, Full HD with LED Backlight
Ships in 3-5 Days
Call for Details
Information:   |  Specifications  |  Elo's 3243L page  |
Accessories:   |  No accessories available  |

E589724 Details

Technical Information

  • Horizontal Viewing Angle: 178°
  • Vertical Viewing Angle: 178°
  • Backlight Technology: LED
  • Screen Mode: Full HD
  • Features: Water Proof
  • Screen Size: 32"
  • Aspect Ratio: 16:9
  • Response Time: 6.50 ms

General Information

  • Product Type: Open-frame LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 3243L
  • Product Name: 3243L Multifunction 32-Inch Desktop Touchmonitor

Physical Characteristics

  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 400 x 200
  • Height with Stand: 17.44"
  • Width with Stand: 28.95"
  • Depth with Stand: 2.28"
  • Color: Black
  • Weight (Approximate): 27.12 lb

Interfaces/Ports

  • USB: Yes
  • VGA: Yes

Video

  • Brightness: 350 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1920 x 1080
  • Contrast Ratio: 3,000:1

Power Description

  • Operating Power Consumption: 55 W
  • Standby Power Consumption: 1.40 W
  • Off-Mode Power Consumption: 300 mW

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: IntelliTouch Plus

Other

  • Platform Supported: PC

The Elo E589724 is also known as Elo Touch Systems ELO-E589724 .
