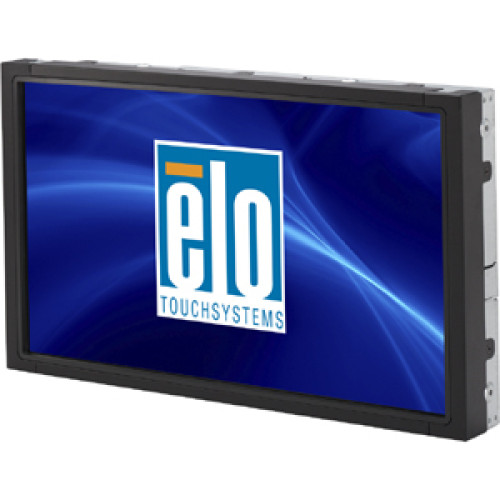

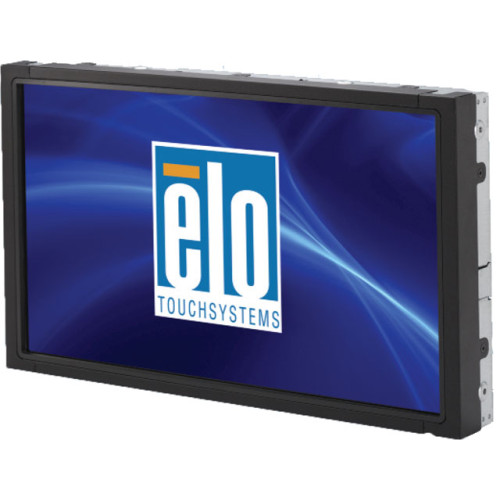

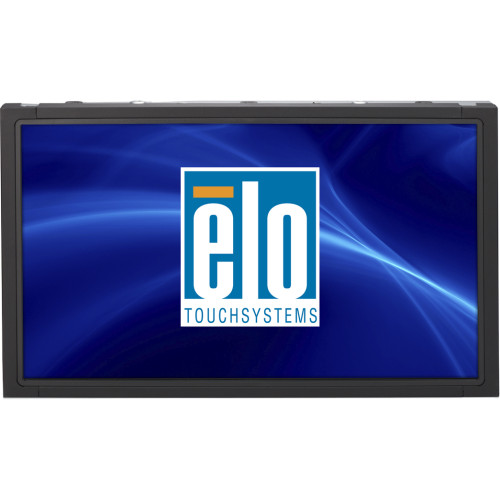

E606625 - Elo 1541L Touch screen Monitor

The ELO 1541L features an LED backlight, a wide-screen16:9 aspect ratio LCD panel with the choice of either IntelliTouch Plus multi-touch or AccuTouch 5-wire resistive touchscreen. The 1541L expands the ELO family of touch solutions with flexible, energy-saving features.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
E606625 1541L, Intellitouch Plus, USB Widescreen Clear Glass Dvi Ships Today $481.10
Why don't we show the price?
Information:   |  Specifications  |  Elo's 1541L page  |
Accessories:   |  Accessories/Options  |

E606625 Details

Technical Information

  • Horizontal Viewing Angle: 170°
  • Vertical Viewing Angle: 130°
  • Backlight Technology: LED
  • Screen Mode: WXGA
  • Screen Size: 15"
  • Aspect Ratio: 16:9
  • Response Time: 16 ms

General Information

  • Product Type: Open-frame LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1541L
  • Product Name: 1541L 15-inch LCD Open-frame Touchmonitor

Physical Characteristics

  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 75 x 75
  • Height: 8.7"
  • Width: 14.8"
  • Depth: 1.8"
  • Weight (Approximate): 6.48 lb

Interfaces/Ports

  • USB: Yes
  • DVI: Yes
  • VGA: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • China RoHS
    • WEEE
  • Certifications & Standards:
    • C-Tick
    • cUL
    • IC
    • CCC
    • CE
    • VCCI
    • KCC
    • CoC
    • BSMI
    • UL
    • FCC
    • CB
    • IMERC
    • C-Tick
    • cUL
    • IC
    • CCC
    • CE
    • VCCI
    • KCC
    • CoC
    • BSMI
    • UL
    • FCC
    • CB
    • IMERC

Power Description

  • Operating Power Consumption: 15 W
  • Standby Power Consumption: 2 W
  • Off-Mode Power Consumption: 1 W
  • Input Voltage:
    • 110 V AC
    • 220 V AC

Video

  • Standard Refresh Rate: 60 Hz
  • Brightness: 250 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1366 x 768
  • Contrast Ratio: 500:1

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Surface Acoustic Wave

Warranty

  • Limited Warranty: 3 Year

The Elo E606625 is also known as Elo Touch Systems ELO-E606625 .
