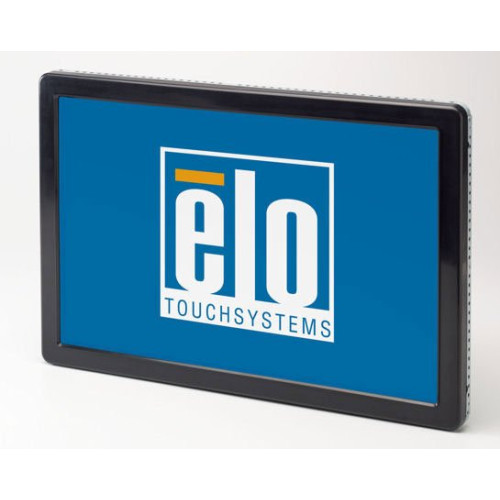

E654071 - Elo 2239L Touch screen Monitor

The ELO 2239L features a brilliant wide-viewing-angle LCD panel to instantly grab and hold the user's attention, whether they are checking out retail goods with a self-service kiosk or playing games in a casino or arcade. Because the enclosure is controlled by Elo's specifications and tooling, Elo's open-frame monitors have a long-lasting product cycle, which is important to maintain continuity through all phases of project rollouts and servicing.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
E654071 2239L, 22" LCD Open-Frame Touchmonitor (IntelliTouch (surface wave) Touch Technology, Dual Serial-USB Touch Interface and Anti-glare Surface Treatment)
Information:   |  Specifications  |  Elo's 2239L page  |
Accessories:   |  Accessories/Options  |

E654071 Details

Technical Information

  • Horizontal Viewing Angle: 170°
  • Vertical Viewing Angle: 160°
  • Screen Mode: WSXGA+
  • Screen Size: 22"
  • Aspect Ratio: 16:10
  • Response Time: 5 ms
  • Screen Surface: Anti-glare

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 2239L
  • Product Name: 2239L Touch Screen Monitor

Physical Characteristics

  • Height: 20.9"
  • Width: 13.9"
  • Depth: 3.1"
  • Color: Black
  • Weight (Approximate): 18.70 lb

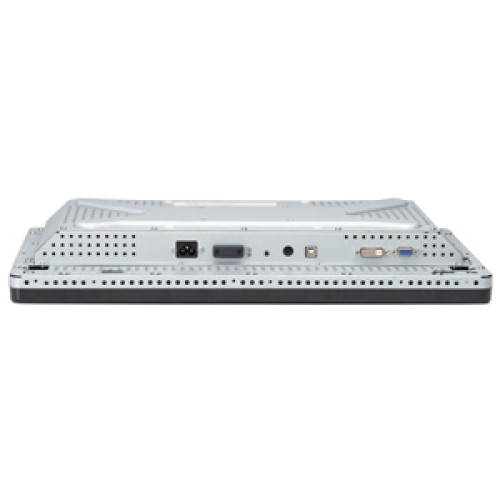

Interfaces/Ports

  • USB: Yes
  • DVI: Yes

Video

  • Standard Refresh Rate: 75 Hz
  • Brightness: 270 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1680 x 1050
  • Contrast Ratio: 1,000:1

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Surface Acoustic Wave

Warranty

  • Limited Warranty: 3 Year
Part # Description Availability Price Order
E622897 Elo Accessories, Remote on-screen display Ships Free Today $26.05
E622897 Elo Accessories, Remote on-screen display Ships Free Today $26.05
D82064-000 Elo Black, soft tip stylus pen for Intellitouch monitors Ships Free Today $22.90
D82064-000 Elo Black, soft tip stylus pen for Intellitouch monitors Ships Free Today $22.90

The Elo E654071 is also known as Elo Touch Systems ELO-E654071 .
