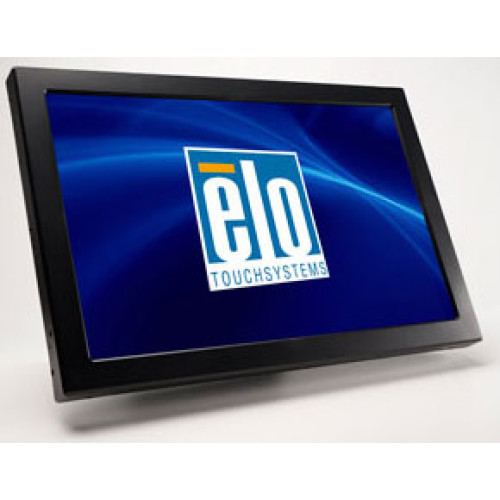

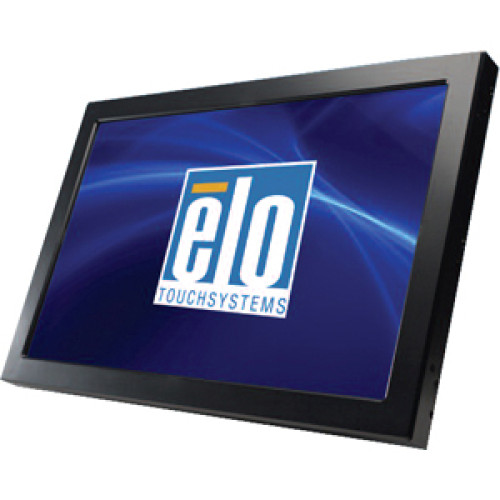

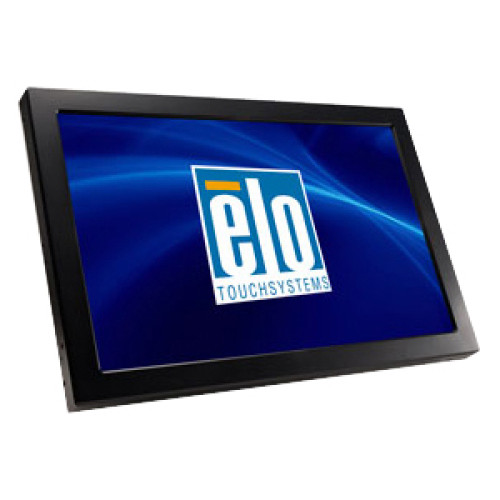

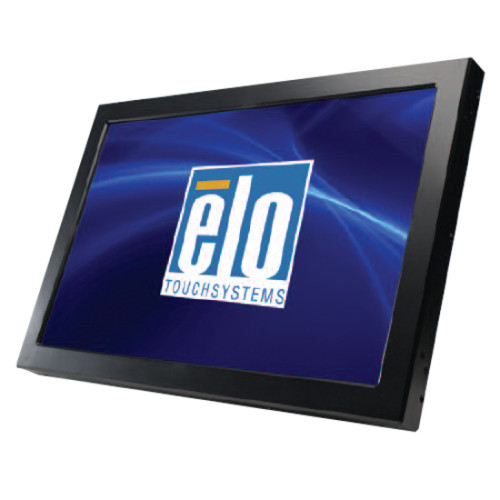

E667969 - Elo 2242L Touch screen Monitor

The ELO 2242L features a unique capability - the use of Tyco Electronics' IntelliTouch Plus, which unlike other multi-touch technologies utilizes three axes of touch information to deliver sensitive, accurate, drift-free recordings of two simultaneous touch locations anywhere on the screen regardless of position or pressure applied. IntelliTouch Plus utilizes pure-glass construction to deliver excellent imagery, high light transmissions and is not affected by variations in ambient or extreme light. IntelliTouch Plus supports finger and soft stylus activation and features durable, scratch-resistant glass to assure continuous surface performance even if scratched.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
E667969 2242L, 22-Inch Open-Frame Touchmonitor (IntelliTouch Plus, USB, DVI/Analog VGA, Clear)
Information:   |  Specifications  |  Elo's 2242L page  |
Accessories:   |  No accessories available  |

E667969 Details

Technical Information

  • Horizontal Viewing Angle: 160°
  • Vertical Viewing Angle: 160°
  • Screen Mode: WSXGA+
  • Screen Size: 22"
  • Aspect Ratio: 16:10
  • Response Time: 5 ms

General Information

  • Product Type: Open-frame LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 2242L
  • Product Name: 2242L Open-frame Touchscreen LCD Monitor

Physical Characteristics

  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 100 x 100
  • Height: 14.2"
  • Width: 21.1"
  • Depth: 3"
  • Weight (Approximate): 19.29 lb

Interfaces/Ports

  • DVI: Yes
  • VGA: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • REACH
    • WEEE
  • Certifications & Standards:
    • S-mark
    • C-Tick
    • cUL
    • IC
    • CCC
    • CE
    • VCCI
    • EK
    • MIC
    • NOM
    • GOST
    • BSMI
    • UL
    • FCC
    • CB
    • IMERC
    • S-mark
    • C-Tick
    • cUL
    • IC
    • CCC
    • CE
    • VCCI
    • EK
    • MIC
    • NOM
    • GOST
    • BSMI
    • UL
    • FCC
    • CB
    • IMERC
  • Platform Supported: PC

Power Description

  • Operating Power Consumption: 50 W
  • Standby Power Consumption: 4 W
  • Off-Mode Power Consumption: 50 W
  • Input Voltage:
    • 110 V AC
    • 220 V AC

Video

  • Standard Refresh Rate: 60 Hz
  • Brightness: 300 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1680 x 1050
  • Contrast Ratio: 1,000:1

Touchscreen Information

  • Touchscreen: Yes
  • Multi-touch Screen: Yes
  • Touchscreen Type: Surface Acoustic Wave

Warranty

  • Limited Warranty: 3 Year

The Elo E667969 is also known as Elo Touch Systems ELO-E667969 .
