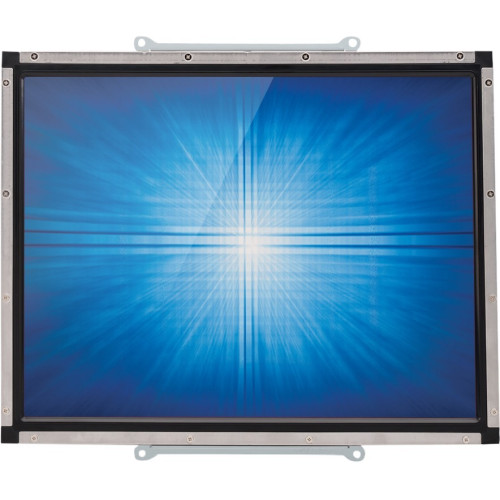

E701210 - Elo 1537L Touch screen Monitor

Elo's 1537L rear-mount LCD touchmonitor is designed and developed to complement the company's touch solutions for kiosk information systems, gaming and amusement, and light industrial shop-floor automation. The compact 1537L touchmonitor is "designed for touch," with Elo's proven expertise and reliability already built in from the ground up and not by altering an existing monitor. An integrated precision minibezel seals the touchscreen against dirt, dust and liquids, simplifying integration into the customer's enclosure. A long-lasting product cycle can be expected and future-generation panels can be phased-in without external changes.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
E701210 1537L, 15 inch LCD Rear-Mount Touchmonitor (AccuTouch Touch Technology, Dual Serial/USB Touch Interface and Anti-glare Surface Treatment). Power supply not included. See accessories. Ships Today $475.84
Retail $588
Save 19%
Information:   |  Specifications  |  Elo's 1537L page  |
Accessories:   |  No accessories available  |

E701210 Details

Technical Information

  • Horizontal Viewing Angle: 140°
  • Vertical Viewing Angle: 115°
  • Screen Mode: XGA
  • Screen Size: 15"
  • Aspect Ratio: 4:3
  • Response Time: 14.50 ms

General Information

  • Product Type: Open-frame LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1537L
  • Product Name: 1537L Open-frame Touchscreen LCD Monitor

Physical Characteristics

  • VESA Mount Compatible: Yes
  • Height: 10.4"
  • Width: 13.2"
  • Depth: 1.6"
  • Color:
    • Steel
    • Black
  • Weight (Approximate): 6.60 lb

Interfaces/Ports

  • USB: Yes
  • VGA: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • WEEE
    • RoHS
  • Package Contents:
    • 1537L Open-frame Touchscreen LCD Monitor
    • Touch Cable
    • Video Cable
    • 2 x Standard ("L") Mounting Brackets
    • 1537L Open-frame Touchscreen LCD Monitor
    • Touch Cable
    • Video Cable
    • 2 x Standard ("L") Mounting Brackets

Video

  • Standard Refresh Rate: 75 Hz
  • Brightness: 250 Nit
  • Color Supported: 16.2 Million Colors
  • Maximum Resolution: 1024 x 768
  • Contrast Ratio: 500:1

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: 5-wire Resistive

Power Description

  • Operating Power Consumption: 30 W
  • Input Voltage: 12 V DC

Warranty

  • Limited Warranty: 3 Year
