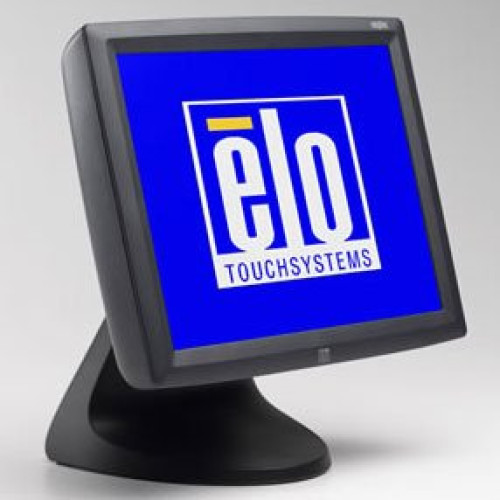

E733714 - Elo 1529L Touch screen Monitor

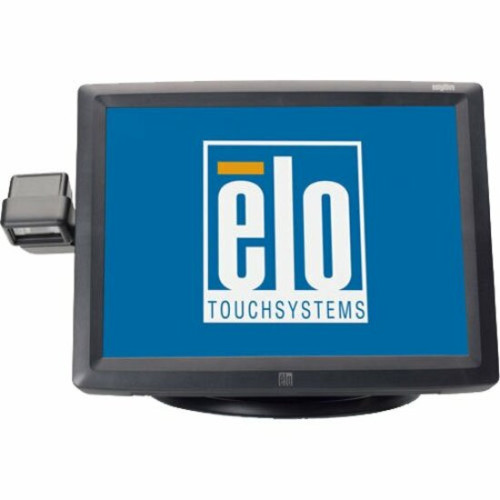

The Elo 1529L touchmonitor expands the company's family of reliable, easily integrated, multifunction touch solutions. The retail-rugged 1529L includes options for a magnetic stripe reader (MSR), biometric fingerprint reader, and a choice of either a 2 x 20 vacuum fluorescent rear-facing customer display (VFD) or the first consumer-touchable 12.1" rear-facing customer display. The 1529L has been designed for touch from the ground up, with such features as spill-resistant sealing, a short or tall stable tilt base that is removable or reversible for wall mounting, connectivity incorporated within the monitor, and a choice of Elo touch technology as well as color. Also available is the 1529L TouchComputer, a silent, fanless integrated all-in-one touchcomputer within the footprint of a 15" LCD monitor.

We respond to every email
Part # Description Availability Price Order
E733714 Entuitive 1529L, 15" IntelliTouch (surface wave) touch interface, USB touch interface, MSR keyboard emulation, Anti-glare surface treatment, Color: Gray
Information:   |  Specifications  |  Elo's 1529L page  |
Accessories:   |  Accessories/Options  |

E733714 Details

Technical Information

  • Horizontal Viewing Angle: 120°
  • Vertical Viewing Angle: 100°
  • Screen Mode: XGA
  • Mount Type: Wall Mountable
  • Screen Size: 15"
  • Aspect Ratio: 4:3
  • Response Time: 12 ms

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1529L
  • Product Name: 1529L Touchscreen LCD Monitor

Physical Characteristics

  • Height: 11.3"
  • Width: 14"
  • Depth: 10.4"
  • Color: Gray
  • Weight (Approximate): 10.58 lb


  • USB: Yes
  • VGA: Yes


  • Package Contents:
    • 1529L Touchscreen LCD Monitor
    • Power Cables
    • All Appropriate Touch/Video/Accessory Cables
    • 1529L Touchscreen LCD Monitor
    • Power Cables
    • All Appropriate Touch/Video/Accessory Cables


  • Standard Refresh Rate: 75 Hz
  • Brightness: 350 Nit
  • Color Supported: 16.2 Million Colors
  • Maximum Resolution: 1024 x 768
  • Contrast Ratio: 400:1

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Surface Acoustic Wave


  • Speakers: Yes


  • Limited Warranty: 3 Year
Part # Description Availability Price Order
D82064-000 Elo Black, soft tip stylus pen for Intellitouch monitors Ships Free Today $22.62

The Elo E733714 is also known as Elo Touch Systems ELO-E733714 .
