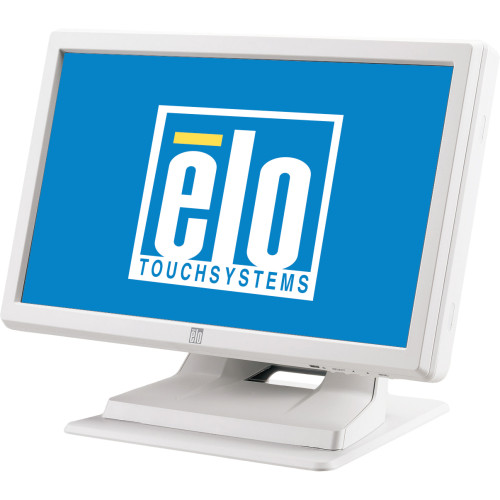

E872193 - Elo 1919 LM Touch screen Monitor

The ELO 1919 LM 19" touchscreen is compliant with multiple safety and electrical certifications including EN 60950-1 and EN60601-1 for safety and EN 60950-1, EN55022, EN55024, and EN 60601-1-2 for EMC. In addition, the 1919 LM is RoHS compliant, and includes an enclosure design that is resistant to dripping water with an IPX1 rating, protecting the unit from liquid drops and spills. As a result the 1919 LM is an excellent fit for a wide variety of settings, including healthcare.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
E872193 1919LM, INTELLITOUCH, USB/Serial, VGA, DVI, MEDICAL, WHITE
Ships in 3-5 Days
$762.45
Why don't we show the price?
Information:   |  Specifications  |  Elo's 1919 LM page  |
Accessories:   |  Accessories/Options  |

E872193 Details

Technical Information

  • Horizontal Viewing Angle: 170°
  • Vertical Viewing Angle: 160°
  • Adjustable Display Angle: Yes
  • Screen Mode: WXGA
  • Screen Size: 19"
  • Aspect Ratio: 16:9
  • Response Time: 5 ms

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1919LM
  • Product Name: 1919LM 19-inch Desktop Touchmonitor For Medical And Healthcare Settings

Physical Characteristics

  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 100 x 100
  • Height: 12.2"
  • Width: 13.8"
  • Depth: 6.9"
  • Color: White
  • Weight (Approximate): 15.21 lb

Interfaces/Ports

  • USB: Yes
  • DVI: Yes
  • VGA: Yes
  • Headphone: Yes
  • Serial Port: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Certifications & Standards:
    • FCC 18 Subpart B
    • CUL
    • CSA
    • UL
    • C-tick
    • NOM
    • ICES-003
    • IEC/EN
    • S-mark
    • CE
    • IC
    • VCCI
    • CSA
    • CISPR 11
    • FCC 18 Subpart B
    • CUL
    • CSA
    • UL
    • C-tick
    • NOM
    • ICES-003
    • IEC/EN
    • S-mark
    • CE
    • IC
    • VCCI
    • CSA
    • CISPR 11
  • Package Contents:
    • 1919LM 19-inch Desktop Touchmonitor For Medical And Healthcare Settings
    • CD and Quick Install Guide
    • Touch and Video Cables
    • DC Power Adapter
    • USB Cable
    • Power Cable
    • Audio Cable
    • VGA Cable
    • DVI Cable
    • 1919LM 19-inch Desktop Touchmonitor For Medical And Healthcare Settings
    • CD and Quick Install Guide
    • Touch and Video Cables
    • DC Power Adapter
    • USB Cable
    • Power Cable
    • Audio Cable
    • VGA Cable
    • DVI Cable
  • Platform Supported: PC

Video

  • Standard Refresh Rate: 60 Hz
  • Brightness: 300 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1366 x 768
  • Contrast Ratio: 1,000:1

Power Description

  • Operating Power Consumption: 21.80 W
  • Input Voltage:
    • 110 V AC
    • 220 V DC

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Surface Acoustic Wave

Warranty

  • Limited Warranty: 3 Year

Audio

  • Speakers: Yes

Built-in Devices

  • Built-in Devices: Speaker

The Elo E872193 is also known as Elo Touch Systems ELO-E872193 .
