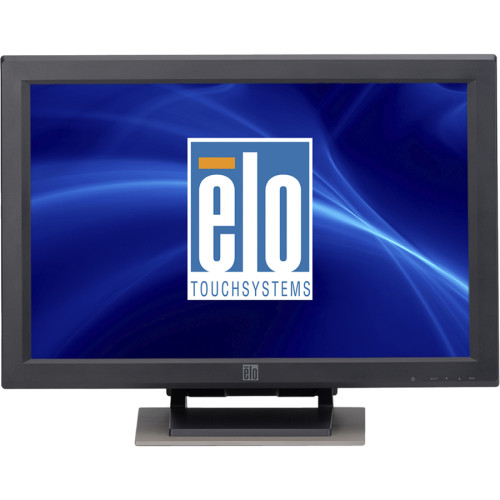

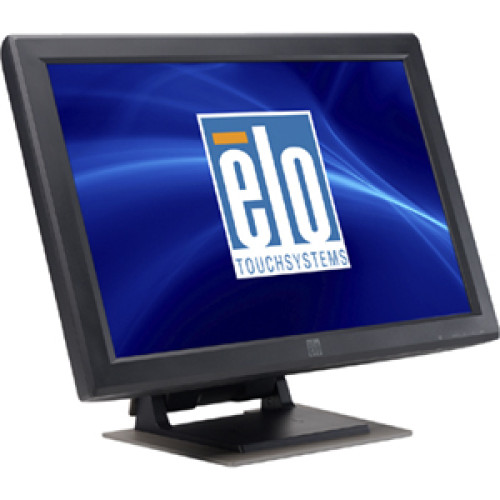

E902744 - Elo 2400 LM Touch screen Monitor

The ELO 2400 LM 24" touchscreen is compliant with multiple safety and electrical certifications including EN 60950-1 and EN60601-1 for safety and EN 60950-1, EN55022, EN55024, and EN 60601-1-2 for EMC. In addition, the 2400 LM is RoHS compliant, and includes an enclosure design that is resistant to dripping water with an IPX1 rating, protecting the unit from liquid drops and spills. As a result the 2400 LM is an excellent fit for a wide variety of settings, including healthcare.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
E902744 2400 LM, 24-inch Desktop Touchmonitor (IntelliTouch Touch Technology, Dual Serial-USB, Anti-Glare) - Color: Dark gray
Information:   |  Specifications  |  Elo's 2400 LM page  |
Accessories:   |  Accessories/Options  |

E902744 Details

Technical Information

  • Horizontal Viewing Angle: 160°
  • Vertical Viewing Angle: 160°
  • Screen Mode: WUXGA
  • Screen Size: 24"
  • Aspect Ratio: 16:10
  • Response Time: 5 ms

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 2400LM
  • Product Name: 2400LM Touchscreen LCD Monitor

Physical Characteristics

  • Weight with Stand (Approximate): 27.80 lb
  • Color: Dark Gray
  • Weight (Approximate): 21.50 lb

Interfaces/Ports

  • USB: Yes
  • DVI: Yes
  • VGA: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • WEEE
    • RoHS
  • Certifications & Standards:
    • CB
    • CCC
    • UL/cUL
    • FCC
    • CE
    • VCCI
    • C-Tick (Class B)
    • IPX1
    • IEC60601-1-2
    • IMERC
    • CE
    • EN 60950-1
    • EN 60601-1
    • EN 55011
    • EN 55024
    • EN 6100-3-3
    • EN 60601-1-2
    • CB
    • CCC
    • UL/cUL
    • FCC
    • CE
    • VCCI
    • C-Tick (Class B)
    • IPX1
    • IEC60601-1-2
    • IMERC
    • CE
    • EN 60950-1
    • EN 60601-1
    • EN 55011
    • EN 55024
    • EN 6100-3-3
    • EN 60601-1-2
  • Package Contents:
    • 2400LM Touchscreen LCD Monitor
    • Power Cable
    • Stand
    • Touch/Video Cables
    • 2400LM Touchscreen LCD Monitor
    • Power Cable
    • Stand
    • Touch/Video Cables
  • Platform Supported: PC

Video

  • Standard Refresh Rate: 60 Hz
  • Brightness: 300 Nit
  • Color Supported: 16.7 Million Colors
  • Maximum Resolution: 1920 x 1200
  • Contrast Ratio: 1,000:1

Power Description

  • Operating Power Consumption: 50 W
  • Input Voltage:
    • 110 V AC
    • 220 V AC

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Surface Acoustic Wave

Warranty

  • Limited Warranty: 3 Year

Audio

  • Speakers: Yes

Built-in Devices

  • Built-in Devices: Speaker

The Elo E902744 is also known as Elo Touch Systems ELO-E902744 .
