Elo 1517L

AccuTouch, USB, NO-BEZEL VGA VIDEO, BLACK

Touch screen Monitor
$489.60

Add to cart to view shipping costs

Ships in 24-48 hours

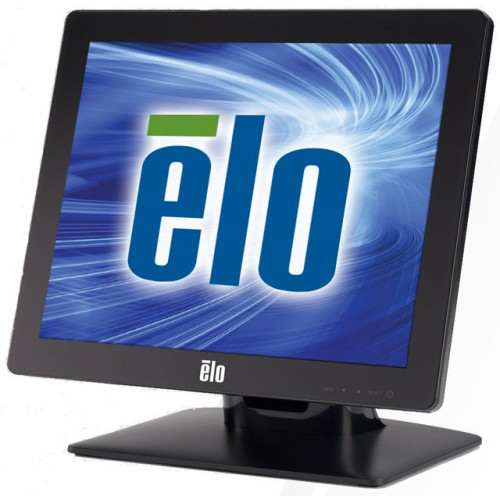

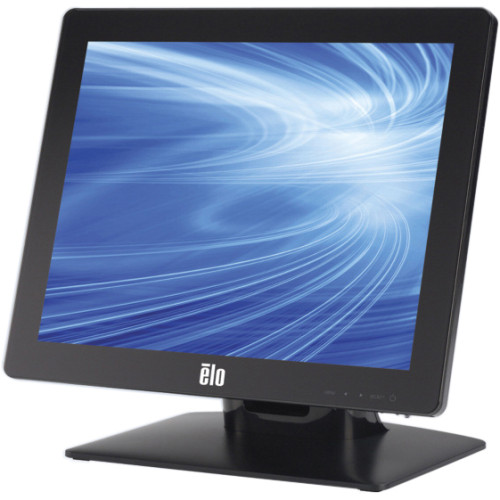

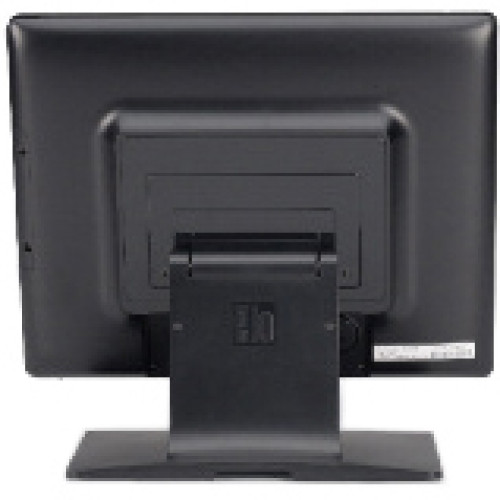

Elo 1517L Touch screen Monitor

The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.

Full specifications (PDF)

Manufacturer part number: E999454

Technical Information

  • Horizontal Viewing Angle: 160°
  • Vertical Viewing Angle: 140°
  • Backlight Technology: LED
  • Screen Mode: XGA-2
  • Features: Security Lock
  • Mount Type: Desk Mountable
  • Screen Size: 15"
  • Aspect Ratio: 4:3
  • Response Time: 25 ms
  • Screen Surface: Anti-glare

General Information

  • Product Type: LCD Touchscreen Monitor
  • Brand Name: Elo
  • Manufacturer: Elo Touch Solutions, Inc
  • Product Model: 1517L
  • Product Name: 1517L Rev A Multifunction 15-inch Desktop Touchmonitor

Physical Characteristics

  • Weight with Stand (Approximate): 9 lb
  • VESA Mount Compatible: Yes
  • VESA Mount Standard: 75 x 75
  • Height with Stand: 12.50"
  • Width with Stand: 14.10"
  • Depth with Stand: 6.80"
  • Color: Black

Interfaces/Ports

  • USB: Yes
  • VGA: Yes
  • USB Standard: USB 1.1

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • China RoHS
    • WEEE
  • Certifications & Standards:
    • IEC 60320 C6
    • C-Tick
    • Canada cUL
    • IC
    • China CCC
    • Europe CE
    • Japan VCCI
    • Korea KCC
    • e-Standby
    • Mexico CoC
    • Taiwan BSMI Mark
    • United States UL
    • FCC
    • International CB
    • IMERC
    • IEC 60320 C6
    • C-Tick
    • Canada cUL
    • IC
    • China CCC
    • Europe CE
    • Japan VCCI
    • Korea KCC
    • e-Standby
    • Mexico CoC
    • Taiwan BSMI Mark
    • United States UL
    • FCC
    • International CB
    • IMERC
  • Package Contents:
    • 1517L Rev A Multifunction 15-inch Desktop Touchmonitor
    • Detachable touch cable
    • Video cable
    • Power Cable
    • 1517L Rev A Multifunction 15-inch Desktop Touchmonitor
    • Detachable touch cable
    • Video cable
    • Power Cable

Video

  • Standard Refresh Rate: 75 Hz
  • Brightness: 250 Nit
  • Color Supported: 16.2 Million Colors
  • Maximum Resolution: 1024 x 768
  • Contrast Ratio: 700:1

Power Description

  • Operating Power Consumption: 10 W
  • Input Voltage:
    • 110 V AC
    • 220 V AC

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: 5-wire Resistive

Warranty

  • Limited Warranty: 3 Year
