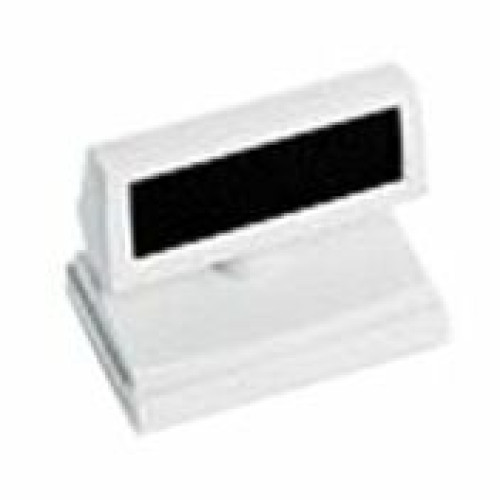

A61B133A8990 - Epson DMD110 Customer & Pole Display

The Epson DMD110 features a 20-column, 2-line display that shows customers a significant amount of data that is easy to read. The DMD110 is supported by the ESC-POS command set and thanks to a pass-through function the DMD110 can control the printer providing flexibility and ease of use.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
A61B133A8990 DMD110, Display, Pole, Cable and AC Adapter. Color: Cool White
Information:   |  Download Epson DMD110 driver  |  Specifications  |  Epson's DMD110 page  |
Accessories:   |  Accessories/Options  |

A61B133A8990 Details

Technical Information

  • Display Method: Vacuum Fluorescent Display (VFD)
  • Display Color: Green
  • Number of Characters: 20x2
  • Brightness: 690 cd/m2
  • Buffer Size: 80 bytes
  • Character Font: 5 x 7 Dot Matrix
  • Character Type: Alphanumeric
  • Character Size: 3.5mm x 5.0mm
  • Character Pitch: 5.2 mm
  • Download Characters: 95 Characters
  • Reliability: 20000 Hour(s) MTBF
  • Interfaces/Ports: RS-232
  • Connectors: DB-9 Female Connector
  • Input Voltage: 12 V DC

General Information

  • Manufacturer: Epson
  • Product Line: DM
  • Product Name: DM-D805-101 Pole Display

Physical Characteristics

  • Dimensions:
    • 2.72" (69mm) - DM-D110 head
    • 12.95" (329mm) - DM-D110 head with DP-505 base
    • 17.68" (449mm) - DM-D110 head with DP-505 base and extension strut
  • Color: White

Agency Approvals

  • Agency Approvals:
    • VCCI Class A
    • FCC Class A
    • CE marking
    • UL/CSA/EN60950

Other

  • Package Contents:
    • DM-D805-101 Pole Display
    • Cables
    • An AC power adaptor

The Epson A61B133A8990 is also known as Epson POS Products EPS-D805101 .
