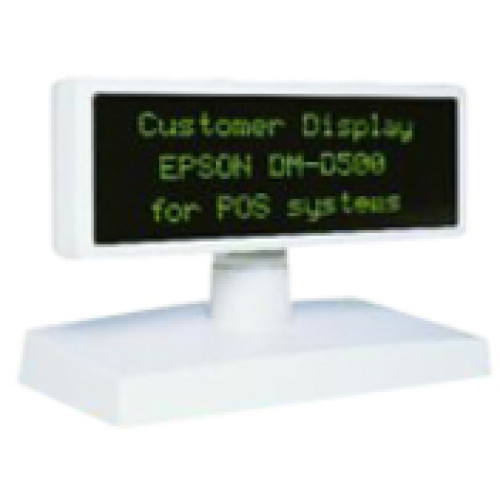

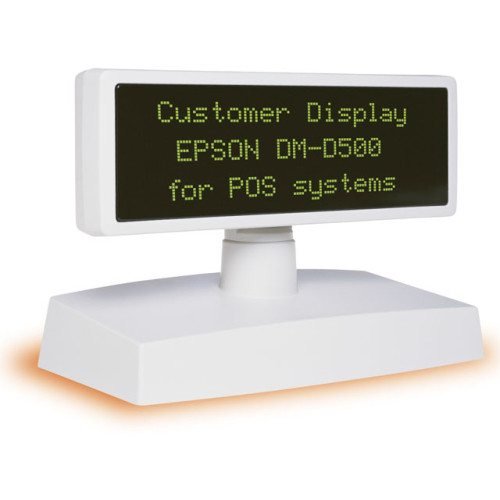

B113101 - Epson DMD500 Customer & Pole Display

The Epson DMD500 customer display is a high performance pole display that provides a wide range of clear, easy-to-read characters and graphics. Built by the leader in POS technology, the Epson DMD500 customer display offers a high-resolution, fluorescent, largescreen display with a wide viewing area up to 42 columns wide x 8 lines high.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
B113101 DMD500, RS-232 Display Unit. Base not included. Color: white
Information:   |  Download Epson DMD500 driver  |  Specifications  |  Epson's DMD500 page  |
Accessories:   |  Accessories/Options  |

B113101 Details

Technical Information

  • Display Method: Vacuum Fluorescent Display (VFD)
  • Display Color: Green
  • Number of Characters: 20x2
  • Brightness: 300 cd/m2
  • Buffer Size: 4096 bytes
  • Character Font: 5 x 7 Dot Matrix
  • Character Type:
    • Alphanumeric
    • International
    • Graphic
  • Character Pitch: 0.55 mm
  • Download Characters: 132 Characters
  • Reliability: 30000 Hour(s) MTBF
  • Interfaces/Ports: RS-232
  • Input Voltage Range: 12 to 48 V DC

General Information

  • Manufacturer: Epson
  • Product Name: DM-D500 Customer Display

Physical Characteristics

  • Dimensions:
    • 83mm (3") x 213mm (8") x 51mm (2")
    • 83mm (3") x 213mm (8") x x 51mm (2")
  • Weight: 460 g
  • Color: White

Agency Approvals

  • Agency Approvals: VCCI class A FCC Class A CE UL CSA TUV (EN 60950)
Part # Description Availability Price Order
B117101 Epson DP-503-101 Pole Unit for TM-H5000II (internally attached)
Ships Free in 3-5 Days
$31.00
B116101 Epson DP-502-101 Pole Unit for TM-H6000II, TM-U950, and TM-U675 (externally attached)
Ships Free in 3-5 Days
$31.88
Retail $37
Save 13%

The Epson B113101 is also known as Epson POS Products EPS-DMD500101 .
