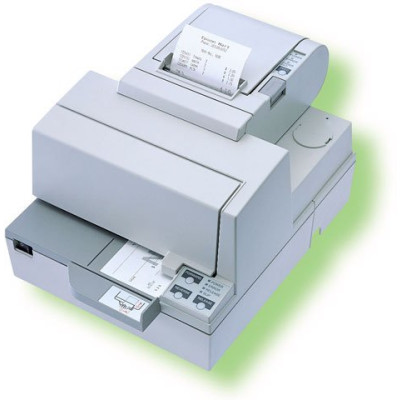

Epson TM-H5000 II Printer

Epson TM-H6000 ii A newer version of this item is available.
It is replaced by the Epson TM-H6000 ii.
See below for remaining inventory available for purchase.
The TM-H5000 II can print perfect receipts with a dot matrix printhead capable of printing slips up to A4 size! This silent but quick performing model is easy-to-use, and great for many different applications. It will save you time and effort with the Epson EZLOAD loading system and an automatic-cutter, too!
Questions?
1-888-875-7170
We respond to every email

Item Condition

TM-H5000 II Options
Part # DescriptionAvailabilityPriceOrder
C31C249012 TM-H5000II, NO MICR, PARALLEL, BUILT TO ORDER, MUST HAVE NON CANCELABLE, NON RETURNABLE PO
Ships Free in 3-5 Days
$566.88
Retail $868
Save 34%
C31C246192 TM-H5000 II, NO INTERFACE, ECW, Auto-cutter, NO MICR, PS-180-343 NOT INCLUDED
Ships Free in 3-5 Days
Call for Details
C31C246A8931 TM-H5000 II, U03 INTERFACE, ECW, Auto-cutter, NO MICR, PS-180-343 NOT INCLUDED Check Availability Call for Details
C31C246012 TM-H5000 II, 15A2/17A2 1GB COMPACT FLASH MEMORY Check Availability Call for Details
C249011 TM-H5000 II, Thermal & Impact, receipt & slip printing, parallel interface. Includes auto-cutter. Order cables & power supply/AC adapter separately. See accessories. Color: white. Check Availability Call for Details
C246990 TM-H5000 II, Thermal & Impact, receipt & slip printing, parallel interface. Includes MICR & auto-cutter. Order cables & power supply/AC adapter separately. See accessories. Color: white. Check Availability Call for Details
C246021 TM-H5000 II, Thermal & Impact, receipt & slip printing, serial interface. Includes MICR & auto-cutter. Order cables & power supply/AC adapter separately. See accessories. Color: white. Check Availability Call for Details
C246011 TM-H5000 II, Thermal & Impact, receipt & slip printing, serial interface. Includes auto-cutter. Order cables & power supply/AC adapter separately. See accessories. Color: white. Check Availability Call for Details

Accessories

Part # DescriptionAvailabilityPriceOrder
C825343 110/220V power supply/AC adapter with cord Ships Free Today $32.99
Retail $45
Save 26%
C823891 Parallel Connect-IT card. Ships Free Today $33.92
Retail $42
Save 19%
205498100 AC CABLE FOR PS-180 (T88V) AND PS-11 (P60II/P80) Ships Free Today $11.05
C32C814596 Power supply Housing Box Kit (Dark gray) for the T88V Ships Free Today $17.32
010842A Cable (3 meters, 24V PoweredUSB to Standard USB (B) and HOSIDEN-M Power and) - Color: Dark gray Ships Free Today $33.46
Retail $45
Save 25%
C32C845040 Universal Mounting Bracket, Wall Hanging Bracket (for the Epson U220, T88IV, T88V, U230, T90, L90). Ships Free Today $39.26
Retail $51
Save 23%
C32C814612 Power supply Box Kit for the U220, Color: Dark gray. Ships Free Today $17.32
C32C823950 Connect-it PoweredUSB interface card, no emulation connection interface Ships Free Today $47.51
Retail $66
Save 28%
C823361 Serial Connect-IT card. with 1K buffer. Ships Free Today $33.97
Retail $42
Save 19%
EPSON-003G Cable, Null Modem Serial, DB-9F to DB-25M, 10 feet, Gray. Ships Free Today $16.27
214845401 AC ADAPTER C FOR TM SERIES PRI NTERS Ships Free Today $27.77
Retail $38
Save 26%
CEPS-003 Cable, 6 feet, DB-9 Female - DB-25 Male Ships Free Today $15.23
C32C824121 USB Connect-IT card with DM port (for pole display), no hub. Ships Free Today $75.99
Retail $115
Save 33%
C32C823991 Connect-It USB Interface Card for the T88IV and H6000 TranScan Only, On Board USB Interface Ships Free Today $58.97
Retail $86
Save 31%
EPSON-003 Null Modem Cable, 10 feet, DB-9F - DB-25M, Cool White Ships Free Today $16.27
CEPS-6PUSB PoweredUSB Cable, 6 foot Ships Free Today $35.08
Retail $44
Save 20%
CEPS-USBG USB A to B Cable (Dark gray) Ships Free Today $16.27
C32C890634 OT-BZ20-634 Optional External Buzzer (for the T88V and T20) Ships Free Today $34.20
Retail $40
Save 14%
S015329 Fabric Ribbon For Epson Fx-890 Ships Free Today $15.25
C823893 USB Interface (with DB-9 Serial) Ships Free Today $79.68
Retail $123
Save 35%
C12C824431 Serial adapter Type B - RS-232 Ships Free Today $66.27
Retail $88
Save 24%
02798 Cables, 6ft Parallel printer cable. Replaces (Part# PCM-1100-06). Ships Free Today $15.32
C32C824071 On board PoweredUSB interface. Ships Free Today $47.51
Retail $66
Save 28%
B134101 DM-D210-101 Large Display Head with Pole for all Epson Printers - must order with base (Part# B132101) Ships Free Today $221.71
Retail $345
Save 35%
1235960 Auto-cutter Unit TM-U220 A & B. (non-cancelable, non-returnable) Ships Free Today $30.12
B131101 DP-110-101 Small Standalone Base for Small Display Ships Free Today $102.24
Retail $156
Save 34%
C32C823861 UB-S09, ACCESSORY, CONNECT-IT INTERFACE, SERIAL WITH DISPLAY MODULE (POLE DISPLAY) PORT - SAME AS C823861 Ships Free Today $43.00
Retail $54
Save 20%
CEPS-BEEPER Coupler with beeper, 2 inch and 4 inch, RJ-11 cables, annunciator Ships Free Today $29.86
Retail $34
Save 12%
CEPS-002 Cable (3 feet, Bi-Directional Parallel) Ships Free Today $13.14
C825343 SI Universal Power supply for printer Ships Free Today $32.99
Retail $45
Save 26%
WAC815021 JOURNAL LOCK KIT FOR TM-U950
Ships Free in 3-5 Days
$84.27
Retail $111.50
Save 24%
T671000 INK MAINTENANCE BOX FOR WORKFORCE PRO PRINTERS
Ships Free in 3-5 Days
$23.50
S020271 Ink cartridge for Epson TM-J2000 series. Color: Black
Ships Free in 3-5 Days
$39.18
Retail $51
Save 23%
S015335 FX-2190/LQ-2090 Ribbon Cartridge
Ships Free in 3-5 Days
$26.88
CS2B15WS MICR CLEANING SHEETS, J9000/ J9100,15 PER BOX
Ships Free in 3-5 Days
$31.95
Retail $38
Save 15%
CEPS-USB USB A/B cable for receipt printers, 10 ft.
Ships Free in 3-5 Days
$16.27
CEPS-SB4525 Serial.Cable, "FULLY WIRED" RJ45-DB-25M, 10 feet, gray.
Ships Free in 3-5 Days
$17.32
CEPS-RJ4525X Null modem cable, RJ45 TO DB-25M, 10 ft.
Ships Free in 3-5 Days
$17.32
CEPS-RJ4525 Cable (30 inches, Dark gray) to Connect IBM SurePOS 5X2 System to T88III Printers
Ships Free in 3-5 Days
$17.32
CEPS-P7 Cable (8 feet, IBM P7)
Ships Free in 3-5 Days
$37.00
CEPS-CAT5YEL 3" CAT5E YELLOW PATCH CABLE with BOOT
Ships Free in 3-5 Days
$13.14
CEPS-3PUSB PoweredUSB Cable (3 feet)
Ships Free in 3-5 Days
$30.90
Retail $37
Save 16%
CEPS-012 Cable (6 feet, DB-9 M to DB-25 M, Null Modem)
Ships Free in 3-5 Days
$15.23
CEPS-011 Null modem cable, DB-9F TO DB-25F, 10 ft.
Ships Free in 3-5 Days
$16.27
CEPS-008 Power cord (6 feet, Right Angle UL)
Ships Free in 3-5 Days
$15.23
CEPS-006G Cable, 6 feet, DB-9F-DB-9F, Null Modem, Gray
Ships Free in 3-5 Days
$15.23
CEPS-001 DB-9 (F) DB-25 (M) 3' Null Modem cable.
Ships Free in 3-5 Days
$14.18
C890031 Dual Fastener (Velcro Tape) Ships Free Today $13.27
C823871 UB-UO1-11 USB Interface with 2 Port Hub
Ships Free in 3-5 Days
$90.06
Retail $145
Save 37%
C823861 Serial Interface Cable, 9-Pin Connector with DM-D Pole Display Port
Ships Free in 3-5 Days
$41.26
Retail $54
Save 23%
C815211 Paper Roll Spacer (58/60 MM) for the TM-T90
Ships Free in 3-5 Days
$9.00
C814461 Ibm Systems, Accessory, Pole Display Bracket For Ibm Systems, Used With Filler Plate C814471
Ships Free in 3-5 Days
$17.32
C813641 PT-6000 tray for TM-H6000
Ships Free in 3-5 Days
$23.59
Retail $25
C806381 High Capacity Cut Sheet Feeder (FX-890/880, LQ-570/590/870)
Ships Free in 3-5 Days
$140.05
C806371 CUT SHEET FEEDER FOR IMPACT PR INTERS LX-300+ & LX-300+II
Ships Free in 3-5 Days
$71.00
C32C845A8990 TM-U200 Receipt Printer Accessories, TM-U230 Power supply Box (White)
Ships Free in 3-5 Days
$15.50
C32C825A8971 Power supply, with TM-290 Power cord, 110/220V AC Power supply
Ships Free in 3-5 Days
$67.20
Retail $94
Save 28%
C32C824A8921 UB-E03 Ethernet CARD, MPOS FRIE NDLY
Ships Free in 3-5 Days
$114.40
Retail $142
Save 19%
C32C824531 UB-ILS-R, INTELLIGENT LABELING WPA2, with SERIAL PORT, MINI USB
Ships Free in 3-5 Days
$236.00
C32C824111 USB Connect-IT card with hub.
Ships Free in 3-5 Days
$90.06
Retail $137
Save 34%
C32C824092 On Board USB Interface (with DB-9 Serial) for the T88IV and TransScan
Ships Free in 3-5 Days
$77.73
Retail $118
Save 34%
C32C823893 CONNECT-IT INTERFACE, USB WITH DB-9 SERIAL, UB-U09 Ships Free Today $79.68
Retail $123
Save 35%
C32C814595 T88V POWER SUPPLY BOX KIT, ECW
Ships Free in 3-5 Days
$17.70
C32C814591 Power supply covering box (Cool White) for the TM-T88IV.
Ships Free in 3-5 Days
$17.32
C12C824352 10/100BASE-TX Card for the FX890, FX2190, DFX9000, LQ590 and LQ2090
Ships Free in 3-5 Days
$287.12
C12C817011 OPTIONAL 250-SHEET PAPER TRAY FOR WORKFORCE PRO PRINTER
Ships Free in 3-5 Days
$103.88
BOX-T88V Box Kit (Box, Protective Bag and Padding) for the T88V. Non-Cancelable/Non-Returnable.
Ships Free in 3-5 Days
$18.36
B139101 DP-505-101ECW, Standalone BASE with DB-9 CONNECTOR
Ships Free in 3-5 Days
$33.10
Retail $42
Save 21%
B133101 DM-D110-101 Small Display Head for all Epson Printers - must order with base (Part# B131101)
Ships Free in 3-5 Days
$104.54
Retail $160
Save 34%
B11B2026201 DS30 PORTABLE DOCUMENT SCANNER
Ships Free in 3-5 Days
$179.99
B117101 DP-503-101 Pole Unit for TM-H5000II (internally attached)
Ships Free in 3-5 Days
$31.00
B116111 DP502 Pole Unit (for the H6000, U950, U675 and NT Series) - Color: Dark gray
Ships Free in 3-5 Days
$31.88
Retail $37
Save 13%
B116101 DP-502-101 Pole Unit for TM-H6000II, TM-U950, and TM-U675 (externally attached)
Ships Free in 3-5 Days
$31.88
Retail $37
Save 13%
B098101 DP-105-101 Pole Extension for all DP110 and DP5XX
Ships Free in 3-5 Days
$20.42
256TPPSPL MICR Cleaning Sheet (One Sheet) for the H6000 and U675 Printers
Ships Free in 3-5 Days
$11.05
208178604 Power, AC Adapter C (for the U220, U325 and CaptureOne Series)
Ships Free in 3-5 Days
$29.55
Retail $38
Save 22%
1422993 Spare Part, Tm-T88Iv, Cover, Roll Paper, Used In Tm-T88Iv, Non-Cancelable, Non-Returnable
Ships Free in 3-5 Days
$15.18
1421223 Cover and roll paper for Printers. Non-Cancelable/Non-Returnable.
Ships Free in 3-5 Days
$12.59
1303236 Auto-cutter Unit. Non-Cancelable/Non-Returnable.
Ships Free in 3-5 Days
$34.07
1090916 Auto-cutter REPLACEMENT FOR TM-T88II. Non-Cancelable/Non-Returnable.
Ships Free in 3-5 Days
$88.00
1040105 COVER MAIN ASS'Y Dark gray TM-U220B. Non-Cancelable/Non-Returnable.
Ships Free in 3-5 Days
$33.17
1040090 CASE UPPER AC TM-U200. Non-Cancelable/Non-Returnable.
Ships Free in 3-5 Days
$31.79
030192A POWER CABLE, 3', WITH HOSIDEN CONNECTOR (20V)
Ships Free in 3-5 Days
$22.54
Retail $25
011139A Cable, Assembly (5 feet, USB, Black) for the TM-P60
Ships Free in 3-5 Days
$53.76
Retail $75
Save 28%
010522A PARALLEL BUFFER INTERFCE 24KB, CENTRONICS CONNECTOR Ships Free Today $74.48
Retail $113
Save 34%
B132101 DP-210-101 Large Standalone Base for Large Display Ships Free Today $99.42
Retail $138
Save 27%
C32C824131 USB2 Connect-IT card no DM port or hub. Ships Free Today $58.97
Retail $86
Save 31%
Recommended Receipt Paper
AirTrack Receipt Paper (RPT3.125-STD)
Thermal Receipt Paper, 3.125" x 230', 7/16" core, 2.75" outer diameter. Single roll.
Ships in 3-5 Days
$4.25
+ Add to Quote

Epson TM-H5000 II Details

The TM-H5000 II is a 2.5 station printer highly suitable for POS applications with its 40 columns of receipt/journal printing per station and 86 columns of slip. This printer's user friendly features and compact design add to its flexibility. Featuring optional check printing and endorsement capabilities, the TM-U950 prints one original and four copies for added convenience.

2.5 Station Printer

TM-H5000 II Print method

9-pin, serial impact dot matrix

Font

7x9 / 5x9

Column capacity (columns)

Journal or Receipt: 40/30 Slip: 88/66

Character size (mm)

1.3(W) x 3.1(H)/1.6(W) x 3.1(H)

Print Font

Character set

95 Alphanumeric 32 International 128 x 8 Graphic

Characters Per Inch

16.7 cpi / 12.5 cpi

Interface Options

RS-232C / Centronics (on plan)

Data buffer

2K bytes or 32 bytes

Print speed

311 / 233 cps (lps: Lines Per Second)

Paper

Dimensions (mm)

Receipt: Roll paper 69.5 + 0.5(W) x Ø83

Slip: 70(W) x 70(L) to 210(W) x 297(L)

Thickness (mm)

Receipt: 0.06 to 0.09 Slip: 0.09 to 0.36

Copy capacity

One original and four copies (for Slip)

Ink ribbon

ERC-31 (purple, black)

Power

24 VDC +- 10%

TM-H5000 II Power consumption

Approx. 43 W

D.K.D. function

2 drive

Reliability

Mechanism (MCBF)

5 x 106 lines

Head (Life)

150 x 106 characters

Overall dimensions

251(W) x 298(D) x 193.7(H) mm

Weight (Approx.)

5.6kg

EMI standard

VCCI #1, FCC class A, CE marking

Power supply

PS-150

TM-H5000 II Safety standard

UL / C-UL / TUV

Options

Journal lock MICR device

The Epson TM-H5000 II is also known as the Epson POS Products TM-H5000 II .
