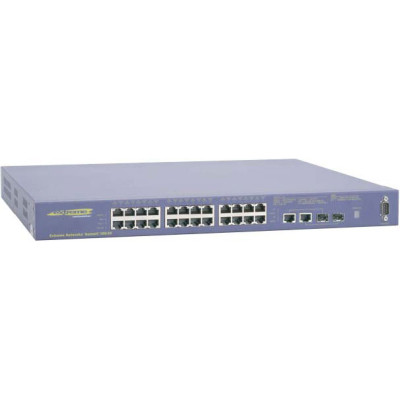

Extreme Summit 300-24

The Extreme Summit 300-24 has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

The Summit 300-24 provides 24 ports of 10/100 Ethernet with four physical Gigabit Ethernet uplinks (two active and two redundant). With its integrated PoE, the Summit 300-24 can power up to 24 Class 3 (15.4 watt) devices such as Voice over IP (VoIP) phones, surveillance cameras, and badge readers. Every port delivers a vast array of ExtremeWare Layer 3 and Layer 2 features ranging from OSPF routing and advanced Quality of Service (QoS) classification to the latest advancements in security.
Summit 300-24 Options
Part # DescriptionAvailabilityPriceOrder
13246 Summit 300-24, Voucher, Summit 300-24 Advanced Edge ExtremeWare Upgrade License. Includes wireless Check Availability Call for Details
13245 Summit 300-24, 24 10/100 ports with Power over Ethernet, 2 1000BT, 2 mini-GBIC, Edge EW Check Availability Call for Details

Extreme Summit 300-24 Details

  • 2 10/100/1000BASE-T copper ports and 2 mini-GBIC ports deliver two active gigabit uplinks for greater throughput and two redundant uplinks for high availability
  • 24 10/100 auto-negotiating Ethernet ports in a 1 RU footprint allow more network connections per inch of rack space
  • 255 port-based and MAC-based VLANs
  • 4 Gigabit Ethernet uplink ports, 2 active and 2 redundant with Layer 1 failover
  • 4 hardware queues per port
  • 8,191 MAC addresses
  • 8.8-Gbps switch fabric, enabling all 10/100 ports to operate at wire speed
  • ACLs for optimal security and diverse traffic classification
  • Flow-based central rate limiting can be applied to any classified packet flow
  • Nonblocking wire speed architecture
  • Single AC power supply provides 370 watts of available power for PoE, supporting up to 24 IEEE 802.3af Class 3 (15.4W) devices. External redundant power supply available optionally
