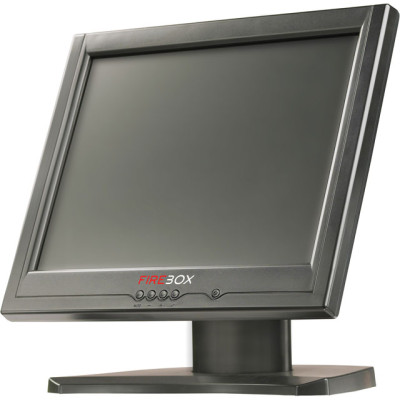

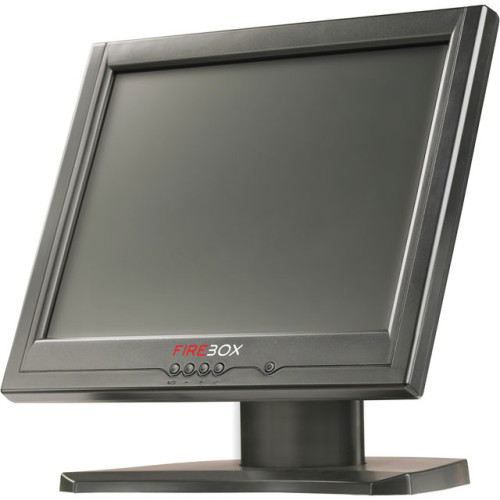

Firebox S5500 Touch screen Monitor

The Firebox S5500 has been discontinued. No direct replacement is available.
Please contact us for a suitable substitute.

Intended for the price conscious consumer, this series delivers an attractive, slim, space saving design with a no nonsense attitude. Our price leader, the S5500 Series incorporates a bright 15" TFT LCD, with either resistive or capacitive touch sensors which are available in serial, USB or dual touch interfaces. The ability to easily integrate an MSR or Biometric scanner coupled with stability of our base makes this touch monitor a winner no matter the application.
We respond to every email
S5500 Options
Part # DescriptionAvailabilityPriceOrder
U09-M150-B-BSE S5500, NO TCH, NO SPKERS, 15IN, BLCK, UMNT BSE INCLD See Replacement Call for Details
U09-T150DR-B S5500, 15IN black TFT, 5 WIRE RESISTIVE, USB/Serial, NO SPKR Check Availability Call for Details


Part # DescriptionAvailabilityPriceOrder
U09-APMB Pole Display, Black, Adjustable Height, Cable Management
Ships Free in 3-5 Days
Retail $95
Save 20%

Firebox S5500 Details

LCD Panel 15" TFT LCD Active Matrix Display
Resolution 1024 x 768 Pixel, 16.7M Colors
Contrast Ratio 450:1


250 cd/m2

Response  Time

12 ms

Pixel Pitch

0.297 mm x 0.297 mm

Plug & Play

DDC 2B Compliance

OSD (On Screen Display)

AutoTune, Brightness, Contrast, Clock,
Phase, H-position, V-position, Recall

Touch Technology

5 Wire Resistive or Capacitive

Touch Interface

USB, Serial or Dual

Operating Environment

0ºC-40ºC (32ºF-104ºF)
10%-80% (no condensation)

Storage Conditions

-20ºC-60ºC (-4ºF-140ºF)
10%-90% (no condensation)

Product Dimension (W/H/D) mm

13.5"(343mm) x 14.3"(363mm) x 7.3"(185mm)

Package Dimension (W/H/D) mm

18.6"(472mm) x 17.5"(444mm) x 8.2"(208mm)

Weight Gross

15.80 Lbs (7.16 kg)

Stand Style

U-Mount Cable Management Base

Mounting Option

Desktop Placement, Bolt Down, & VESA Mountable

Monitor Tilting Degree

160 Degree



Viewing Angle


Backlight MTBF

50,000 Hours

PC Video Interface

Analog RGB (VGA)

Horizontal scan rate (KHz)

30 ~ 60 KHz

Vertical scan rate (Hz)

56 ~ 75 KHz

Display Mode

VGA 640x480 (60/66/70/72/75 Hz)
SVGA 800x600 (60/70/72/75 Hz)
XGA 1024x768 (56/70/75 Hz)

Front Control

Power On/Off with LED, Menu
AutoTune, Adjustment (+/-)

Built-in Speaker


Electrical Power

Adapter Input 100-240 VAC,50-60HZ 1.5A
Adapter Output 12 VDC, 3.33A (C+)

Power Consumption

30W (Max)
