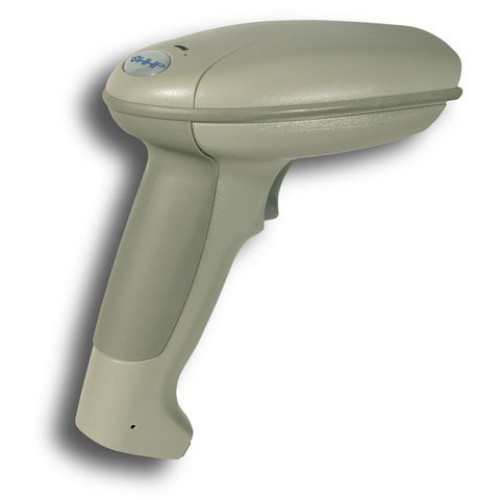

Photo of Hand Held 3800LR-12BLKE Hand Held logo

Hand Held IT3800

Long range high-performance linear imager, Commercial interface. No cable, see accessories. Color: Black.

This part is replaced by 3800G14E.
Call for Details



Hand Held IT3800 Scanner

This durable model is excellent in handheld scanning applications, such as point of sale where hand scanning is required for large bulky items, shipping and warehousing or anywhere where low to medium density bar codes are being read 2 to 3 feet away. The IT3800 can be used indoors or outside in bright sunlight.

Full specifications (PDF)

Manufacturer part number: 3800LR-12BLKE

Technical Information

  • Form Factor: Handheld Scanner
  • Resolution: 3 mil(s)
  • Symbologies Supported:
    • Codabar
    • Code 3 of 9 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Postal Code
    • RSS
    • PDF 417
  • Scanner Type: Linear Imager
  • Scan Rate: 270 Decodes per second
  • Interface Options:
    • Keyboard Wedge
    • Wand Emulation
    • RS-232
    • HHLC Non-decoded Laser Compatible
    • USB
  • Interface Connectivity: Corded
  • Scan Pattern: Linear
  • Input Voltage: 5 V DC
  • Depth of Field: 1 - 8" - 100% UPC

General Information

Physical Characteristics

  • Dimensions: 6" (152.4mm) x 3.1" (78.74mm) x 5.3" (134.62mm)
  • Weight: 3.6 oz
  • Color: Black

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED Safety: Class 1
    • UL
    • cUL
    • TÜV
    • RoHS

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 122°F (50°C) Operating
    • -4°F (-20°C) to 140°F (60°C) Storage
  • Humidity: 0 to 95%

Warranty

  • Manufacturer Warranty: 5 Year(s)
