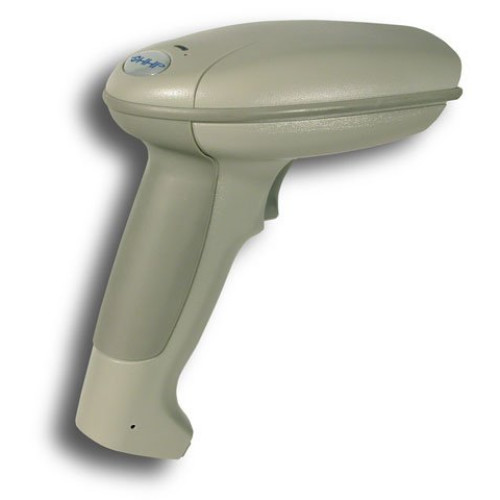

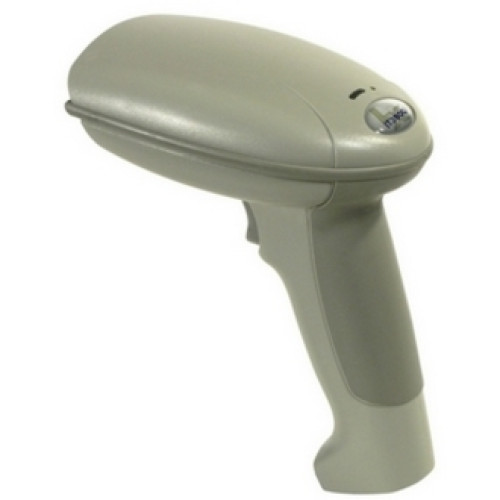

3800LX-12E - Hand Held IT3800 Bar code Scanner

The IT3800 is a high performance handheld bar code scanner. Using unique linear imaging technology the IT3800 sets a new standard in automatic data collection by combining a bright sharp aiming line with high resolution imaging to deliver exceptional performance in any environment. The IT3800 handle is smoothly contoured to fit all sized hands and has a soft grip area to add comfort and prevent slippage. The IT3800 connects to all popular PCs Apple MAC and portable data terminals. Models are available for IBM retail terminals (4683-93 OCIA) and for PDF417 applications as well. The IT3800 is ideally suited to retail point-of-sale in-store inventory document management transaction processing and vehicle registration applications.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
3800LX-12E IT3800, Extended long range linear imager, Decoded output, Commercial interface.
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |

3800LX-12E Details

Technical Information

  • Form Factor: Handheld Scanner
  • Resolution: 6.5 mil(s)
  • Symbologies Supported:
    • Codabar
    • Code 3 of 9 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • RSS Code
    • Matrix 2 of 5
    • Code 11
    • Code 128
    • UPC
    • EAN/JAN
    • China Postal Code
    • RSS
  • Scanner Type: Linear Imager
  • Scan Rate: 270 Decodes per second
  • Interface Options:
    • Keyboard Wedge
    • RS-232
    • Wand Emulation
    • HHLC Non-decoded Laser Compatible
    • USB
  • Interface Connectivity: Corded
  • Scan Pattern: Linear
  • Input Voltage: 5 V DC
  • Depth of Field: 2 - 14" - 100% UPC

General Information

Physical Characteristics

  • Dimensions: 6" (152.4mm) x 3.1" (78.74mm) x 5.3" (134.62mm)
  • Weight: 6.3 oz
  • Color: Beige

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED Safety: Class 1
    • UL
    • cUL
    • TÃ┼ôV
    • RoHS

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 122°F (50°C) Operating
    • -4°F (-20°C) to 140°F (60°C) Storage
  • Humidity: 0 to 95%

Warranty

  • Manufacturer Warranty: 5 Year(s)

The Hand Held 3800LX-12E is also known as HandHeld HHP-3800LX-12E or 3800LX12E .
