3800PDF-12E - Hand Held IT3800 Bar code Scanner

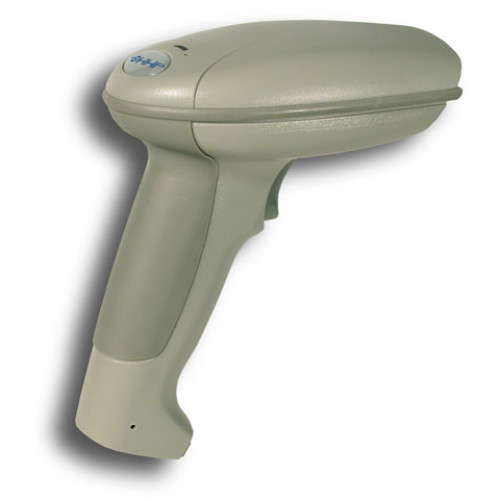

The IT3800 is a high performance handheld bar code scanner. Using unique linear imaging technology the IT3800 sets a new standard in automatic data collection by combining a bright sharp aiming line with high resolution imaging to deliver exceptional performance in any environment. The IT3800 handle is smoothly contoured to fit all sized hands and has a soft grip area to add comfort and prevent slippage. The IT3800 connects to all popular PCs Apple MAC and portable data terminals. Models are available for IBM retail terminals (4683-93 OCIA) and for PDF417 applications as well. The IT3800 is ideally suited to retail point-of-sale in-store inventory document management transaction processing and vehicle registration applications.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
3800PDF-12E IT3800, Scanner only, PDF capable, Long range, HHLC, Commercial interface, RoHS Compliant. Cable not included, See accessories.
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |

3800PDF-12E Details

Technical Information

  • Scan Pattern: Linear
  • Scan Rate: 270 scan/s
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • PDF417
    • Codabar
    • Code 3 of 9 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Postal Code
    • RSS
    • PDF417
    • Codabar
    • Code 3 of 9 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Postal Code
    • RSS
  • Maximum Scan Resolution: 15 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 3800PDF
  • Product Name: 3800PDF Barcode Reader

Physical Characteristics

  • Height: 6"
  • Width: 3.1"
  • Depth: 5.3"
  • Color: Beige
  • Weight (Approximate): 6.30 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED Safety: Class 1
    • UL
    • cUL listed
    • TUV
    • RoHS
  • Platform Supported: PC
  • Additional Information:
    • Supported Interfaces:
    • Keyboard WedgeWand Emulation

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC
Part # Description Availability Price Order
UHOLDERE Hand Held Desktop/wall mount holder for 4600, 4800i, 3800r and 3800i Ships Free Today $15.49

The Hand Held 3800PDF-12E is also known as HandHeld HHP-3800PDF-12E or 3800PDF12E .
