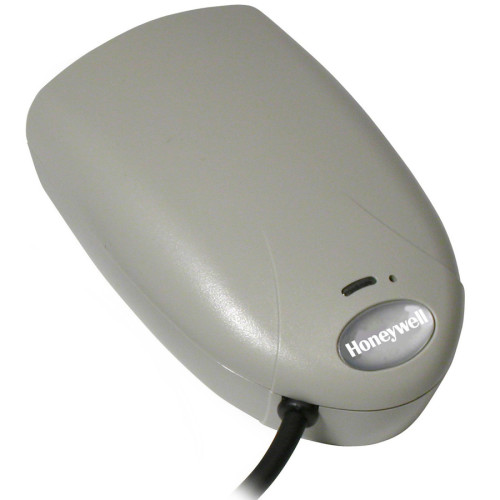

3900-12 - Hand Held Parts Bar code Scanner

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
3900-12 Standard range, Multiple interface trigger, (Requires cable and manual)

3900-12 Details

Technical Information

  • Form Factor: Fixed Mount Scanner
  • Resolution: 3 mil(s)
  • Symbologies Supported:
    • Codabar
    • Code 3 of 9
    • PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Post
    • RSS
  • Scanner Type: LED
  • Scan Rate: 270 Scans/sec
  • Interface Options: Decoded Output Commercial
  • Input Voltage: 5 V DC
  • Depth of Field: 2.5 - 9"@3mils

General Information

  • Manufacturer: Hand Held Products
  • Product Line: IMAGETEAM
  • Product Name: IMAGETEAM 3900 Barcode Scanner

Physical Characteristics

  • Dimensions: 1.5" (38.1mm) x 3.1" (78.74mm) x 4.7" (119.38mm)

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 122°F (50°C) Operating
    • -4°F (-20°C) to 140°F (60°C) Storage
  • Humidity: 0 to 95%

Agency Approvals

  • Agency Approvals: FCC Class B CE EMC Class B CE Low Voltage Directive IEC60825-1 LED Safety: Class 1 UL cUL listed TÃ┼ôV

Warranty

  • Manufacturer Warranty: 5 Year(s)

The Hand Held 3900-12 is also known as HandHeld 3900-12 or 390012 .
