- Offers universal compatibility with all HID proximity readers
- Provides an external number for easy identification and control
- Custom pre-printed artwork available
- Provides extremely consistent read range
- Supports formats up to 85 bits, with over 137 billion codes
- Meets ISO standards for thickness
- Print directly to the card with a direct image or thermal transfer printer
- Accepts either a horizontal or vertical slot punch
- Using HID"s ProxProgrammer, card vendors can ship graphics-qualityproximity cards, custom programmed to their customers" requirements, from their own inventory
- Lifetime warranty against defects in materials and workmanship

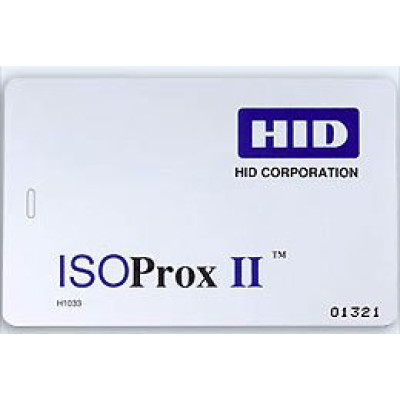

The ISOProx II Card offers proximity card technology with photo
identification capability on a single access control card. It is
ISO 7810 compliant, with a nominal thickness of .030". The card
features a graphics quality surface optimized for Photo ID
printing, and is available in standard PVC construction, or a
composite polyester/PVC construction for more demanding high wear
and tear environments. Like all HID ISO cards, the ISOProx II
proximity card can be produced with visual security and
anti-counterfeiting features such as holograms, ultra-violet
fluorescent inks, micro-printing, or a custom logo to quickly and
easily identify genuine cards for ultimate access control. When
customizing cards using Re-Transfer Printers that fuse images to
the surface of the card by applying heat and pressure (such as the
Fargo HDP5000) we recommend the use of composite cards, which are
better able to withstand the higher application temperatures.
Key Features of the ISOProx II Proximity Card:
- Offers proximity card technology with photo identification
capability on a single access control card
- Graphics quality surface for use with direct image
printers
- Same size and thickness as a standard credit card
- Vertical or horizontal slot punch capability
- Lifetime warranty
Typical Maximum* Read Range
ProxPoint Plus reader-up to 2.5" (6.25 cm)
MiniProx reader-up to 5" (12.5 cm)
ThinLine II reader-up to 5" (12.5 cm)
ProxPro reader-up to 7" (17.5 cm)
ProxPro II reader-up to 8" (20 cm)
Prox80-up to 5" (12.7 cm)
MaxiProx reader-up to 20" (50 cm)
*Dependent on local installation conditions.
Dimensions
2.125" x 3.370" x 0.030" x 0.003" (5.4 x 8.6 x 0.076 x 0.0076
cm)
Card Construction
Thin, flexible polyvinyl chloride (PVC) laminate or composite
Polyester/PVC.
Warrarnty
Lifetime
