Photo of Honeywell 3820
Honeywell logo

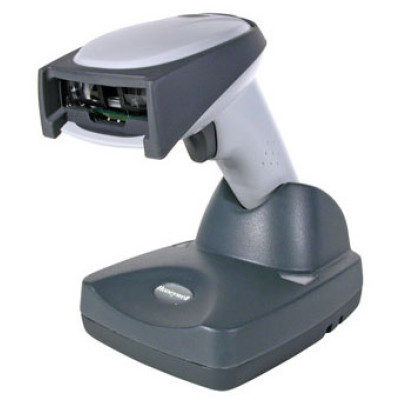

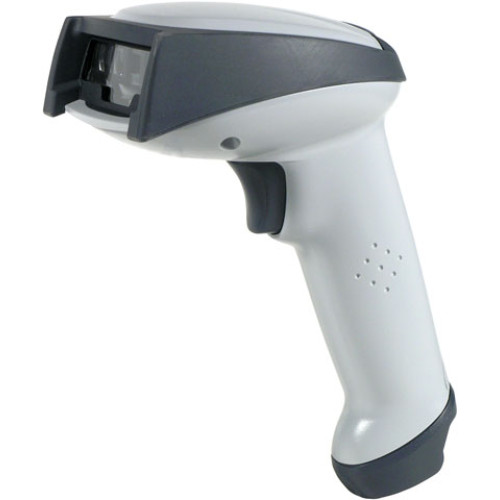

Honeywell 3820 Scanner

Honeywell's 3820 linear image scanner combines exclusive Adaptus Imaging Technology with Bluetooth wireless connectivity to provide class-leading performance and durability for retail and commercial cordless barcode reading. With a 33 foot (10m) working range and 24 inch (61cm) read-range, the 3820 enables the operators to have the freedom of movement required to quickly, safely, and ergonomically read barcode data. With no moving parts and a robust housing design, the 3820 will easily provide years of service in retail and commercial environments, creating a favourable total cost of ownership. And more, this solid-state, no-moving-parts design withstands more than fifty 6-foot (1.8m) drops to concrete.
Questions?
1-888-875-7170
We respond to every email

Form Factor

Connectivity

Scanner Capability

Scanner Type

Item Condition

Scan Pattern

Color

Included Cables ?

Communication Type ?

Ruggedness

3820 Options
Part # DescriptionAvailabilityPriceOrder
3820SR0C0B-0FA0E 3820, USB Kit. 1D Imager. Includes 3.2' straight USB cable, charging/communication cradle, and power supply. Color: White Ships Free Today $578.38
Retail $916
Save 36%
3820SR0C0B-0IA0E 3820, PS/2 Kit, 1D Imager. Includes PS/2 cable, charing/communications cradle, and power supply. Color: White Ships Free Today $559.44
Retail $886
Save 36%
3820SR0C0BE 3820, SCANNER ONLY, 1D Imager, USB/RS-232/PS/2/IBM interfaces. Cradle, cables, and accessories are not included and must be purchased separately. Color: White Ships Free Today $422.39
Retail $676
Save 37%
3820SR0C0B-0FA0E-6 3820, USB Kit. 1D Imager. Includes 3.2' straight USB cable, charging/communication cradle, and power supply. Color: White Ships Free Today $586.14
Retail $916
Save 36%
3820SR0C0B-0IA0E-6 3820, PS/2 Kit, 1D Imager. Includes PS/2 cable, charing/communications cradle, and power supply. Color: White Ships Free Today $572.92
Retail $886
Save 35%
3820SR0C0B-0GA0E-6 3820, Cradle Kit. 1D Imager. Includes charging/communications cradle and power supply. Cradle interface cable not included, must also purchase straight USB cable (Part# 42206161-01E) or coiled USB cable (Part# 42206202-02E). Color: White Ships Free Today $562.35
Retail $900
Save 37%
3820SR0C0B-0GA0E 3820, Cradle Kit. 1D Imager. Includes charging/communications cradle and power supply. Cradle interface cable not included, must also purchase straight USB cable (Part# 42206161-01E) or coiled USB cable (Part# 42206202-02E). Color: White See Replacement Call for Details
3820SR0C0B-0IB0E 3820, EU PS/2 Kit. 1D Linear Imager. Includes PS/2 cable, charging/communications cradle, and EU power supply. Color: White. Check Availability Call for Details

Accessories

Part # DescriptionAvailabilityPriceOrder
42206161-01E Cable, USB, black, Type A, 2.6m (8.5'), straight, host power Ships Free Today $16.95
MB4-BAT-SCN01NAW0 Accessories, 4 Bay Battery Charger for use with 3820, 3820I, 4820, 4820I, 6320DPM Lithium-ion Batteries NA Wallmount Power Supply, Two Mounting Screws, and Instructions. Non-Cancelable/Non-Returnable. Ships Free Today $244.43
Retail $343
Save 28%
BAT-SCN01 Accessories, Battery: Lithium-ion battery for Voyager 1202, 1452g, Xenon 1902, Granit 1911i, Granit 1981i, 3820 and 3820i cordless scanners Ships Free Today $39.93
Retail $56
Save 28%
42206202-02E Cable, USB, black, Type A, 2.8m (9.2'), coiled, host powered Ships Free Today $20.69
42205155-05E Cable, IBM 46xx, black, RS-485 Port 9A/B, 3.1m (10.2'), coiled. Non-Cancelable/Non-Returnable. Ships Free Today $20.69
42203758-04E Cable, RS-232 TTL, Connector: D 9 Pin F connector, TX data on pin 2, external power, coiled Length: 7.7 ft. (2.3m) Ships Free Today $20.69
2020-5BE Compact cordless charging base for 3820, 4620, 4820 and 4820I lithium batteries. Provides host interface and RF link between imager and host. Requires power supply (part #PS-090-2000D-NA). Ships Free Today $192.40
Retail $324
Save 40%
42203758-03SE Cable, RS-232 TTL, Connector: D 9 Pin F, power on pin 9, TX data on pin 2, straight Length: 7.7 ft. (2.3m) Ships Free Today $20.69
42206132-02E Cable, AT - PS/2 & compatibles, wedge Connector: Mini Din 6 PIN M/F Length: 9.2 ft. (2.8m), coiled Ships Free Today $16.95
Retail $20
Save 15%
42205895-01E Cable, RS-232 TTL, black, coiled, 2.3m (7.7'), power from PS/2 keyboard/mouse port. Non-Cancelable/Non-Returnable. Ships Free Today $44.95
Retail $66
Save 31%
42206422-01E Cable, RS-232 TTL, black, DB-9, 2.3m (7.7'), straight, 5v external power. Non-Cancelable/Non-Returnable. Ships Free Today $30.85
Retail $39
Save 20%
HOLSTERE Storage (for 3820, 4820 and 4820I Cordless Imagers and Battery Storage). Non-Cancelable/Non-Returnable. Ships Free Today $37.26
Retail $51
Save 26%
PS-090-2000D-NA Power supply, 9V D/C, 100-240V AC, Includes Power cord (Part# 77900506E), Replaces Part# PS9U-21E.
Ships Free in 3-5 Days
$21.81
MB4-BAT-SCN01NAD06 4-Bay Battery Charger for the 1202g, 3820, 3820I, 4820, 4820i, 1902, and 19011i Lithium Batteries. (Includes North American Desktop Power supply, two mounting screws and instructions) Ships Free Today $244.43
Retail $343
Save 28%
77900506E Power cord, Cable: power cord, power supply to AC outlet, straight, 1.8m (6.0 ft.) - US. Non-Cancelable/Non-Returnable. Ships Free Today $14.46
42206212-02E Cable, Combo kit with resistor Connector: Mini Din or Din PCs and PS/2 Length: 9.2 ft. (2.8m)
Ships Free in 3-5 Days
$30.85
Retail $39
Save 20%
42206203-02E Cable (3800__-15 USB Cable to IBM 9.2 feet USB Power 12V). Non-Cancelable/Non-Returnable.
Ships Free in 3-5 Days
$71.47
Retail $115
Save 37%
42206132-02SE Cable, AT - PS/2 & compatibles, wedge Connector: Mini Din 6 PIN M/F Length: 9.2 ft. (2.8m), straight. Non-Cancelable/Non-Returnable.
Ships Free in 3-5 Days
$20.69
42203758-03E Cable, RS-232 TTL, Connector: D 9 Pin F, power on pin 9, TX data on pin 2, coiled Length: 7.7 ft. (2.3m)
Ships Free in 3-5 Days
$45.28
Retail $66
Save 31%
300000651E Cordless battery charge kit (includes lithium ion battery, battery charge sleeve, retention mechanism, and instructions). Non-Cancelable/Non-Returnable.
Ships Free in 3-5 Days
$105.11
Retail $177
Save 40%
2020-CB-AE Base, With charging function only, No host interface or RF interface, For North America
Ships Free in 3-5 Days
$91.04
Retail $151
Save 39%
200001576E Battery Charge Sleeve For Cordless Imagers, For Use Lithium Ion Battery. Non-Cancelable/Non-Returnable.
Ships Free in 3-5 Days
$34.59
Retail $46
Save 24%
Protect Your Product
Honeywell Service Contract - 1 year (HSVC3820K-W)
3820 with Base Extended Warranty
Ships in 3-5 Days
$59.00
+ Add to Quote
Honeywell Service Contract - 3 year (HSVC4BAY-SMS3)
4-bay battery charger (for use with Xenon 1902, 3820, 3820i, 4820, 4820i & 6320dpm Lithium-ion batteries), 1-Day Turnaround, Comprehensive package
Ships in 3-5 Days
$37.00
+ Add to Quote
Honeywell Service Contract - 1 year (E-HSVC3820K-W)
3820 with Base Extended Warranty Post Sale
Ships in 3-5 Days
$50.00
+ Add to Quote
Honeywell Service Contracts (SVC3820-1LC3)
3820 & base, Limited Comprehen sive, 1 Day Turn, 3 YEAR DayOne
Ships in 3-5 Days
$71.71
+ Add to Quote
Honeywell Service Contracts (SVC3820-1LC5)
3820 & base, Limited Comprehen sive, 1 Day Turn, 5 YEAR DayOne
Ships in 3-5 Days
$113.54
+ Add to Quote

Honeywell 3820 Details

Features and Benefits

High-Performance Linear Scanning: Fast performance and broad read range for ease of use in a variety of linear applications.

Effective Wireless Connectivity: Enables movement up to 33 feet (10m) from the base while its Adaptive Frequency Hopping (AFH) feature eliminates interference with other wireless systems.

Extended Battery Life for Dependable Use: Field-replaceable lithium-ion battery enables up to 57,000 reads per full charge.

Light-Industrial Durability: Built for reliability in light-industrial environments including retail, healthcare and manufacturing.

Multi-Bay Battery Charger: Fully charges up to four lithium-ion batteries in approximately 4.5 hours, maximizing uptime in any application.

Specialization Options: FIPS 140-2 Certified Encryption: Federal Information Processing Standards (FIPS) certified for wireless data transmission, meeting advanced US Government security requirements, and providing enhanced security in any application involving sensitive data.
Honeywell Scanning and & Mobility is a leader in AIDC and the new home for many products formerly available from Hand-Held and Metrologic.
