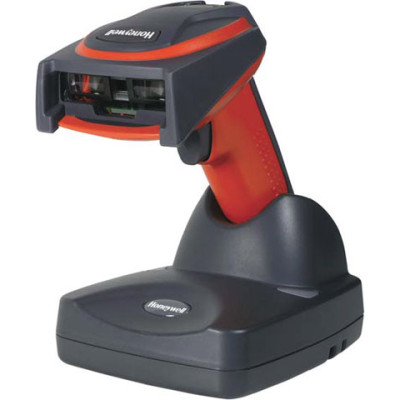

Photo of Honeywell 3820i
Honeywell logo

Honeywell 3820i Scanner

The Honeywell 3820i delivers fast, intuitive barcode reading across a range of high and low density codes - even those that are damaged or poorly printed. In addition, the solid state technology platform adds to the device's overall durability and reliability. Built for scan-intensive applications requiring a ruggedized solution, the 3820i features our highest drop specification and an IP54 rating to guarantee protection against the penetration of dust and liquid. However, unlike other industrial grade solutions, the 3820i features best-in-class ergonomics - ensuring maximum user comfort and productivity. The 3820i features a unique design that not only allows tool-free access to the battery, but also eliminates the need to dock the scanner for charging - a true advantage for operations where downtime is not an option.
Questions?
1-888-875-7170
We respond to every email

Connectivity

Form Factor

Scanner Capability

Color

Scanner Type

Scan Pattern

Included Cables ?

Communication Type ?

Ruggedness

3820i Options
Part # DescriptionAvailabilityPriceOrder
3820ISR-KBWKITAE 3820i, PS/2 kit. Includes cordless scanner, communication/charging cradle, PS/2 cable, power supply, and line cord (US). Non-Cancelable/Non-Returnable.
Ships Free in 3-5 Days
$680.66
Retail $1078
Save 36%
3820ISR-USBKITAE 3820i, USB kit. Includes cordless scanner, communication/charging cradle, USB cable, power supply, and line cord (US).
Ships Free in 3-5 Days
$680.66
Retail $1078
Save 36%
3820ISRE 3820i, Scanner Only. Cradle, cables, power supply, and accessories are not included and must be purchased separately. Non-Cancelable/Non-Returnable. Ships Free Today $495.66
Retail $785
Save 36%
3820ISR-SERKITAE-6 3820i, RS-232 kit. Includes cordless scanner, communication/charging cradle, RS-232 cable, power supply, and line cord (US).
Ships Free in 3-5 Days
$697.06
Retail $1078
Save 35%
3820ISR-SERKITAE 3820i, RS-232 kit. Includes cordless scanner, communication/charging cradle, RS-232 cable, power supply, and line cord (US). Non-Cancelable/Non-Returnable. See Replacement Call for Details

Accessories

Part # DescriptionAvailabilityPriceOrder
42206161-01E Cable, USB, black, Type A, 2.6m (8.5'), straight, host power Ships Free Today $16.95
42205155-05E Cable, IBM 46xx, black, RS-485 Port 9A/B, 3.1m (10.2'), coiled. Non-Cancelable/Non-Returnable. Ships Free Today $20.69
42206202-02E Cable, USB, black, Type A, 2.8m (9.2'), coiled, host powered Ships Free Today $20.69
42203758-04E Cable, RS-232 TTL, Connector: D 9 Pin F connector, TX data on pin 2, external power, coiled Length: 7.7 ft. (2.3m) Ships Free Today $20.69
2020-5BE Compact cordless charging base for 3820, 4620, 4820 and 4820I lithium batteries. Provides host interface and RF link between imager and host. Requires power supply (part #PS-090-2000D-NA). Ships Free Today $193.21
Retail $324
Save 40%
42205895-01E Cable, RS-232 TTL, black, coiled, 2.3m (7.7'), power from PS/2 keyboard/mouse port. Non-Cancelable/Non-Returnable. Ships Free Today $44.95
Retail $66
Save 31%
42206132-02E Cable, AT - PS/2 & compatibles, wedge Connector: Mini Din 6 PIN M/F Length: 9.2 ft. (2.8m), coiled Ships Free Today $16.95
Retail $20
Save 15%
42206422-01E Cable, RS-232 TTL, black, DB-9, 2.3m (7.7'), straight, 5v external power. Non-Cancelable/Non-Returnable. Ships Free Today $30.85
Retail $39
Save 20%
42203758-03E Cable, RS-232 TTL, Connector: D 9 Pin F, power on pin 9, TX data on pin 2, coiled Length: 7.7 ft. (2.3m) Ships Free Today $45.28
Retail $66
Save 31%
PS-090-2000D-NA Power supply, 9V D/C, 100-240V AC, Includes Power cord (Part# 77900506E), Replaces Part# PS9U-21E.
Ships Free in 3-5 Days
$21.81
MB4-BAT-SCN01NAD06 4-Bay Battery Charger for the 1202g, 3820, 3820I, 4820, 4820i, 1902, and 19011i Lithium Batteries. (Includes North American Desktop Power supply, two mounting screws and instructions) Ships Free Today $245.45
Retail $343
Save 28%
77900506E Power cord, Cable: power cord, power supply to AC outlet, straight, 1.8m (6.0 ft.) - US. Non-Cancelable/Non-Returnable. Ships Free Today $14.46
42206212-02E Cable, Combo kit with resistor Connector: Mini Din or Din PCs and PS/2 Length: 9.2 ft. (2.8m)
Ships Free in 3-5 Days
$30.85
Retail $39
Save 20%
300000651E Cordless battery charge kit (includes lithium ion battery, battery charge sleeve, retention mechanism, and instructions). Non-Cancelable/Non-Returnable.
Ships Free in 3-5 Days
$105.11
Retail $177
Save 40%
2020-CB-AE Base, With charging function only, No host interface or RF interface, For North America
Ships Free in 3-5 Days
$91.04
Retail $151
Save 39%
200001576E Battery Charge Sleeve For Cordless Imagers, For Use Lithium Ion Battery. Non-Cancelable/Non-Returnable.
Ships Free in 3-5 Days
$34.59
Retail $46
Save 24%
100003438FRE Gray Tool Free ThumbWheel Endcap (Use with Orange IND Cordless Scanner). Non-Cancelable/Non-Returnable.
Ships Free in 3-5 Days
$37.79
Retail $52
Save 27%
Protect Your Product
Honeywell Service Contract - 1 year (HSVC3820IK-W)
3820i with Base Extended Warranty
Ships in 3-5 Days
$45.00
+ Add to Quote
Honeywell Service Contract - 1 year (E-HSVC3820IK-W)
3820i with Base Extended Warranty Post Sale
Ships in 3-5 Days
$55.00
+ Add to Quote
Honeywell Service Contracts (SVC3820I-1FC3)
3820I & base, Full Comprehensi ve, 1 Day Turn, 3 year DayOne
Ships in 3-5 Days
$71.71
+ Add to Quote
Honeywell Service Contracts (SVC3820I-1FC5)
3820I & base, Full Comprehensi ve, 1 Day Turn, 5 year DayOne
Ships in 3-5 Days
$113.54
+ Add to Quote
Honeywell Service Contracts (SVC3820I-1FCR)
3820I & base, Full Comprehensi ve, 1 Day Turn, 1 year renewal
Ships in 3-5 Days
$37.28
+ Add to Quote

Honeywell 3820i Details

3820i Wireless Industrial-Grade Linear-Imaging Scanner Features and Benefits

Built for Comfort and Reliability in Industrial Applications: Rugged housing is specified to withstand 50 drops from 6.5 feet (2m) and certified to IP54 standards, while still being ergonomic and easy-to-use.

Wireless Connectivity: Bluetooth v2.0 enables movement up to 33 feet (10m) from the base, and reduces interference with other wireless systems.

High Performance Linear Barcode Scanning: Adaptus Imaging Technology 5.0 provides reading of all linear barcodes - even those that are damaged or poorly printed.

Long-Lasting Lithium-Ion Battery with Tool-Free Access: Powers up to 50,000 scans per full charge ensuring maximum uptime. Thumbwheel end-cap allows easy access to the battery, permitting employees to quickly swap batteries and keep working.

FIPS 140-2 Certified Encryption Option: Federal Information Processing Standards (FIPS) certified for secure wireless data transmission, meeting advanced US Government security requirements, and providing enhanced security in any application involving sensitive data.

Honeywell Scanning and & Mobility is a leader in AIDC and the new home for many products formerly available from Hand-Held and Metrologic.
