Photo of Honeywell 4600 g
Honeywell logo

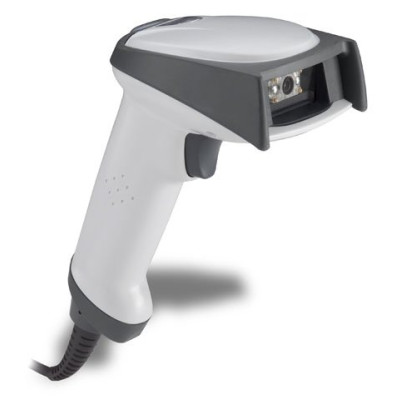

Honeywell 4600 g Scanner

Honeywell Xenon 1900 A newer version of this item is available.
It is replaced by the Honeywell Xenon 1900.
The 4600 g 2D area imager from Honeywell combines the versatility of area imaging with the speed and cost of linear scanning for a wide range of applications. Powered by Adaptus imaging, the 4600 g 2D is full featured, fast, and cost effective.
Questions?
1-888-875-7170
We respond to every email
4600 g Options
Part # DescriptionAvailabilityPriceOrder
4600GSR151CE 4600g, Supports TTL RS-232, USB, Keyboard wedge, IBM 4683, and Wand Emulation / Black / Green LED. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 42206161-01E), PS/2 (Part# 42206132-02E), or RS-232 Serial cables (Part# 42203758-03E) and a Power supply (Part# 46-00525). See Replacement Call for Details
4600GSR051CE 4600g, Standard Range Area Imager with user guide. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 42206161-01E), PS/2 (Part# 42206132-02E), or RS-232 Serial cables (Part# 42203758-03E) and a Power supply (Part# 46-00525). See Replacement Call for Details
4600GSR051C-0F00E 4600g, USB kit with USB cable, Standard Range Area Imager and user guide. Color: Gray. See Replacement Call for Details
4600GSR051C-0A00E 4600g, Keyboard wedge kit with PS/2 cable, Standard Range Area Imager and user guide. Color: Gray. See Replacement Call for Details
4600GSR031CE 4600g, General Purpose 2D Image Scanner, Supports True RS-232, 12V Decode Wedge, Green LED and RoHS. Color: Gray See Replacement Call for Details
4600GSF151CE 4600g, General Purpose 2D Image Scanner, TTL, RS-232, USB, Keyboard wedge, Black/Green LED and RoHS. Cable not included. See accessories. See Replacement Call for Details
4600GSF051CE 4600g, Special Focus Area Imager with user guide. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 42206161-01E), PS/2 (Part# 42206132-02E), or RS-232 Serial cables (Part# 42203758-03E) and a Power supply (Part# 46-00525). See Replacement Call for Details
4600GSF051C-0F00E 4600g, USB kit with USB cable, Special Focus Area Imager and user guide. Color: Gray. See Replacement Call for Details
4600GSF051C-0A00E 4600g, Keyboard wedge kit with PS/2 cable, Special Focus Area Imager and user guide. Color: Gray. See Replacement Call for Details
4600GSF031CE 4600g, Special Focus Area Imager, True RS-232 and 12V DEC Wedge). Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 42206161-01E), PS/2 (Part# 42206132-02E), or RS-232 Serial cables (Part# 42203758-03E) and a Power supply (Part# 46-00525). See Replacement Call for Details
4600GSR151CEN 4600g, General Purpose 2D Image Scanner (Special 4600G Non-LiteBar Scanner). Cables not included. See accessories. Check Availability Call for Details
4600GSR051C-0G00E 4600g, Scanner only, Standard Range Area Imager with user guide. Accessories not included, see cable (Part# 42203758-04E) and power supply (Part# PS5U-41E). Check Availability Call for Details
4600GSF051C-0G00E 4600g, Special Focus Area Imager with user guide. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 42206161-01E), PS/2 (Part# 42206132-02E), or RS-232 Serial cables (Part# 42203758-03E) and a Power supply (Part# 46-00525). Check Availability Call for Details

Accessories

Part # DescriptionAvailabilityPriceOrder
42206161-01E Cable, USB, black, Type A, 2.6m (8.5'), straight, host power Ships Free Today $16.95
42205155-05E Cable, IBM 46xx, black, RS-485 Port 9A/B, 3.1m (10.2'), coiled. Non-Cancelable/Non-Returnable. Ships Free Today $20.69
42206202-03E Cable, USB, Host Powered, 12.1 feet, Coiled, Type A, Black. Ships Free Today $45.28
Retail $66
Save 31%
42206202-02E Cable, USB, black, Type A, 2.8m (9.2'), coiled, host powered Ships Free Today $20.69
42203758-04E Cable, RS-232 TTL, Connector: D 9 Pin F connector, TX data on pin 2, external power, coiled Length: 7.7 ft. (2.3m) Ships Free Today $20.69
42203758-03SE Cable, RS-232 TTL, Connector: D 9 Pin F, power on pin 9, TX data on pin 2, straight Length: 7.7 ft. (2.3m) Ships Free Today $20.69
HFSTAND5E Stand, Black flex neck stand holder for 4600, 4800i, 3800r and 3800i (for hands-free and presentation scanning) Ships Free Today $23.36
Retail $25
42205895-01E Cable, RS-232 TTL, black, coiled, 2.3m (7.7'), power from PS/2 keyboard/mouse port. Non-Cancelable/Non-Returnable. Ships Free Today $44.95
Retail $66
Save 31%
42206132-02E Cable, AT - PS/2 & compatibles, wedge Connector: Mini Din 6 PIN M/F Length: 9.2 ft. (2.8m), coiled Ships Free Today $16.95
Retail $20
Save 15%
42206422-01E Cable, RS-232 TTL, black, DB-9, 2.3m (7.7'), straight, 5v external power. Non-Cancelable/Non-Returnable. Ships Free Today $30.85
Retail $39
Save 20%
UHOLDERE Desktop/wall mount holder for 4600, 4800i, 3800r and 3800i Ships Free Today $15.31
UCOVERE Padded fabric boot cover with hanging ring, for the 4600/5600. Non-Cancelable/Non-Returnable.
Ships Free in 3-5 Days
$23.36
Retail $25
PS-050-2400D1-NA-6 POWER SUPPLY 5V DESKTOP
Ships Free in 3-5 Days
$28.58
Retail $35
Save 18%
PS-050-2400D1-EU Power supply, 5 volt, 2.4 amp 4 pin mini-din connector, power cord 77900508E with EURO input. For Honeywell 3800G, 4600G, 4800I. Replaces (Part# PS5U-42E). Non-Cancelable/Non-Returnable.
Ships Free in 3-5 Days
$29.77
Retail $37
Save 19%
IMAGESTANDTE ImageStand (with Countertop Decal Template)
Ships Free in 3-5 Days
$77.34
Retail $126
Save 38%
IMAGESTANDPE Image stand with metal plate. Non-Cancelable/Non-Returnable.
Ships Free in 3-5 Days
$79.48
Retail $130
Save 38%
77900506E Power cord, Cable: power cord, power supply to AC outlet, straight, 1.8m (6.0 ft.) - US. Non-Cancelable/Non-Returnable. Ships Free Today $14.46
42206132-02SE Cable, AT - PS/2 & compatibles, wedge Connector: Mini Din 6 PIN M/F Length: 9.2 ft. (2.8m), straight. Non-Cancelable/Non-Returnable.
Ships Free in 3-5 Days
$20.69
42203758-03E Cable, RS-232 TTL, Connector: D 9 Pin F, power on pin 9, TX data on pin 2, coiled Length: 7.7 ft. (2.3m)
Ships Free in 3-5 Days
$45.28
Retail $66
Save 31%

Honeywell 4600 g Details

4600 g The 4600 g area imager from HHP combines the versatility of area imaging with the speed and cost of linear scanning for a wide range of applications. Powered by Adaptus imaging, the 4600 g 2D is full featured, fast, and cost effective. Current and future retail and commercial applications will involve much more than linear bar codes. The omnidirectional reading capability of the 4600 g 2D allows fast and easy reading of EAN-UCC composite codes, PDF417, Matrix codes and Postal codes. Simply point and shoot. There is no need to align a scan line or wait for a raster beam to open up. With no moving parts the 4600 g is as durable as it is versatile. HHP has a reputation for products that are tough as nails and the 4600 g is no exception, and will provide years of service at a low cost.
Honeywell Scanning and & Mobility is a leader in AIDC and the new home for many products formerly available from Hand-Held and Metrologic.
