Honeywell 7900 Hand Held Computer

This product has been discontinued. It is replaced by the Honeywell 9700.

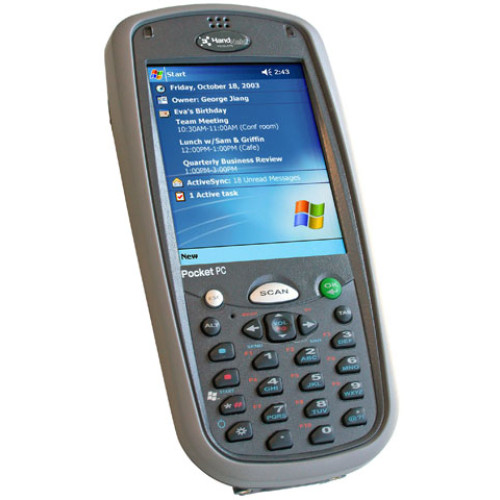

The Honeywell 7900 Mobile Computer packs all the performance and durability of the Dolphin 9500 and 9550 in a PDA-like, easy-to-use design. The Honeywell 7900 is ideal for change management, customer service, computer-aided ordering, store transfers, voice communications, portable point-of-sale, product information lookup, and dozens of other mobile applications.

Questions?

1-888-875-7170

Email We respond to every email

Fill out your contact information and a message and we'll get back to you.

To:

questions@barcodegiant.com

Name*:

Email*:

Phone:

Message*:

I live outside of USA/Canada

Spam protection*: Type "barcode"in the field below.

Honeywell 7900 Details

System Architecture

Processor: Intel X-Scale PXA255 400MHz

Development Environment: Dolphin SDK Add-on for Pocket PC 2003 - supports Embedded Visual C++ 4.0 Dolphin .NET SDK for Windows Mobile 2003 - supports Visual Studio.NET 2003 (VB.NET and C#.NET)

Operating Platform: Windows Mobile Second Edition Software for Pocket PCs

Third-Party Software: Support for PowerNet Terminal Emulation software (TNVT, 3270, 5250), Java Virtual Machine (JVM ) runtime, ITScriptNet®, MCL, and App Forge

Memory: 64MB RAM x 64MB non-volatile synchronous Flash standard; optional 128MB RAM high memory

Memory Expansion: User-accessible Mini Secure Digital (Mini-SD) memory interface; optional 256MB RAM factory-installed

Data Inputs

Imager/Scanner: IMAGETEAM 4300SR (Standard Range) with High-Vis laser aimer brackets, decodes from 2.5 to 12.5 in. (6.3 to 32 cm.) IMAGETEAM 4300SF (Smart Focus) with High-Vis laser aimer brackets, decodes from 2.1 to 8.9 in. (5 to 22.6 cm.)

1D Symbologies Read: Codabar, Code 3 of 9, Code 11, Code 32 Pharmaceutical (PARAF), Code 93, Code 128, EAN with Add-On and EAN with Extended Coupon Code, EAN-13, Interleaved 2 or 5, Matrix 2 of 5, Plessey, PosiCode, RSS, Straight 2 of 5 IATA, Straight 2 of 5 Industrial, Telepen, Trioptic Code, UCC/EAN-128, UPC and UPC-A

2D Symbologies Read: Aztec, Code 16K, Composite, Data Matrix, MaxiCode, OCR, PDF417, QR Code, RSS

Composite and OCR Codes: Aztec Mesa, Codablock F, EAN·UCC, RSS-14 and OCR-A and OCR-B

Postal Codes: Postnet, Australian, British, Canadian, China, Japanese, KIX (Netherlands), and Korea Post, Planet Code

Keyboards: Two backlit keyboard options with in-mold graphics for indefinite wear resistance: 25-key numeric and 36-key alpha

Data Outputs

Display: 3.8" 1/4 VGA (240 x 320 portrait mode) color TFT LCD display with industrial-grade touch screen

I/O Ports: Industrial-grade mechanical connector supports communications - USB 1.1, serial RS-232 up to 115Kbps - and charging via cradles or AC adapter cables, IrDA port-Integrated, Speaker-Integrated, Microphone-Integrated, Headset jack

Wireless Radio Options
WWAN: GSM/GPRS Tri-band - 850/1800/ 1900 MHz in US, Latin America, and Canada or 900/1800/1900 MHz in Europe, Asia, and Australia
WLAN: IEEE 802.11b DSSS Authentication Methodologies: WEP, 802.1x, LEAP, TKIP, MD5, TLS, TTLS, PSK, and PEAP
WPAN: Bluetooth (Version 1.2, Class 2)

Physical

Dimensions: 7.3"L x 3. 5"W x 1.7"D max (185 x 89 x 43 mm), 3.2"W x 1.5"D at grip (81 x 38 mm)

Weight: 17 oz. (482 gm) to 19.2 oz (544 gm), configuration dependent

Operating Temperature: 14 to 122°F (-10°C to 50°C); can operate down to -20°C with potential degradation in performance depending on the application

Storage Temperature: -4° to 158°F (-20° to 70°C)

Humidity: 95% humidity, non-condensing

Electrical Static Discharge: 15 KVA on all surfaces

Impact Resistance: Withstands multiple 5 ft. (1.5m) drops onto concrete

Environmental Resistance: Independently certified to meet IP64 standards for moisture and particle resistance

Power: Lithium-Ion battery technology with a 7.4V, 14.8 watt-hour main battery with hot-swappable design for fast replacement in the field

Other: Integrated stylus with optional tether and removable hand strap

Peripherals/Accessories

Dolphin HomeBase Charging/communications cradle with auxiliary battery well. Data transfer via RS-232 serial or USB ports.

Dolphin Mobile Base Mobile charging/communication cradle. Data transfer via RS-232 serial. Power out at 5 volts for peripheral devices.

Dolphin QuadCharger Four-slot battery charger that charges four batteries in under four hours. One slot doubles as a battery analyzer.

Dolphin Mobile Charger Charges a Dolphin terminal by plugging into a vehicle cigarette lighter/power port.

Dolphin NetBase Four-slot charging/communication cradle designed for Ethernet-based communications.

Dolphin ChargeBase Four-slot charging cradle-each slot holds, powers, and charges a terminal.

Dolphin Cable Kits USB or serial cables that charge and communicate with the terminal directly, without a cradle.

Regulatory Approvals

FCC-CE-Radio Country: US/Canada, R&TTE

LASER LIGHT. DO NOT STARE INTO BEAM
1.0 mWMAX OUTPUT: 645 to 660nM
EN60825 -1: 1994 +A11+ A2
CLASS 2 LASER PRODUCT
Complies with 21 CFR 1040.10 and 1040.11
except for deviations pursuant to Laser
Notice No. 50, dated July 26, 2001.
