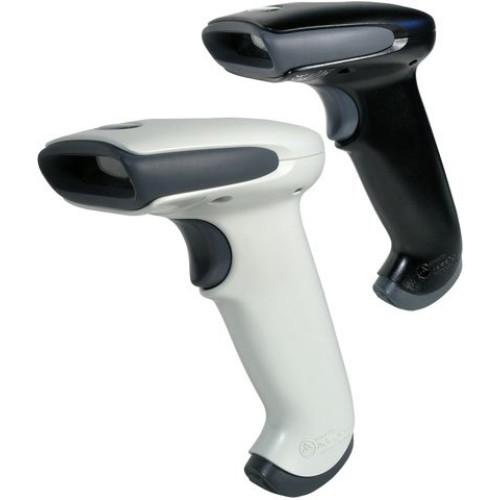

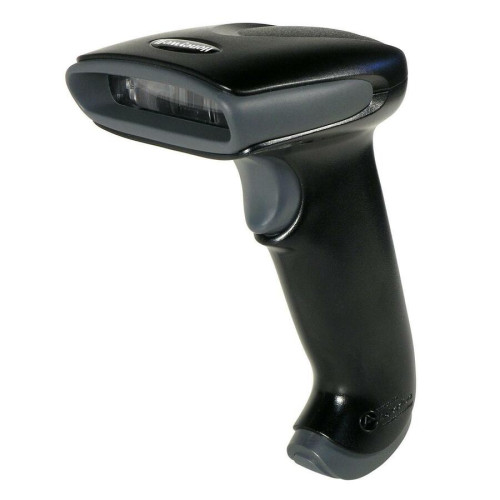

3800G05E - Honeywell 3800g Bar code Scanner

The 3800g is the newest member of the legendary 3800 family of linear imagers. The first linear imager to earn the Adaptus Imaging Technology brand, the new 3800g is powered by Adaptus 5.0, delivering breakthrough linear imaging performance and versatility. Fast, intuitive barcode reading across a range of high and low density codes, the 3800g quickly reads even damaged and poorly printed barcodes - all in a single device. The 3800g boasts USB, Serial (RS-232) and Keyboard Wedge (PS2) connection options.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
3800G05E 3800g, SCANNER ONLY, 1D Linear Imager, PS/2. Cables must be purchased separately. PS/2 cable (Part# 42206132-02E). Color: White.
Information:   |  Specifications  |  Honeywell's 3800g page  |
Accessories:   |  Accessories/Options  |  Honeywell 3800g service contract  |

3800G05E Details

Technical Information

  • Form Factor: Handheld Scanner
  • Barcode Dimension: 1D/2D
  • Resolution: 3 mil(s)
  • Symbologies Supported:
    • Codabar
    • Code 3 of 9 including PARAF
    • Interleaved 2 of 5
    • Industrial 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Postal Code
    • RSS
    • Sunrise 2005
    • GTIN Compliant
  • Scanner Type: Linear Imager
  • Scan Rate: 270 Decodes per second
  • Interface Options:
    • Keyboard Wedge
    • RS-232
    • USB
    • IBM Retail
  • Interface Connectivity: Corded
  • Scan Pattern: Linear
  • Input Voltage Range: 5 to 12 V DC
  • Depth of Field:
    • 2 - 8"@5mils
    • 1.5 - 12"@7.5mils
    • 1 - 15"@10mils - 80% UPC
    • 0.5 - 18"@13mils - 100% UPC
    • 1 - 22"@15mils
    • 1 - 26"@20mils

General Information

Physical Characteristics

  • Dimensions: 5.9" (149.86mm) x 3.1" (78.74mm) x 4.4" (111.76mm)
  • Weight: 5.6 oz
  • Color: Ivory

Agency Approvals

  • Agency Approvals:
    • UL
    • cUL
    • RoHS
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED Safety: Class 1

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 122°F (50°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity: 0 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 5 Year(s)
Part # Description Availability Price Order
HFSTAND7E Honeywell Stand, Black flex-neck stand for 1300g or 3800g. 10" height, weighted base. Ships Free Today $23.28
Retail $25
42206202-03E Honeywell Cable, , USB, Host Powered, 12.1 Feet, Coiled, Type A, Black. Ships Free Today $45.06
Retail $66
Save 31%
42206132-02SE Honeywell Cable, AT - PS/2 & compatibles, wedge Connector: Mini Din 6 PIN M/F Length: 9.2 ft. (2.8m), straight. Non-Cancelable/Non-Returnable.
Ships Free in 3-5 Days
$20.62
3800GHOLDERE Honeywell Holder: desktop/wallmount for 3800g only Ships Free Today $19.56
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
SVC3800G/R/P-SMS5 Honeywell Service Plans, 5-year, Comprehensive coverage, 1-day turnaround service for your 3800g/3800r/3800pdf
Ships Free in 3-5 Days
$30.06

The Honeywell 3800G05E is also known as HHP-3800G05E .

Honeywell Scanning and & Mobility is a leader in AIDC and the new home for many products formerly available from Hand-Held and Metrologic.
