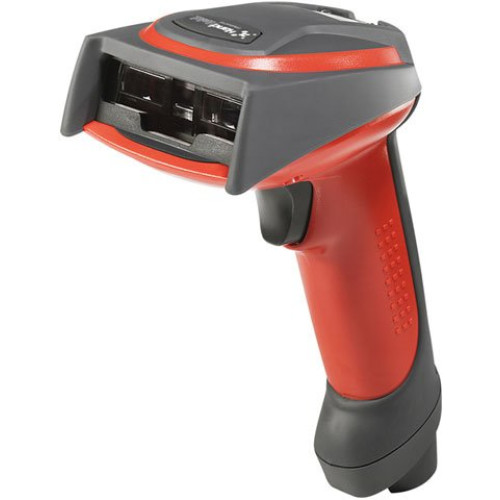

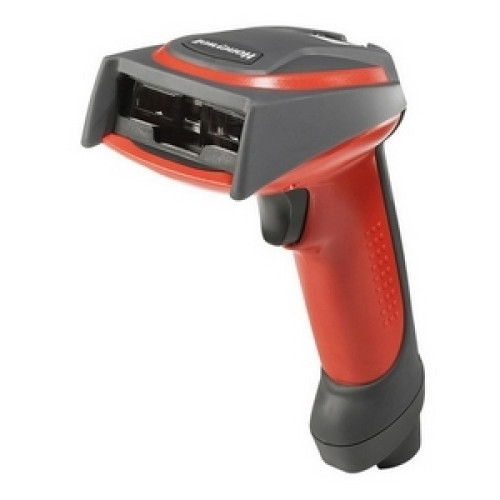

3800ISR030E - Honeywell 3800i Bar code Scanner

The 3800i is purpose-built for the most demanding applications in the toughest conditions, including warehouse, distribution, logistics and rugged retail environments.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
3800ISR030E 3800i, SCANNER ONLY, True RS-232 (NOT A STANDARD CONFIGURATION). Cables and accessories are not included and must be purchased separately. These include RS-232 Serial cables (Part# 42203758-03E) and a Power supply (Part# PS-090-2000D-NA). Non-Cancelable/Non-Returnable. Ships Free Today $307.42
Retail $492
Save 37%
Information:   |  Specifications  |  Honeywell's 3800i page  |
Accessories:   |  Accessories/Options  |  Honeywell 3800i service contract  |

3800ISR030E Details

Technical Information

  • Scan Pattern: Linear
  • Scan Rate: 270 scan/s
  • Connectivity Technology: Cable
  • Scanning Distance: 82"
  • Light Source: LED
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • Codabar
    • Code 39 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Post
    • RSS
    • and ISBT 128 Concatenation (requires a paid license)
    • Codabar
    • Code 39 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Post
    • RSS
    • and ISBT 128 Concatenation (requires a paid license)
  • Maximum Scan Resolution: 7.50 mil
  • Depth of Field:
    • 6.50" - 15"@7.50 mil
    • 2.50" - 28"@ - 100% UPC
    • 2.50" - 31"@15 mil
    • 1.50" - 42"@20 mil
    • 4" - 82"@55 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 3800i
  • Product Name: 3800i Barcode Reader
  • Product Line: IMAGETEAM

Physical Characteristics

  • Height: 6.4"
  • Width: 3.2"
  • Depth: 5.3"
  • Color: Orange
  • Weight (Approximate): 7.50 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • UL
    • cUL
    • TÜV
    • RoHS
  • Platform Supported: PC
  • Additional Information:
    • Supported Interfaces:
    • SerialKeyboard WedgeUSBWand EmulationHHLC Non-decoded Laser CompatibleIBM 468X/469XTTL level RS-232

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 14 V DC
Part # Description Availability Price Order
UHOLDERE Hand Held Desktop/wall mount holder for 4600, 4800i, 3800r and 3800i Ships Free Today $15.34
HFSTAND5E Honeywell Stand, Black flex neck stand holder for 4600, 4800i, 3800r and 3800i (for hands-free and presentation scanning) Ships Free Today $23.36
Retail $25
42206132-02SE Honeywell Cable, AT - PS/2 & compatibles, wedge Connector: Mini Din 6 PIN M/F Length: 9.2 ft. (2.8m), straight. Non-Cancelable/Non-Returnable.
Ships Free in 3-5 Days
$20.69
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
SVC3800I-1FC3 Honeywell Service Contracts, 3800i, Full Comprehensive, 1 Day Turn, 3 year DayOne
Ships Free in 3-5 Days
$41.98
Retail $51
Save 17%

The Honeywell 3800ISR030E is also known as HHP-3800ISR030E .

Honeywell Scanning and & Mobility is a leader in AIDC and the new home for many products formerly available from Hand-Held and Metrologic.
