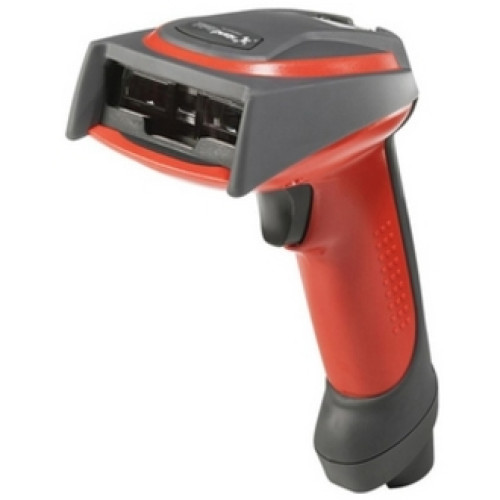

3800ISR050-0G00E - Honeywell 3800i Bar code Scanner

The 3800i is purpose-built for the most demanding applications in the toughest conditions, including warehouse, distribution, logistics and rugged retail environments.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
3800ISR050-0G00E 3800i, User Guide kit. Includes scanner (no cables), desktop holder, and user guide. Cables and accessories must be purchased separately. These include USB (Part# 42206161-01E), PS/2 (Part# 42206132-02E), or RS-232 Serial cables (Part# 42203758-03E) and a Power supply (Part# PS-090-2000D-NA).
Information:   |  Specifications  |  Honeywell's 3800i page  |
Accessories:   |  Accessories/Options  |  Honeywell 3800i service contract  |

3800ISR050-0G00E Details

Technical Information

  • Form Factor: Handheld Scanner
  • Resolution: 7.5 mil(s)
  • Symbologies Supported:
    • Codabar
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Postal Code
    • RSS
    • Code 39 including PARAF
  • Scanner Type: Linear Imager
  • Scan Rate: 270 Decodes per second
  • Interface Options:
    • RS-232
    • Keyboard Wedge
    • USB
    • Wand Emulation
    • IBM 468X/469X
  • Interface Connectivity: Corded
  • Scan Pattern: Linear
  • Input Voltage Range: 4.5 to 14 V DC
  • Depth of Field:
    • 6.5 - 15"@7.5mils
    • 2.5 - 28" - 100% UPC
    • 2.5 - 31"@15mils
    • 1.5 - 42"@20mils
    • 4 - 82"@55mils

General Information

Physical Characteristics

  • Color: Orange

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • UL
    • cUL
    • TÃ┼ôV
    • RoHS Compliant
    • LED Classification: Class 1 under EN60825-01

Environmental Conditions

  • Temperature:
    • -22°F (-30°C) to 122°F (50°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity: 0 to 95% Non-condensing

Other

  • Package Contents:
    • 3800i Barcode Scanner
    • User Documentation

Warranty

  • Manufacturer Warranty: 3 Year(s)
Part # Description Availability Price Order
UHOLDERE Hand Held Desktop/wall mount holder for 4600, 4800i, 3800r and 3800i Ships Free Today $15.34
HFSTAND5E Honeywell Stand, Black flex neck stand holder for 4600, 4800i, 3800r and 3800i (for hands-free and presentation scanning) Ships Free Today $23.36
Retail $25
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
SVC3800I-1FC3 Honeywell Service Contracts, 3800i, Full Comprehensive, 1 Day Turn, 3 year DayOne
Ships Free in 3-5 Days
$41.98
Retail $51
Save 17%

The Honeywell 3800ISR050-0G00E is also known as HHP-3800ISR050-0G00E or 3800ISR0500G00E .

Honeywell Scanning and & Mobility is a leader in AIDC and the new home for many products formerly available from Hand-Held and Metrologic.
