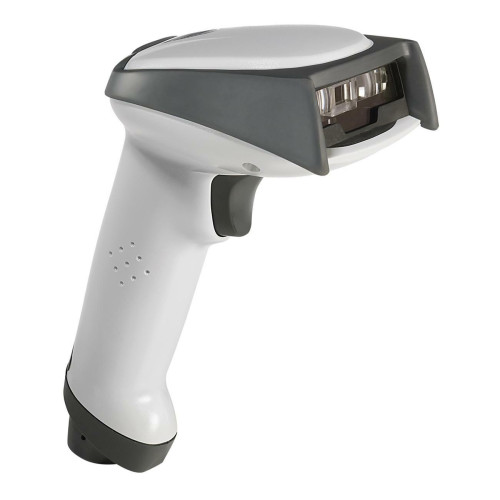

3800RSR030E - Honeywell 3800r Bar code Scanner

Designed specifically for retail applications, the 3800r (formerly the 5600) delivers the right balance of scanning performance, connectivity and durability.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
3800RSR030E 3800r, Scanner Only (Multi-Interface), Gray. Cables and accessories are not included and must be purchased separately. Non-Cancelable/Non-Returnable. Ships Free Today $268.68
Retail $430
Save 37%
Information:   |  Specifications  |  Honeywell's 3800r page  |
Accessories:   |  Accessories/Options  |  Honeywell 3800r service contract  |

3800RSR030E Details

Technical Information

  • Scan Pattern: Linear
  • Scan Rate: 270 scan/s
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • Codabar
    • Code 3 of 9 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Postal Code
    • RSS
    • Codabar
    • Code 3 of 9 including PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Postal Code
    • RSS
  • Maximum Scan Resolution: 5 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 3800r
  • Product Name: 3800r Barcode Reader

Physical Characteristics

  • Height: 6.2"
  • Width: 3.2"
  • Depth: 5.3"
  • Color: Gray
  • Weight (Approximate): 6.50 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • 3800r Barcode Reader
    • Desktop / Wall Mount Holder
    • 3800r Barcode Reader
    • Desktop / Wall Mount Holder
  • Certifications & Standards:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED Safety: Class 1
    • UL
    • cUL listed
    • TUV
    • RoHS
  • Platform Supported: PC
  • Additional Information:
    • Supported Interface:
    • RS-232

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC

The Honeywell 3800RSR030E is also known as HHP-3800RSR030E .

Honeywell Scanning and & Mobility is a leader in AIDC and the new home for many products formerly available from Hand-Held and Metrologic.
