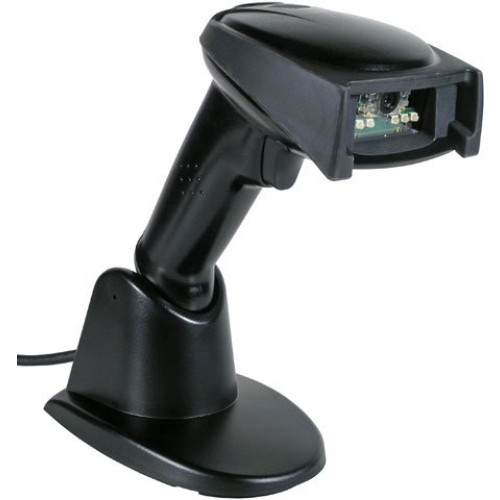

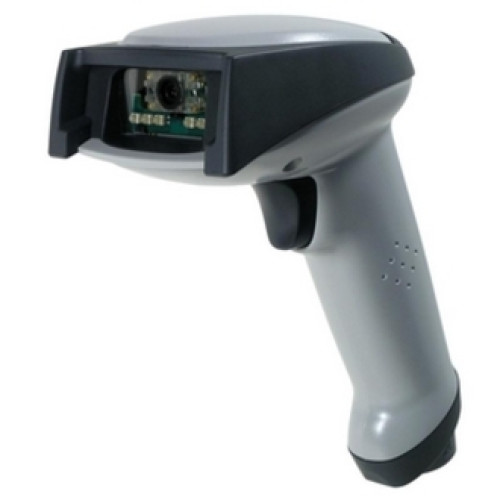

Honeywell 4600r Barcode Scanner
Part #: 4600RSF051C-0F00 | SKU: HON24949

The Honeywell 4600r delivers excellent reading performance of all barcodes, including PDF417 codes commonly used on drivers' licenses in the United States and Canada. This performance enables the 4600r to be used for auto-populating electronic forms (e-forms), used for credit card applications, extended warranties, and returned goods processes. Verification of personal identification also enables age validation for the sale of restricted goods. In addition to high performance linear and 2D barcode reading, you'll discover the 4600r delivers a whole new level of versatility not possible with traditional, single-function, hardware solutions. Powered by Adaptus Imaging Technology 5.0, the 4600r takes digital pictures - allowing the user to electronically capture, store, and retrieve signatures, pharmacy prescriptions, and forms of personal identification. With best-in-class linear and 2D barcode reading, the versatility of image capture, and an extensive set of software tools to extend its functionality, the 4600r protects your investment against changing requirements and enables you to capture and manage more data with one easy-to-use solution.

Honeywell 4600r Barcode Scanner

Part Details: Retail 2D Imager (USB Kit, Imager, 4600SF051C, Straight USB Cable and Users Guide)

Additional Information

Manufacturer Honeywell
Model Name 4600r
Scan Pattern Area
Scanner Capability 2D
Scanner Type Imager

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • PDF 417
    • Micro PDF-417
    • MaxiCode
    • DataMatrix
    • QR Code
    • Aztec
    • Aztec Mesas
    • Code 49
    • EAN-UCC Composite
    • Codabar
    • Code 39
    • Interleaved 2 of 5
    • Code 93
    • Code 128
    • UPC
    • EAN
    • RSS
    • Codablock F
    • Postnet
    • Planet Code
    • British Post
    • Canadian Post
    • Japanese Post
    • KIX(Netherlands) Post
    • OCR-A
    • OCR-B
    • PDF 417
    • Micro PDF-417
    • MaxiCode
    • DataMatrix
    • QR Code
    • Aztec
    • Aztec Mesas
    • Code 49
    • EAN-UCC Composite
    • Codabar
    • Code 39
    • Interleaved 2 of 5
    • Code 93
    • Code 128
    • UPC
    • EAN
    • RSS
    • Codablock F
    • Postnet
    • Planet Code
    • British Post
    • Canadian Post
    • Japanese Post
    • KIX(Netherlands) Post
    • OCR-A
    • OCR-B
  • Depth of Field:
    • 3.60" - 4.20"@5 mil - Linear
    • 2.20" - 7.60"@10 mil - Linear
    • 2" - 8.80"@13 mil - UPC
    • 2.80" - 5.90"@6.60 mil - PDF417
    • 2.20" - 7.50"@10 mil - PDF417
    • 1.80" - 7.40"@15 mil - Data Matrix

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 4600r SF
  • Product Name: 4600rSF Handdheld Barcode Reader

Physical Characteristics

  • Height: 6.2"
  • Width: 3.2"
  • Depth: 5.3"
  • Color: Gray
  • Weight (Approximate): 6.30 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • 4600rSF Handdheld Barcode Reader
    • USB Straight Cable
    • User Documentation
    • 4600rSF Handdheld Barcode Reader
    • USB Straight Cable
    • User Documentation
  • Certifications & Standards:
    • FCC Part 15 Class A
    • Canada: ICES-003 Class A
    • Mexico: NOM-NYCE
    • AUS/NZ: C-Tick:AS/NZ 3548
    • UL and cUL:
    • UL 60950-1:2003
    • CSA C22.2 No 60950-1-03
    • GS-Mark:
    • TUV/GS Mark approval for EN60950-1:2003
    • IEC60825-1
    • CE:
    • CB Scheme EN60950-1
    • IEC 60825-1
    • EN55022 Class A
    • EN55024
    • EN61000-3-2
    • EN61000-3-3
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • USB
    • Keyboard Wedge
    • IBM 4683

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 5 V DC
Extended Details

Recommended Accessories for Model: Honeywell 4600r Barcode Scanner

  • Honeywell ImageTeam 4800 Accessory
    Part #: 42206161-01E | SKU: HON24928

    USB, black, Type A, 2.6m (8.5'), straight, host power
    MSRP: $24.89 Price: $23.76
    In Stock
  • Honeywell 4600r Accessory
    Part #: HFSTAND5RE | SKU: HON38323

    Retail Flex-Neck Stand for Use with 4600R
    MSRP: $34.01 Price: $31.65
  • Honeywell ImageTeam 3800 Accessory
    Part #: 42203764-03E | SKU: HON28297

    Wand Emulation, Power on Pin 9 Connector: D 9 PIN Squeeze Length: 7.7 ft. (2.3m), coiled. Non-Cancelable/Non-Returnable.
    MSRP: $56.66 Price: $41.33
  • Honeywell 4600r Accessory
    Part #: HFSTAND5RSE | SKU: HON60487

    Retail Flex Neck Stand (with Out of Stand Sensor) Use with 4600R. Non-Cancelable/Non-Returnable.
    MSRP: $45.34 Price: $32.80
  • Honeywell ImageTeam 3800 Accessory
    Part #: 42205978-01E | SKU: HON24921

    HHLC/laser emulation Connector: D 9 PIN Squeeze Length: 6.8 ft. (2.0m), coiled. Non-Cancelable/Non-Returnable.
    MSRP: $120.15 Price: $86.29

Recommended Warranties for Model: Honeywell 4600r Barcode Scanner

  • Honeywell Service Contracts Service Contract
    Part #: HHSCAN2-REPAIR | SKU: HON402770

    Flat Rate Repair fee for 4600g/r, 1690, 1900g, 1900c, 1500, 1450g, 1400. This charge is for any required repair not covered by warranty or comprehensive service.
    Price: $212.10
    In Stock
