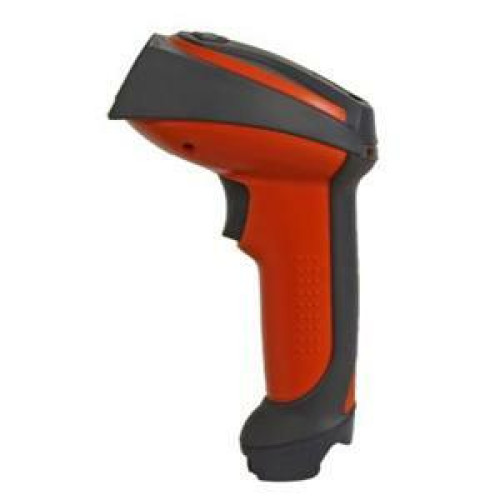

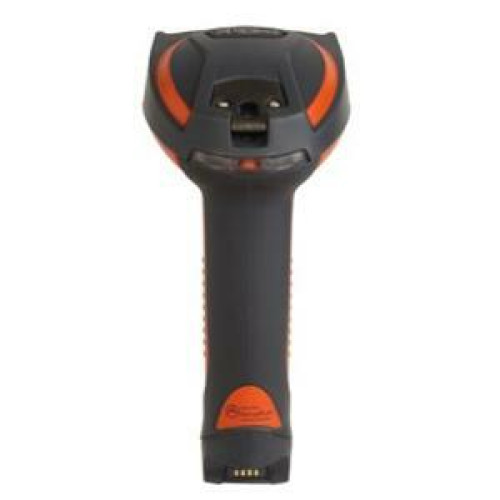

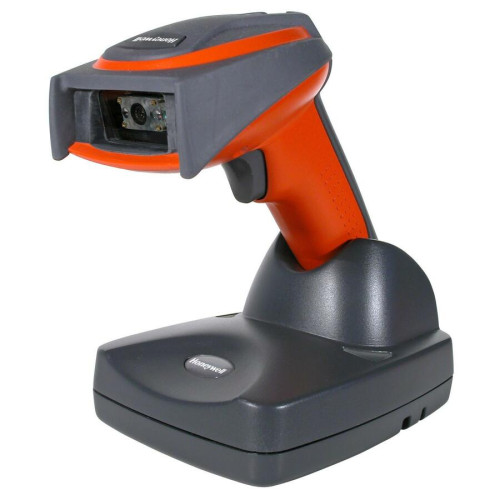

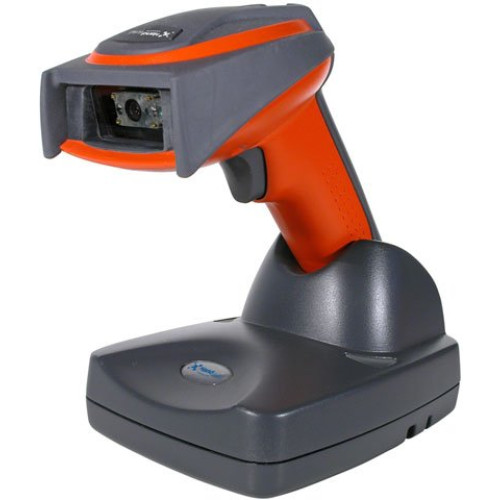

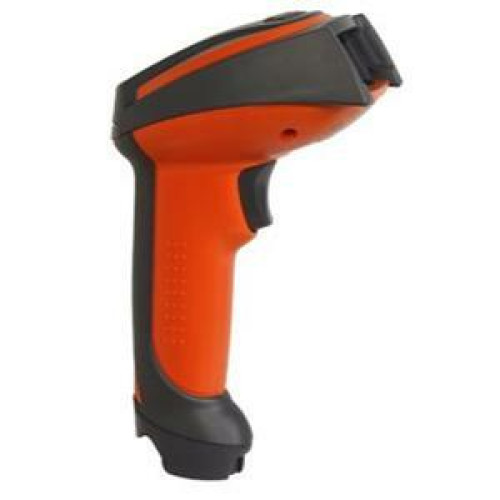

Photo of Honeywell 4820ISR-USBKITAE Honeywell logo

Honeywell 4820 ISR

Cordless 2D Scanner USB kit, Standard Range. Includes 2D imager scanner, cradle, USB cable, power supply, and user guide.

This part is replaced by 1911IER-3USB-5.
$781.87

Free Shipping

Ships Today



Honeywell 4820 Industrial Scanner

4820 Industrial 2D imager from Honeywell offers an ideal solution for industrial mobile barcode reading applications. It features a sturdy "Industrial Ruggedness" construction, Bluetooth v1.2 radio wireless communications for freedom of movement in retail, warehouse and distribution. This enables movement up to 33 feet (10m) from the base while its Adaptive Frequency Hopping (AFH) feature eliminates interference with other wireless systems. The field-replaceable lithium-ion battery enables up to 57,000 reads per full charge. The 4820 Industrial's small footprint enables hands-free presentation scanning when docked in the base. The host-powered interface and RF link extends the mobile capabilities of the 4820 Industrial by drawing power from a portable device for radio and host communications.

Full specifications (PDF)

Manufacturer part number: 4820ISR-USBKITAE

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Wireless
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • PDF 417
    • Micro PDF-417
    • MaxiCode
    • DataMatrix
    • QR Code
    • Aztec
    • Aztec Mesas
    • Code 49
    • EAN-UCC Composite
    • Codabar
    • Code 39
    • Interleaved 2 of 5
    • Code 93
    • Code 128
    • UPC
    • EAN
    • RSS
    • Coda Block
    • Postnet
    • Planet Code
    • British Post
    • Canadian Post
    • Japanese Post
    • KIX(Netherlands) Post
    • OCR-A
    • OCR-B
    • PDF 417
    • Micro PDF-417
    • MaxiCode
    • DataMatrix
    • QR Code
    • Aztec
    • Aztec Mesas
    • Code 49
    • EAN-UCC Composite
    • Codabar
    • Code 39
    • Interleaved 2 of 5
    • Code 93
    • Code 128
    • UPC
    • EAN
    • RSS
    • Coda Block
    • Postnet
    • Planet Code
    • British Post
    • Canadian Post
    • Japanese Post
    • KIX(Netherlands) Post
    • OCR-A
    • OCR-B
  • Maximum Scan Resolution: 35 mil
  • Depth of Field:
    • 3" - 7.10"@8.30 mil - Linear
    • 1.60" - 12.70"@13 mil - UPC
    • 4" - 5.70"@6.60 mil - PDF417
    • 2.60" - 8.50"@10 mil - PDF417
    • 1.80" - 9.70"@15 mil - PDF417
    • 1.50" - 12.50"@35 mil - Maxi Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 4820i
  • Product Name: 4820i Barcode Reader

Physical Characteristics

  • Height: 6.5"
  • Width: 3.2"
  • Depth: 5.3"
  • Color: Orange
  • Weight (Approximate): 9.60 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • 4820i Barcode Reader
    • Cordless Base
    • North America Power Cord
    • North America Power Supply
    • Straight USB Cable
    • User Documentation
    • 4820i Barcode Reader
    • Cordless Base
    • North America Power Cord
    • North America Power Supply
    • Straight USB Cable
    • User Documentation
  • Certifications & Standards:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED Safety: Class 1
    • UL
    • cUL
    • TÜV
    • 2005 Sunrise
    • RoHS
  • Additional Information:
    • Supported Interfaces:
    • Keyboard Wedge
    • USB
    • Serial
    • Wand Emulation
    • IBM 46XX

Power Description

  • Input Voltage: 4.2 V DC
  • Power Source: Battery

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Warranty

  • Limited Warranty: 3 Year

Network & Communication

  • Bluetooth: Yes
