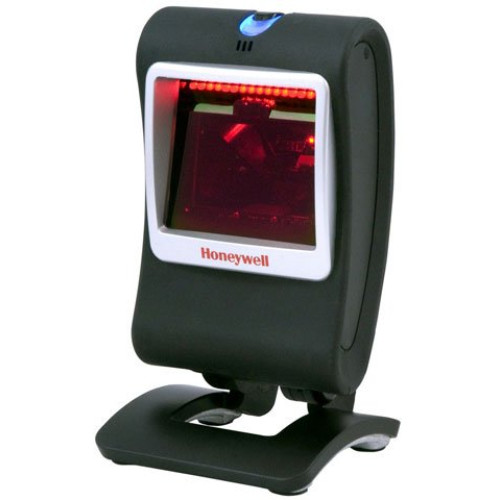

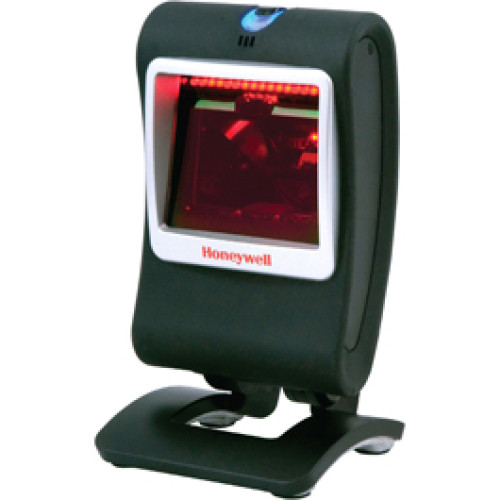

7580G-2 - Honeywell 7580g Bar code Scanner

Honeywell's Genesis 7580g, the world's first presentation area-imaging scanner engineered to decode all standard 1D, PDF417 and 2D codes, provides enhanced productivity and revolutionary imaging technology in an elegant, yet durable design. Powered by Adaptus Imaging Technology 6.0, the Genesis 7580g is redefining industry standards for imaging solutions. Breakthrough performance and a versatile form factor make this product suitable for environments ranging from manufacturing to health care to retail POS.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
7580G-2 Genesis 7580g, SCANNER ONLY. 2D Scanner, PDF417, RS-232-TTL/USB/Keyboard wedge, IBM 46xx RS-485 interfaces. Ships Free Today $284.53
Retail $430
Save 33%
Information:   |  Specifications  |  Honeywell's 7580g page  |
Accessories:   |  Accessories/Options  |  Honeywell 7580g service contract  |

7580G-2 Details

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Connectivity Technology: Cable
  • Image Sensor: Imager
  • Barcode Symbology Supported: Reads standard 1D<br />PD<br />2D<br />Postal and OCR symbologies
  • Maximum Scan Resolution: 7.50 mil
  • Depth of Field:
    • 0.39" - 3.15"@5 mil - 1D
    • 0.20" - 4.72"@7.50 mil - 1D
    • 0 mil - 6.50"@10 mil - 1D
    • 0 mil - 7.09"@13 mil - 1D
    • 0 mil - 5.91"@10 mil - PDF
    • 78.7 mil - 7.48"@20 mil - Data Matrix

General Information

  • Product Type: Desktop Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 7580g
  • Product Name: Genesis 7580g Area-Imaging Scanner
  • Product Line: Genesis

Physical Characteristics

  • Height: 5.9"
  • Width: 3.3"
  • Length: 3.2"
  • Weight (Approximate): 12 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Certifications & Standards:
    • CE
    • cUL

Power Description

  • Input Voltage: 5.5 V DC

Warranty

  • Limited Warranty: 2 Year
Part # Description Availability Price Order
CBL-500-300-S00 Honeywell Cable, USB, black, Type A, 3m (9.8'), straight, 5V host power Ships Free Today $19.89
CBL-020-300-C00 Honeywell Cable, RS-232 (5V signals), black, DB-9 Female, 3m (9.8'), coiled, 5V external power with option for host power on pin 9 Ships Free Today $19.89
CBL-020-300-C00 Honeywell Cable, RS-232 (5V signals), black, DB-9 Female, 3m (9.8'), coiled, 5V external power with option for host power on pin 9 Ships Free Today $19.89

The Honeywell 7580G-2 is also known as HSM-7580G-2 or 7580G2 .

Honeywell Scanning and & Mobility is a leader in AIDC and the new home for many products formerly available from Hand-Held and Metrologic.
