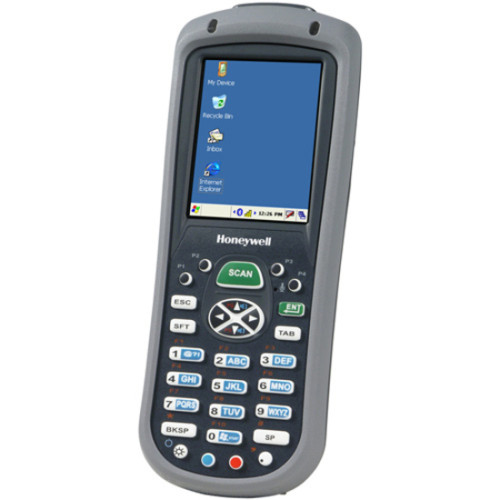

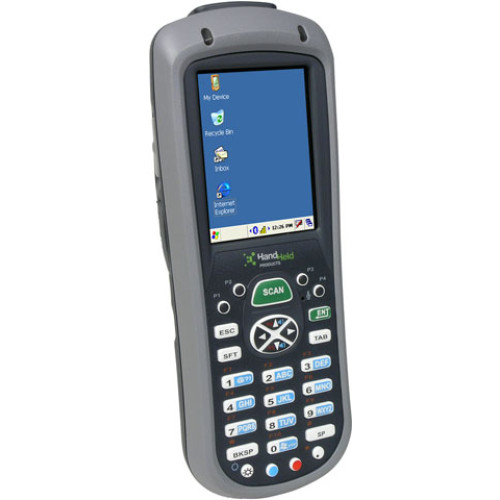

7600BP-112-B6EE - Honeywell 7600 Hand Held Computer

The 7600 is Hand Held Products' most compact mobile computer, offering a range of features and functionality superior to other devices in its class. Its Microsoft Windows CE 5.0 operating system provides a powerful, industry standard platform for developers and users, simplifying integration and ensuring intuitive operation. The integrated 802.11b/g WLAN provides workers continuous real-time network access to mission critical information throughout the enterprise. Its 2.8" VGA color display provides easy viewing and touch screen use. Adaptus Imaging Technology 5.0 reads linear and 2D barcodes and captures digital images, giving you the ability to process and manage more data with a single device than ever before.

Part # Description Availability Price Order
7600BP-112-B6EE 7600, WPAN (Bluetooth) / 5300SR Imager with high-vis aiming pattern / 29 key / 128MB RAM x 128MB Flash / Windows Mobile 6.0
Information:   |  Specifications  |  Honeywell's 7600 page  |
Accessories:   |  Accessories/Options  |  Honeywell 7600 service contract  |

7600BP-112-B6EE Details

Technical Information

  • Scanner Range: Standard Range
  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-12 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification: 60" To Concrete
  • Barcode Symbology Supported:
    • Codabar
    • Code 3 of 9
    • Code 11
    • Code 32
    • Pharmaceutical (PARAF)
    • Code 93
    • Code 128
    • EAN with Add-On
    • EAN with Extended Coupon Code
    • EAN-8
    • EAN-13
    • GS1-128
    • GS1 Databar
    • Interleaved 2 or 5
    • ISBT 128
    • Matrix 2 of 5
    • MSI
    • Plessey
    • PosiCode
    • Straight 2 of 5 IATA
    • Straight 2 of 5 Industrial
    • Telepen
    • Trioptic Code
    • UPC
    • UPC-A
    • UPC-E
    • Aztec
    • Codablock
    • Code 16K
    • Code 49
    • Composite
    • Data Matrix
    • GS1 Databar
    • MaxiCode
    • Micro PDF
    • OCR
    • PDF417
    • QR Code
    • Aztec Mesa
    • Codablock F
    • EAN·UCC
    • GS1 Databar-14
    • OCR-A
    • OCR-B
    • OCR-US Money Font
    • Australian Post
    • British Post
    • Canadian Post
    • China Post
    • Japanese Post
    • KIX (Netherlands) Post
    • Korea Post
    • Planet Code

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: 7600
  • Product Name: Dolphin 7600 Mobile Computer
  • Product Line: Dolphin

Physical Characteristics

  • Height: 7"
  • Width: 2.7"
  • Depth: 1.7"
  • Weight (Approximate): 11.70 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Package Contents:
    • Dolphin 7600 Mobile Computer
    • Battery
    • Dolphin 7600 Mobile Computer
    • Battery
  • Certifications & Standards:
    • IP54
    • CE
    • UL
    • FCC
    • Safety:
    • cUL 60950
    • NOM
    • EN60950
    • BSMI CN14336
    • CCC GB4943
    • PSB
    • SIRIM
    • EMC:
    • FCC Part 15 Class B
    • ICES-003
    • EN301 489-1
    • EN301 489-17
    • EN55022
    • EN55024
    • BSMI CNS13438
    • CCC GB9254
    • MIC
    • AS/NZS 3548
    • FCC Parts 22H & 24H
    • FCC SAR OET 65
    • EN301511
    • RSS-132/133
    • Radio:
    • FCC 15.247
    • RSS-210
    • COFE TEL
    • EN300 328-1
    • EN300 328-2
    • SRRC ETS 300 328
    • IDA
    • SIRIM
    • MIC
    • ARIB STD-T33 & T66
    • AS/NZS 4771
  • Additional Information:
    • Installed Applications:
    • Honeywell Power Tools
    • ITScriptNet Ready-To-Go Applications

Network & Communication

  • Wireless Security:
    • WEP
    • WPA
    • WPA2
    • EAP-TLS
    • TTLS
    • LEAP
    • PEAP
    • WiFi (WPA2)
    • Cisco

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 2.8"
  • Display Color: Color
  • Screen Resolution: 240 x 320

Memory

  • Flash Memory: 128 MB
  • Standard Memory: 128 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: MultiMediaCard (MMC)

Battery Information

  • Battery Capacity: 2200 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Samsung
  • Processor Speed: 400 MHz

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 29

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Mobile 6.0

Touchscreen Information

  • Touchscreen: Yes
Part # Description Availability Price Order
7600-USB-STARTER Honeywell Dolphin 7600 USB Starter Kit. Includes Dolphin 7600 charging/communications cradle and USB communication. (power supply sold separately, 300000713E) Ships Free Today Call for Details
7600-MME Honeywell Dolphin 7600 Mobile Mount Kit: includes vehicle mounting bracket, RAM mount and hardware for securing the bracket to the RAM mount. Non-Cancelable/Non-Returnable. Ships Free Today $90.95
Retail $107
Save 14%
7600 COVER E Honeywell Dolphin 7600 protective enclosure with button for belt clip. Non-Cancelable/Non-Returnable. Ships Free Today $28.90
Retail $34
Save 15%
TSP-US-MC-3 Barcodes True Support Contract 3-year, True Support contract 5-year - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $60 per year for 3 years, billed annually. Ships Free Today $60.00
TSP-US-MC-1 Barcodes True Support Contract 1-year, - Mobile Computers Includes Tier 1 and Tier 2 Technical Helpdesk Support 7: 30am-cst-5: 00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. Ships Free Today $84.00
SVC7600-W Honeywell Service Contracts - 1 year, 7600 Extended Warranty Ships Free Today $70.00
Why don't we show the price?
SVC7600-SMS5 Honeywell Service Plans, 7600, Service Made Simple 3-day turnaround, Comprehensive coverage Ships Free Today $515.00
Why don't we show the price?

The Honeywell 7600BP-112-B6EE is also known as HHP-7600BP-112-B6EE or 7600BP112B6EE .

Honeywell Scanning and & Mobility is a leader in AIDC and the new home for many products formerly available from Hand-Held and Metrologic.
