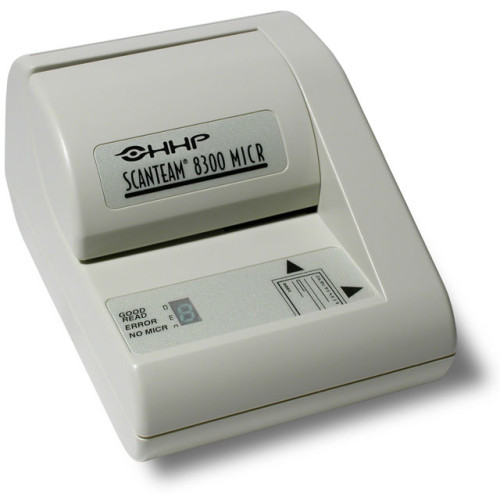

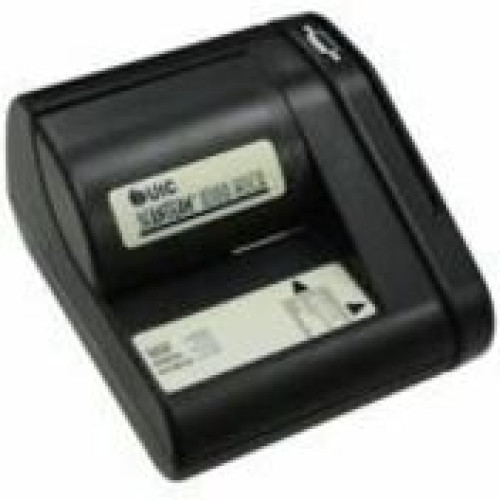

8300-2112 - Honeywell ScanTeam 8300 MICR MICR Check Scanner

The ScanTeam 8300 MICR product line is a family of check reader products with various interface and decoding capabilities. All versions utilize a magnetic MICR read head and include a host system interface port. Versions of the product are available which support the direct connection to POS terminal I-O Ports integrated bar coded document reading numerous keyboard wedge interfaces handheld scanner decoding integrated magnetic stripe reader and auxiliary RS-232 I-O ports. All ScanTeam 8300 MICR products contain FLASH memory which allows for easy firmware upgrades in the field without the need to disassemble the product. The ScanTeam 8300 MICR products provide multiple options in meeting the data capture needs of retail and financial transaction systems. The ScanTeam 8300 MICR may be ordered with options which provide an integrated triple track mag stripe reader a bar code scanner port and two RS-232 ports for future peripherals such as PIN Pads or a Signature Capture Pad. The ScanTeam 8300 MICR is compatible with hundreds of POS and teller systems through the built in interface-wedge controller. The ScanTeam 8300 MICR typically operates from +5 volt or +12 volt power from the host device and does not require external power pack or connector blocks.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
8300-2112 ScanTeam 8300 MICR, MICR Check Reader, Non-IBM, Commercial 1 RS-232 Auxiliary Port, 1 & 2 MSR
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |

8300-2112 Details

Technical Information

  • MICR Fonts Supported:
    • E13-B
    • CMC-7
  • Input Voltage: 5 V DC
  • Interface Options: RS-232 Auxiliary Port

General Information

Physical Characteristics

  • Dimensions:
    • 3.4" (86mm) x 4.08" (104mm) x 5.75" (146mm)
    • 3.4" (86mm) x 4.08" (104mm) x x 5.75" (146mm)
  • Weight: 1.25 lb (0.57 kg)

Other

  • Additional Information:
    • MICR Fonts Supported: Auto Discrimination
    • Included Feature: Magnetic Stripe Reader Tracks 1/2
    • Check Reading: Check Read/Decode/Transmit Time: 2 seconds with 99% first pass good read rate, 99.9% second pass good read rate
    • With Motor On: 385mA (Typical Average)
    • With Motor Off:125mA (Typical)
    • Wall Mount Power Pack
    • Wall Mounting Plate
    • MICR Programming Checks
    • MICR Head Cleaning Cards
    • Mag Stripe Cleaning Cards
    • PC Windows-based Programming Utility, Quick Load Interface
    • General Data Formatter: MSR, barcode, and RS-232 data can be uniquely formatted by the ST8300 before being sent to the host
    • MICR Data: Every ST8300 contains a user-selectable table of common MICR data output formats
    • MICR Exception Table: The ST8300 includes programmable parsing rules. Parsing rules for new checks can be added in the field

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 122°F (50°C) Operating
    • 0°F (-18°C) to 140°F (60°C) Storage
  • Humidity: 95% Non-condensing

Agency Approvals

  • Agency Approvals:
    • FCC Class A
    • CE: EMC 89/336/EEC

Warranty

  • Manufacturer Warranty: 2 Year(s)

The Honeywell 8300-2112 is also known as HHP-8300-2112 or 83002112 .
