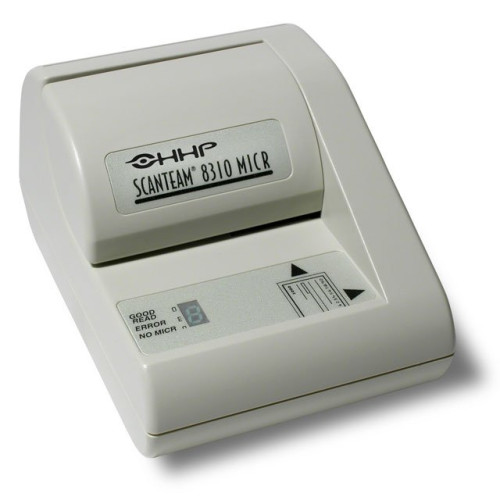

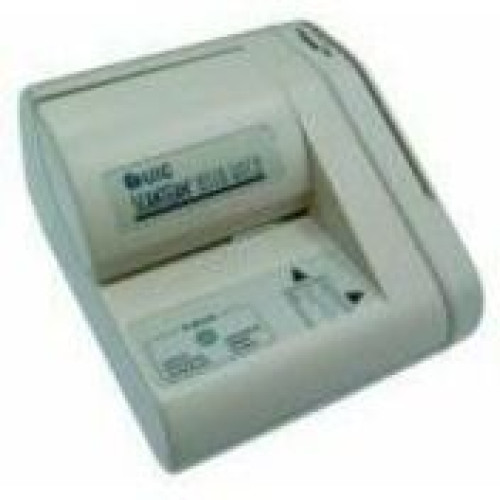

8310-20 - Honeywell ScanTeam 8310 MICR MICR Check Scanner

The ScanTeam 8310 MICR is the reduced feature set member of the SCANTEAM 8300 family of check reader products. All ScanTeam 8310 MICR products contain FLASH memory which allows for easy firmware upgrades in the field without the need to disassemble the product and a magnetic read head for MICR data capture. The ScanTeam 8310 MICR contains communications support for traditional PC COM ports for PC-POS applications many PC and video terminal keyboards in a keyboard wedge mode as well as support for communications with many Credit Authorization Terminals including HypercomTM Data CardTM Verifone TranzTM and ZONTM series products.

We respond to every email
Part # Description Availability Price Order
8310-20 ScanTeam 8310 MICR, RS-232 & Keyboard wedge interfaces. Order cables, programming checks & power supply separately. See accessories.
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |

8310-20 Details

Technical Information

  • MICR Fonts Supported:
    • E13-B
    • CMC-7
  • Input Voltage: 5 V DC
  • Interface Options:
    • PS/2 Keyboard Wedge
    • Serial - True RS-232 Signal Levels

General Information

  • Manufacturer: Hand Held Products
  • Product Line: SCANTEAM
  • Product Name: ScanTeam 8310 MICR Check Reader

Physical Characteristics

  • Dimensions: 4.3" (109mm) x 4.08" (104mm) x 5.75" (146mm)
  • Weight: 1.25 lb (0.57 kg)


  • Additional Information:
    • Fonts Supported: Auto Discrimination
    • With Motor On: 385mA (typical average)
    • With Motor Off: 125mA (typical)
    • Wall mount power packs
    • Host Interface cables
    • ST8310 wall mount kit
    • MICR head cleaning checks
    • MICR programming checks
    • PC Windows based programming utility, Quick Load
    • Output Formats: Every ST8310 contains a user selectable table of common MICR data output formats
    • Data Editor: The output data can be uniquely edited by the ST8310 data editor to add or delete characters, including prefix and suffix characters

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 122°F (50°C) Operating
    • 0°F (-18°C) to 140°F (60°C) Storage
  • Humidity: 95% Non-condensing

Agency Approvals

  • Agency Approvals: FCC Class A Complies with EMC 89/336/EEC and LVD 73/23/EEC


  • Manufacturer Warranty: 1 Year(s)

The Honeywell 8310-20 is also known as HHP-8310-20 or 831020 .

Honeywell Scanning and & Mobility is a leader in AIDC and the new home for many products formerly available from Hand-Held and Metrologic.
