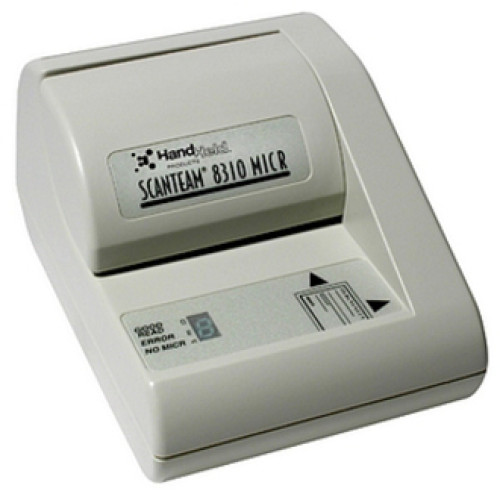

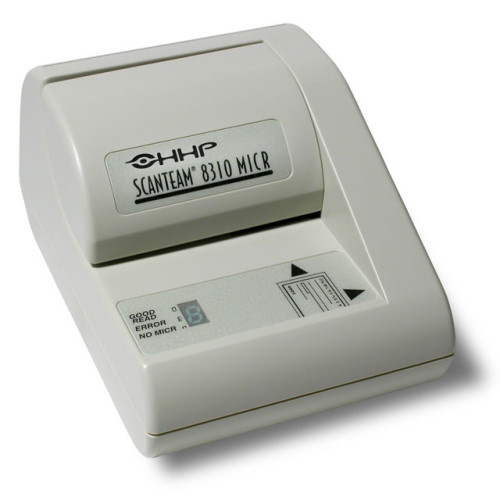

8310-22 - Honeywell ScanTeam 8310 MICR MICR Check Scanner

The ScanTeam 8310 MICR is the reduced feature set member of the SCANTEAM 8300 family of check reader products. All ScanTeam 8310 MICR products contain FLASH memory which allows for easy firmware upgrades in the field without the need to disassemble the product and a magnetic read head for MICR data capture. The ScanTeam 8310 MICR contains communications support for traditional PC COM ports for PC-POS applications many PC and video terminal keyboards in a keyboard wedge mode as well as support for communications with many Credit Authorization Terminals including HypercomTM Data CardTM Verifone TranzTM and ZONTM series products.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
8310-22 ScanTeam 8310 MICR, Keyboard wedge/RS-232, Tracks 1 and 2 MSR, Requires cable and program checks
Information:   |  Specifications  |
Accessories:   |  Accessories/Options  |

8310-22 Details

Technical Information

  • MICR Font Supported:
    • CMC-7
    • E13-B
  • Magnetic Stripe Track Configuration: Dual Track
  • Magnetic Stripe Track Number:
    • Track 1
    • Track 2

General Information

  • Product Type: Check Reader
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: ST8310
  • Product Name: ST8310 MICR Check Reader
  • Product Line: SCANTEAM

Physical Characteristics

  • Height: 3.4"
  • Width: 4.7"
  • Depth: 5.8"
  • Color: White
  • Weight (Approximate): 1.25 lb

Interfaces/Ports

  • Interfaces/Ports:
    • Keyboard Wedge
    • RS-232 Serial

Other

  • Certifications & Standards:
    • FCC Class A
    • EMC 89/336/EEC
    • LVD 73/23/EEC

Environmental Conditions

  • Humidity: 95% Non-condensing
  • Temperature:
    • 32°F (0°C) to 122°F (50°C) Operating
    • -0.4°F (-18°C) to 140°F (60°C) Storage

Power Description

  • Input Voltage Range: 7 V DC to 13.5 V DC
  • Input Voltage: 5 V DC

Warranty

  • Limited Warranty: 1 Year

The Honeywell 8310-22 is also known as 8310-22 or 831022 .

Honeywell Scanning and & Mobility is a leader in AIDC and the new home for many products formerly available from Hand-Held and Metrologic.
