Photo of Honeywell MK7120-31A38 Honeywell logo

Honeywell 7120 Orbit

USB kit, 1D Laser, Omnidirectional. Includes 9.2' straight USB cable. Color: Black.


Free Shipping

Ships Today

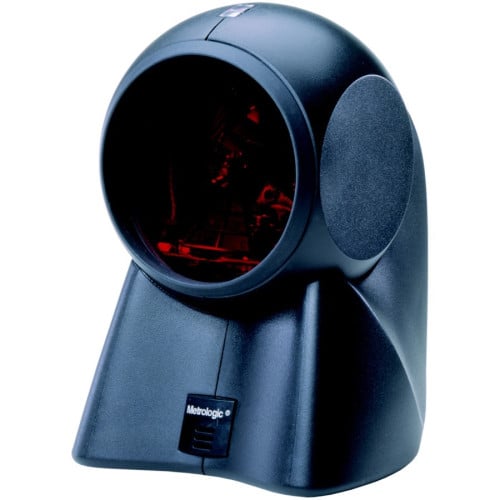

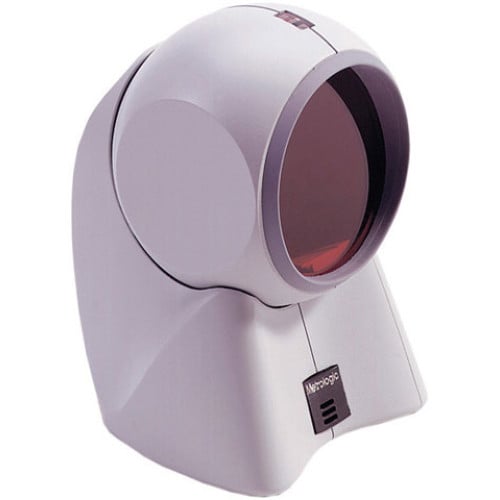

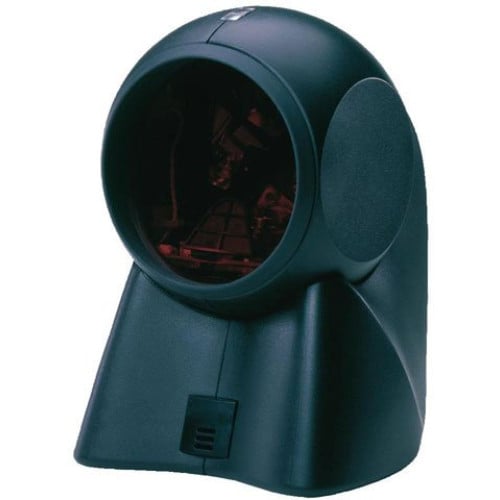

Honeywell MS7120 ORBIT Scanner

Designed for applications where counter space is at a premium MS7120 ORBIT is the ideal Presentation Scanner for retail convenience liquor and specialty stores. In addition MS7120 ORBIT's unique contoured shape allows it to be picked up and used as a handheld when scanning large or bulky items. Engineered with a large easy-to-find sweet spot MS7120 ORBIT increases first pass read rate for maximum productivity. The scanning head can be tilted vertically a full 30% for added flexibility when scanning various sized objects. MS7120 ORBIT has a patented 20-line omnidirectional scan pattern that produces 1200 scan lines per second. These features increase the scanning through-put without increasing MS7120 ORBIT's size. MS7120 ORBIT is engineered for easy configuration and utilizes user-replaceable cables in order to meet the multiple application needs across the many markets it serves. Data editing or parsing is also a standard feature. Parsing enables the encoded information to be manipulated to meet the host system's requirements.

Full specifications (PDF)

Manufacturer part number: MK7120-31A38

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Single Line/ Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported: Reads standard 1D and GS1 DataBar symbologies
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 0 mil - 2"@5.20 mil
    • 0 mil - 5.90"@7.50 mil
    • 0 mil - 6.90"@10 mil
    • 0 mil - 8.50"@13 mil
    • 0 mil - 9.80"@26 mil

General Information

  • Product Type: Desktop Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS7120-38-3
  • Product Name: Orbit 7120 Omnidirectional Laser Scanner
  • Product Line: Orbit

Physical Characteristics

  • Height: 5.9"
  • Width: 4"
  • Color: Black
  • Length: 4.1"
  • Weight (Approximate): 14.10 oz


  • Host Interface: USB


  • Certifications & Standards:
    • Laser Class 1:
    • EN: 60825-1:1994+A11:1996+A2:2001
    • EMC:
    • Class B: FCC Part 15
    • ICES-003
    • EN 55022 Class B
  • Additional Information: Supported Interface: USB


  • Limited Warranty: 2 Year

Power Description

  • Input Voltage: 5 V DC
