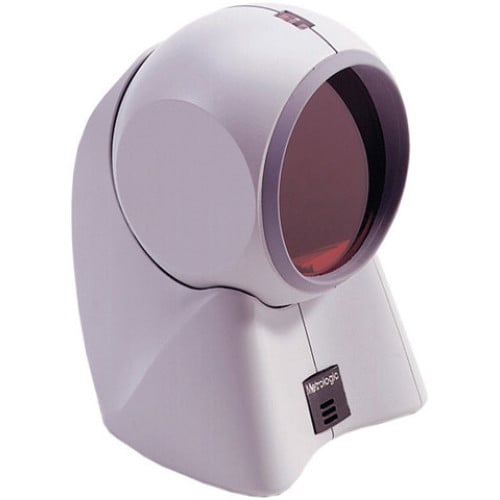

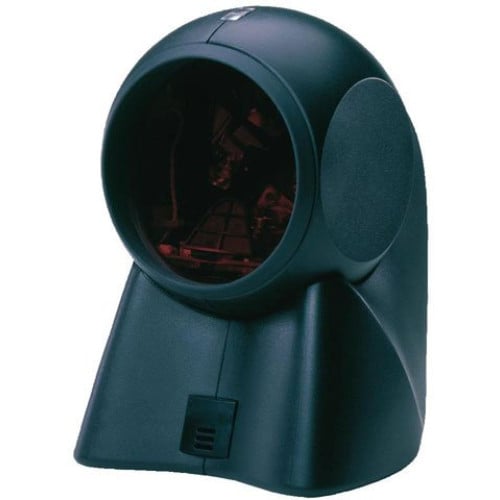

MK7120-31A62 - Honeywell MS7120 ORBIT Bar code Scanner

Designed for applications where counter space is at a premium MS7120 ORBIT is the ideal Presentation Scanner for retail convenience liquor and specialty stores. In addition MS7120 ORBIT's unique contoured shape allows it to be picked up and used as a handheld when scanning large or bulky items. Engineered with a large easy-to-find sweet spot MS7120 ORBIT increases first pass read rate for maximum productivity. The scanning head can be tilted vertically a full 30% for added flexibility when scanning various sized objects. MS7120 ORBIT has a patented 20-line omnidirectional scan pattern that produces 1200 scan lines per second. These features increase the scanning through-put without increasing MS7120 ORBIT's size. MS7120 ORBIT is engineered for easy configuration and utilizes user-replaceable cables in order to meet the multiple application needs across the many markets it serves. Data editing or parsing is also a standard feature. Parsing enables the encoded information to be manipulated to meet the host system's requirements.

Questions?
1-888-875-7170
We respond to every email
Part # Description Availability Price Order
MK7120-31A62 7120 Orbit, Verifone Ruby kit, 1D Laser, Omnidirectional. Includes 10.7' coiled RJ45 Verifone Ruby cable (Part# MVC-3MPS-VR). Color: Black. Ships Free Today $219.94
Retail $352
Save 37%
Information:   |  Specifications  |  Honeywell's MS7120 ORBIT page  |
Accessories:   |  Accessories/Options  |  Honeywell MS7120 ORBIT service contract  |

MK7120-31A62 Details

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • All Standard Symbologies
    • RSS
    • All Standard Symbologies
    • RSS
  • Maximum Scan Resolution: 5.20 mil
  • Depth of Field: 0 mil - 8.50"@13 mil

General Information

  • Product Type: Desktop Barcode Scanner
  • Brand Name: Honeywell
  • Manufacturer: Honeywell International, Inc
  • Product Model: MS7120
  • Product Name: Orbit MS7120 Barcode Reader
  • Product Line: Orbit

Physical Characteristics

  • Height: 5.9"
  • Width: 4"
  • Depth: 4.1"
  • Color: Black
  • Weight (Approximate): 14.46 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • Orbit MS7120 Barcode Reader
    • Straight 8-pos RJ45 Connector Cable
    • Manual
    • Mnt
    • MVC
    • Orbit MS7120 Barcode Reader
    • Straight 8-pos RJ45 Connector Cable
    • Manual
    • Mnt
    • MVC
  • Certifications & Standards:
    • Laser Class:
    • CDRH: Class IIa
    • EN60825-1:1994/A11:1996 Class 1
    • EMC:
    • Class B: FCC Part 15
    • ICES-003
    • European Union EMC
  • Additional Information:
    • Supported Interfaces:
    • PC Keyboard Wedge
    • RS232
    • IBM 468X/469X

Warranty

  • Limited Warranty: 2 Year
Part # Description Availability Price Order
45-45619 Metrologic Mounting plate for 7120 Orbit
Ships Free in 3-5 Days
$20.10
TSP-US-SC-3 BCI Service Contracts, True Support Contract 3-year - Scanners Includes Tier 1 and Tier 2 Technical Helpdesk Support 7:30am-cst-5:00pm-cst, RMA Triage, OEM Service Contract management, Pre/post repair inspection and image loading. $48 per year for 3 years, billed annually.
Ships Free in 3-5 Days
$48.00
SVC7120-5WT3 Honeywell Service Contracts, 7120, Wear & Tear only, 5 Day Turn, 3 year DayOne
Ships Free in 3-5 Days
$34.45
Retail $39
Save 11%

The Honeywell MK7120-31A62 is also known as MET-7120-41RUBY or MK712031A62 .

Honeywell Scanning and & Mobility is a leader in AIDC and the new home for many products formerly available from Hand-Held and Metrologic.
